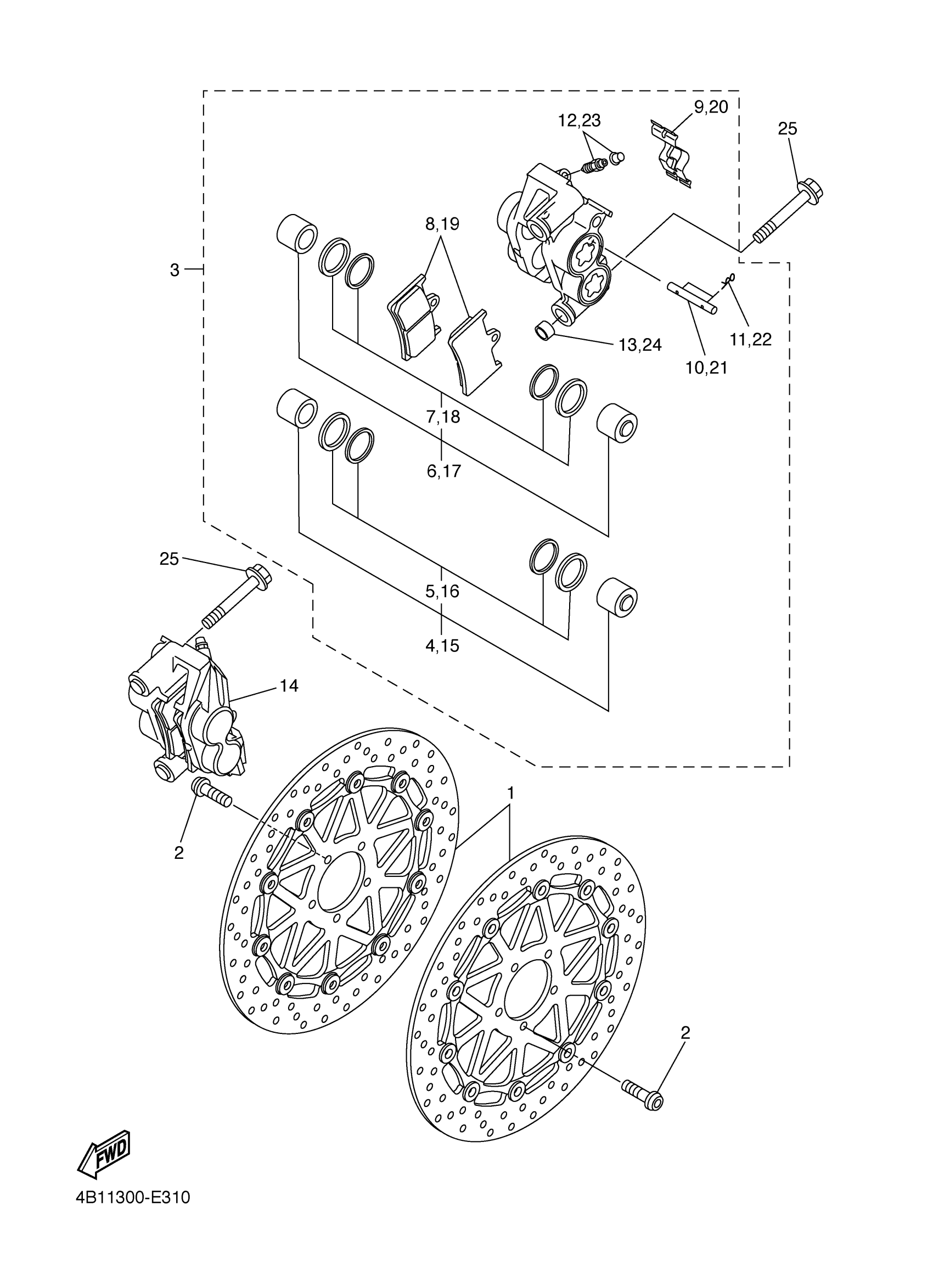

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASSY

4B1-2581T-00-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-08057-00

$1.91

3

CALIPER ASSY (LEFT)

4B1-2580T-00-00

Unavailable

4

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

5

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

6

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

7

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

8

BRAKE PAD KIT

5VY-W0045-00-00

$46.67

9

SUPPORT, PAD

4SV-25919-00-00

$20.59

10

PIN, PAD

4SV-25924-00-00

$34.81

11

CLIP, PAD PIN

3GM-25925-00-00

$9.15

12

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

13

PIN, KNOCK

5VY-2583B-00-00

Unavailable

14

CALIPER ASSY (RIGHT)

4B1-2580U-00-00

Unavailable

15

PISTON ASSY, CALIP

5PW-25802-00-00

$80.55

16

CALIPER SEAL KIT

5PW-25803-00-00

$13.97

17

PISTON ASSY, CALIP

5PW-25802-10-00

$90.70

18

CALIPER SEAL KIT

5PW-25803-10-00

$14.23

19

BRAKE PAD KIT

5VY-W0045-00-00

$46.67

20

SUPPORT, PAD

4SV-25919-00-00

$20.59

21

PIN, PAD

4SV-25924-00-00

$34.81

22

CLIP, PAD PIN

3GM-25925-00-00

$9.15

23

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

24

PIN, KNOCK

5VY-2583B-00-00

Unavailable

25

BOLT, UNION

90401-10012-00

Unavailable
