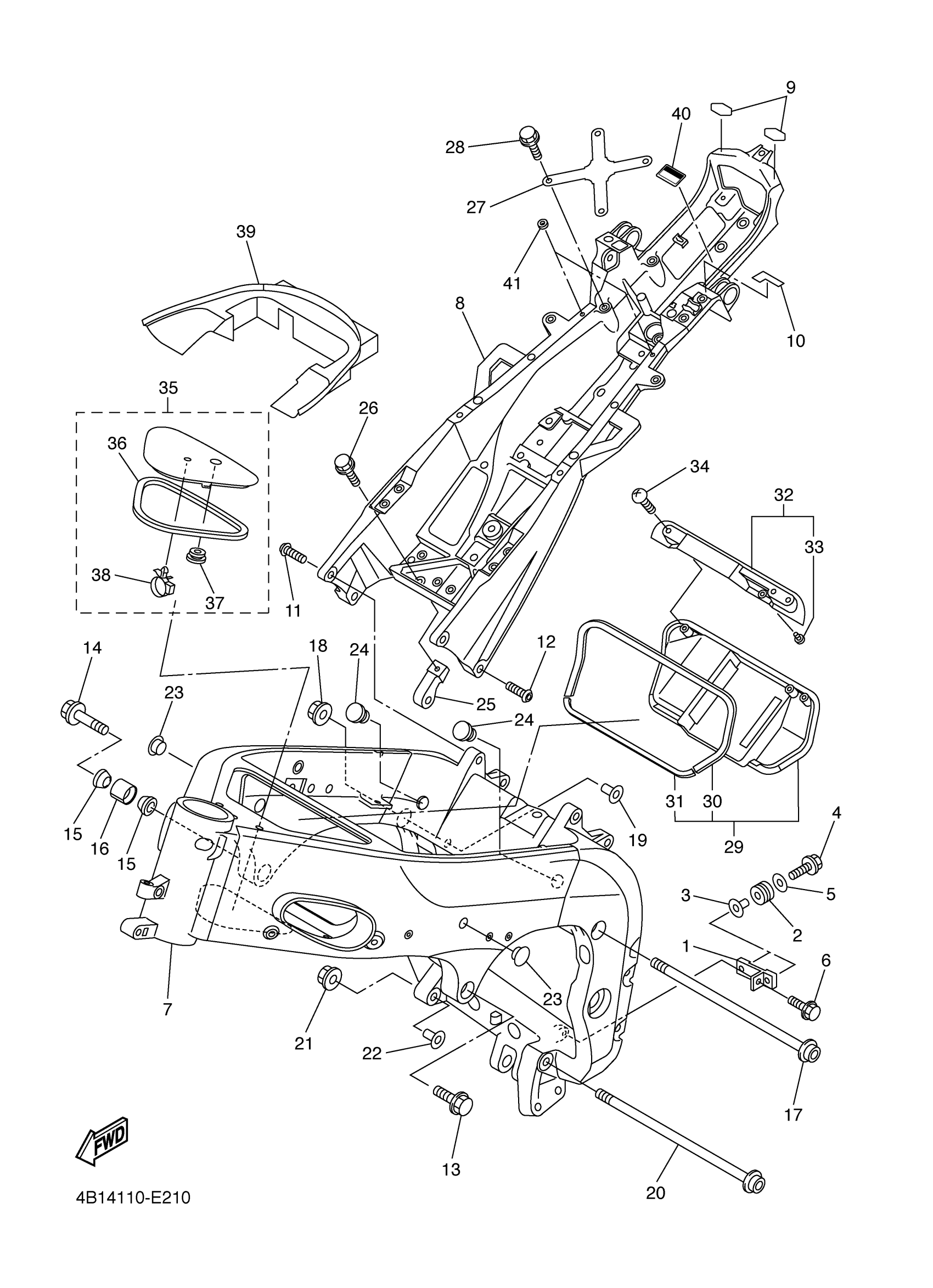

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 FRAME Diagram
#
1
BRACKET 7
5VY-2116J-00-00
Unavailable
2
GROMMET
90480-14005-00
Unavailable
5
WASHER, PLATE
90201-06M31-00
Unavailable
7
FRAME COMP.
5VY-21110-20-P0
Unavailable
7
FRAME COMP.
5VY-21110-30-P0
Unavailable
8
REAR FRAME COMP.
5VY-21190-00-00
Unavailable
9
SEAL
5VY-21268-00-00
Unavailable
10
SEAL
5VY-21269-00-00
Unavailable
11
SCREW
90149-10016-00
Unavailable
15
BOSS, ENGINE MOUNT
4B1-21414-00-00
Unavailable
16
BOSS, ENGINE MOUNT
4B1-21424-00-00
Unavailable
17
BOLT, HEXAGON SOCKET HEAD
90110-10005-00
Unavailable
18
NUT
90179-10696-00
Unavailable
19
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-10005-00
Unavailable
21
NUT
90179-10696-00
Unavailable
22
BOLT, ENGINE ADJUSTING
4C8-21495-00-00
Unavailable
23
PLUG
90338-15004-00
Unavailable
24
PLUG
90338-23004-00
Unavailable
25
BRACKET, MUFFLER 1
5VY-21435-00-00
Unavailable
26
BOLT
90109-06056-00
Unavailable
27
BRACKET
5VY-21131-00-00
Unavailable
28
BOLT, FLANGE
95817-06016-00
Unavailable
29
COVER ASSY
5VY-2110M-00-00
Unavailable
30
DAMPER
5VY-2174X-00-00
Unavailable
31
. DAMPER
5VY-21746-00-00
Unavailable
32
COVER PLATE COMP.
5VY-2131P-00-00
Unavailable
33
PLUG(1NL)
90338-07180-00
Unavailable
34
SCREW, TAPPING
90167-05080-00
Unavailable
35
COVER ASSY
5VY-2110M-10-00
Unavailable
36
DAMPER
5VY-2174X-00-00
Unavailable
37
. GROMMET
90480-01333-00
Unavailable
38
CLAMP
90464-16006-00
Unavailable
39
COVER 4
5VY-2117R-00-00
Unavailable
40
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
41
DAMPER
5SL-84753-00-00
Unavailable
