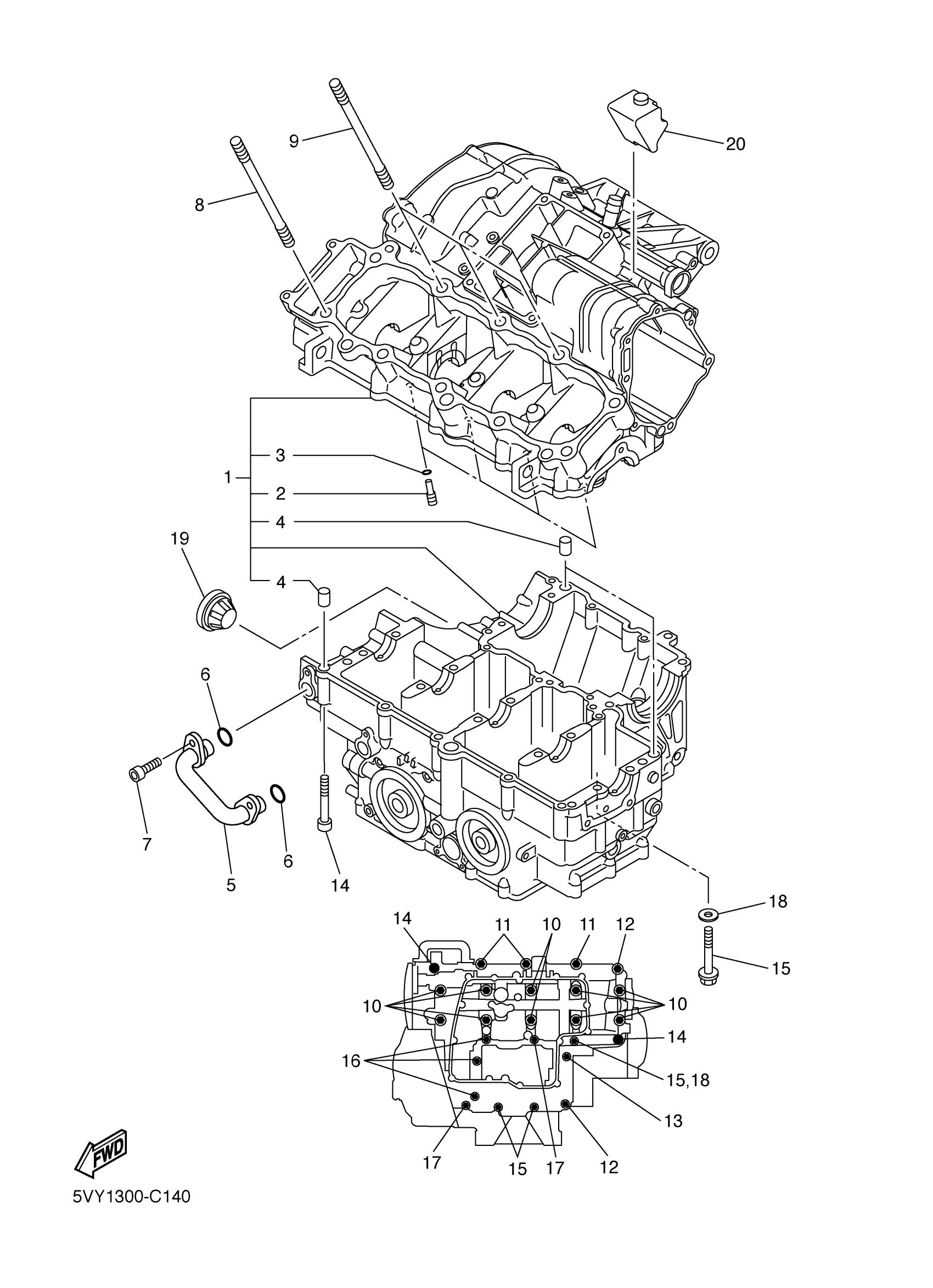

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY SET

99999-03617-00

Unavailable

2

NOZZLE 3

5EB-15155-00-00

$14.49

3

O-RING (210)

93210-04092-00

$3.76

4

PIN, DOWEL(3VD)

99530-10114-00

$2.55

5

PIPE, OIL 2

5VY-13418-11-00

Unavailable

6

O-RING

93210-14003-00

$8.49

7

BOLT,SOCKET

91317-06016-00

$1.25

8

BOLT, STUD

90116-10020-00

Unavailable

9

BOLT, STUD

90116-10023-00

$24.99

10

BOLT, WITH WASHER

90119-09012-00

Unavailable

11

BOLT, FLANGE

95817-08050-00

$2.44

12

BOLT, FLANGE

95817-08060-00

$3.76

13

BOLT, FLANGE

95817-08060-00

$3.76

14

BOLT

90109-06100-00

$8.49

15

BOLT, FLANGE

95812-06060-00

$3.23

16

BOLT, FLANGE

95812-06070-00

Unavailable

17

BOLT, FLANGE

95812-06050-00

Unavailable

18

GASKET (4V2)

90430-06166-00

Unavailable

19

GAUGE, LEVEL

5PW-15361-00-00

Unavailable

20

DAMPER, ENGINE MOUNT 1

5VY-15316-00-00

Unavailable
