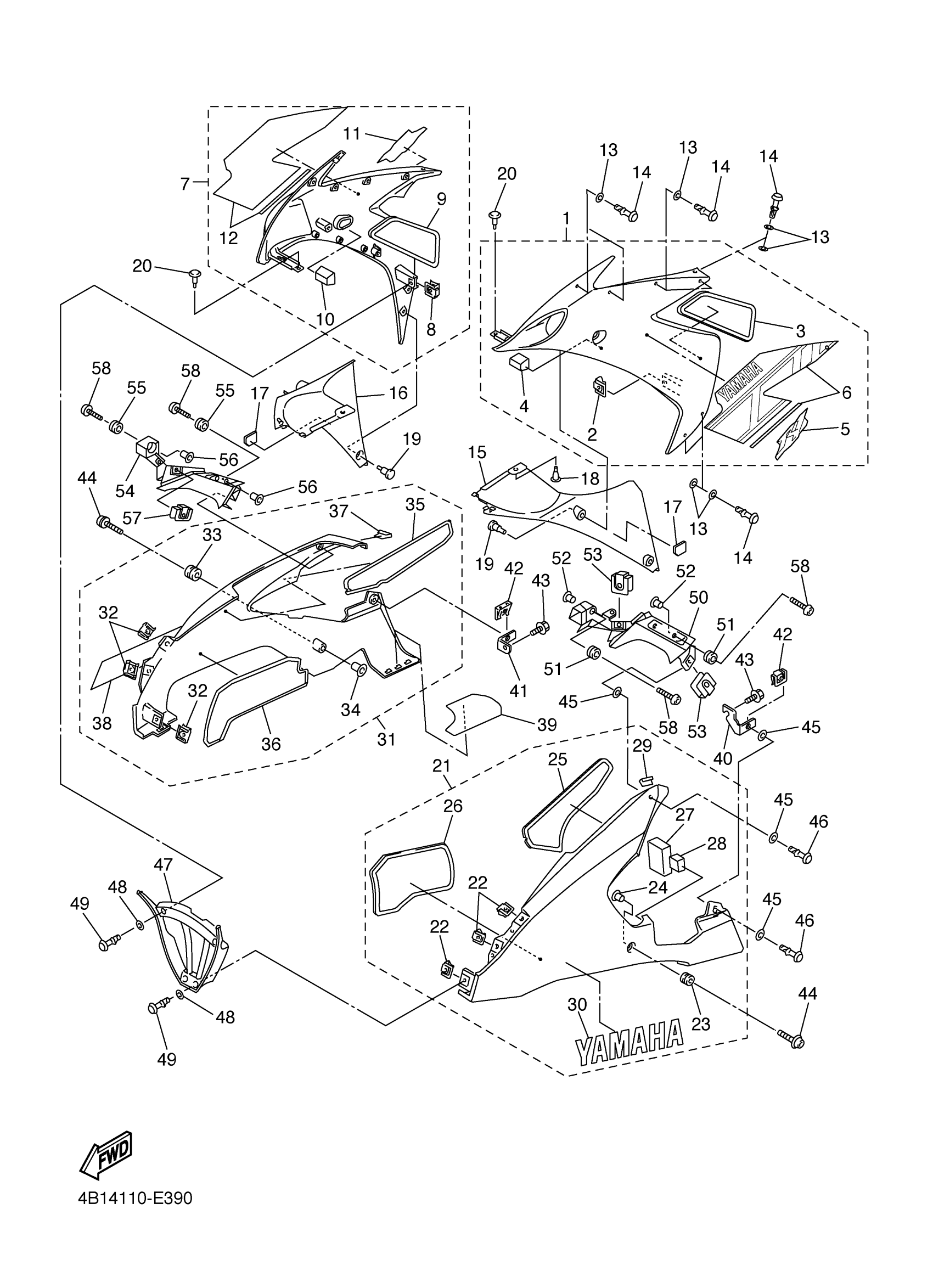

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSY 1

5VY-W283U-80-0X

Unavailable

2

PLATE, SPRING

5PW-2177L-01-00

$6.99

3

. SEAT

5VY-2848H-00-00

Unavailable

4

STAY 2

5VY-28322-00-00

$18.49

5

. EMBLEM 1 (REDDISH YELLOW COCKTAIL 1)

5VY-2834C-50-00

Unavailable

6

GRAPHIC SET

5VY-283B1-10-00

Unavailable

7

PANEL ASSEMBLY 2 (REDDISH YELLOW COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)

5VY-Y283V-80-0X

Unavailable

8

PLATE, SPRING

5PW-2177L-01-00

$6.99

9

. SEAT 2

5VY-2848K-00-00

Unavailable

10

. STAY, LEG SHIELD

5VY-28332-00-00

Unavailable

11

. EMBLEM 2 (REDDISH YELLOW COCKTAIL 1)

5VY-2835C-50-00

Unavailable

12

. GRAPHIC SET (REDDISH YELLOW COCKTAIL 1)

5VY-283B2-10-00

Unavailable

13

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

14

HEAD

5PW-28386-00-00

$17.49

15

PANEL, INNER 1

5VY-2836K-00-00

$55.99

16

PANEL, INNER 2

5VY-2836L-00-00

Unavailable

17

HOOK 3

5VY-28494-00-00

Unavailable

18

RIVET(4PH)

90269-07077-00

Unavailable

19

RIVET

90269-06081-00

Unavailable

20

RIVET(4PH)

90269-07077-00

Unavailable

21

COVER ASSY, UNDER (YAMAHA BLACK) (REDDISH YELLOW COCKTAIL 1)

5VY-Y2808-20-33

Unavailable

22

PLATE, SPRING

5PW-2177L-01-00

$6.99

23

GROMMET(4FM)

90480-12596-00

Unavailable

24

COLLAR

90387-06159-00

Unavailable

25

. SEAT 3

5VY-2848L-00-00

Unavailable

26

SEAT 5

5VY-2848N-00-00

Unavailable

27

DAMPER 5

5VY-2837J-00-00

Unavailable

28

DAMPER 6

5VY-2837K-00-00

Unavailable

29

SEAL

5VY-28307-00-00

Unavailable

30

EMBLEM, YAMAHA

5JJ-2153E-00-00

Unavailable

31

COVER ASSY 2, UNDER (YAMAHA BLACK) (REDDISH YELLOW COCKTAIL 1)

5VY-Y2809-20-33

Unavailable

32

PLATE, SPRING

5PW-2177L-01-00

$6.99

33

GROMMET(4FM)

90480-12596-00

Unavailable

34

COLLAR

90387-06159-00

Unavailable

35

. SEAT 4

5VY-2848M-00-00

Unavailable

36

. SEAT 6

5VY-2848P-00-00

Unavailable

37

SEAL

5VY-28307-00-00

Unavailable

38

EMBLEM, YAMAHA

5JJ-2153E-00-00

Unavailable

39

SEAT 7

5VY-2848R-00-00

Unavailable

40

BRACKET 1

5VY-2836A-00-00

Unavailable

41

BRACKET 2

5VY-2836E-00-00

Unavailable

42

PLATE, SPRING

5PW-2177L-01-00

$6.99

43

BOLT

90109-06056-00

Unavailable

44

SCREW(4DN)

90149-06302-00

Unavailable

45

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

46

HEAD

5PW-28386-00-00

$17.49

47

PANEL, INNER 3

5VY-2836M-00-00

Unavailable

48

WASHER, SPECIAL 1

2TK-21757-00-00

$3.38

49

HEAD

5PW-28386-00-00

$17.49

50

COVER 7

5VY-2117V-00-00

Unavailable

51

GROMMET(4FM)

90480-12596-00

Unavailable

52

COLLAR

90387-06159-00

Unavailable

53

PLATE, SPRING

5PW-2177L-01-00

$6.99

54

COVER 8

5VY-2117W-00-00

Unavailable

55

GROMMET(4FM)

90480-12596-00

Unavailable

56

COLLAR

90387-06159-00

Unavailable

57

PLATE, SPRING

5PW-2177L-01-00

$6.99

58

BOLT

90111-06030-00

Unavailable
