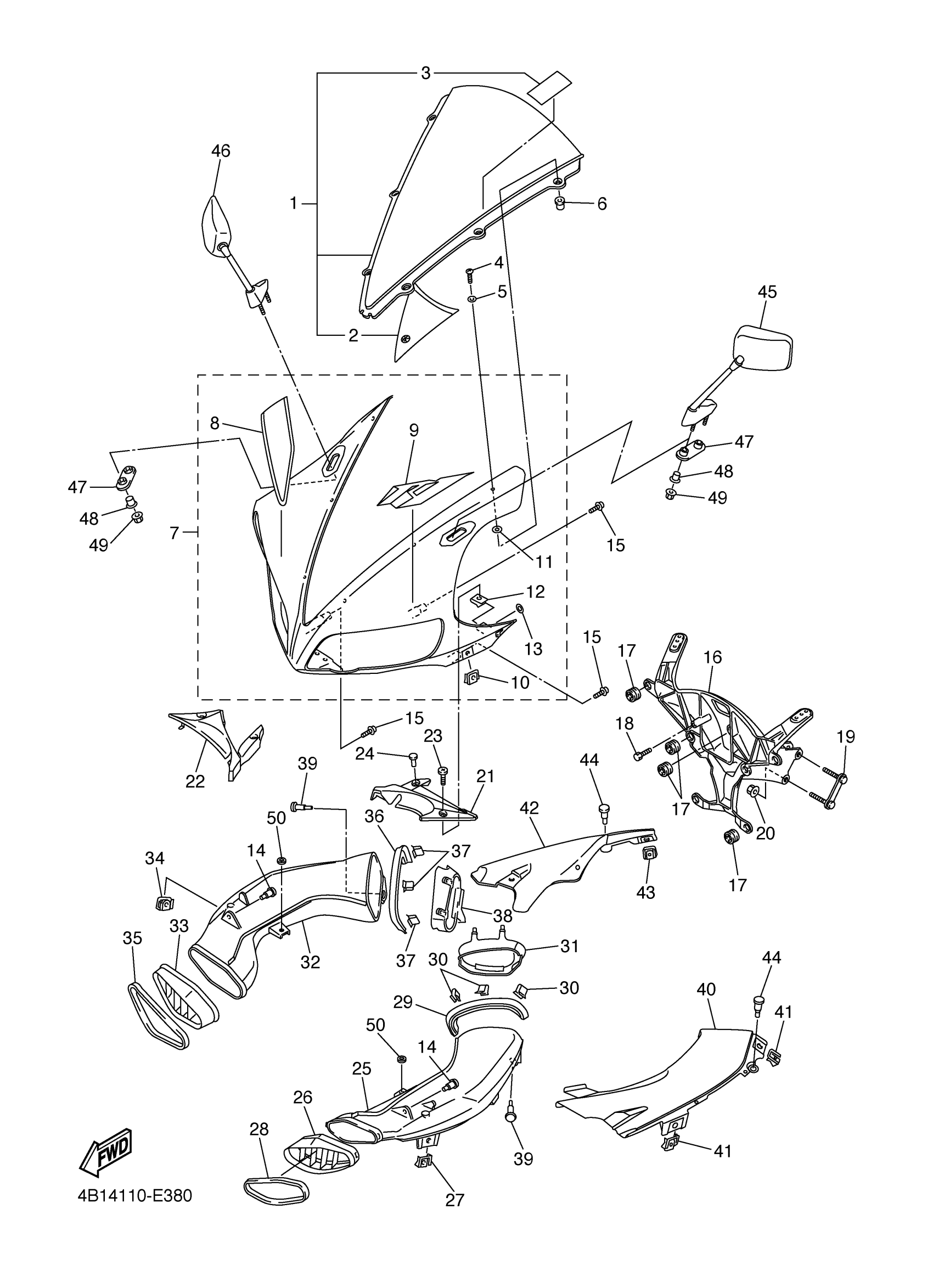

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 COWLING 1 Diagram
#
1
WINDSHIELD
5VY-Y2881-11-00
Unavailable
2
. GRAPHIC 18
5VY-2832P-00-00
Unavailable
3
LABEL, CAUTION
5JW-2835Y-00-00
Unavailable
5
WASHER, PLATE (5F9)
90202-05123-00
Unavailable
8
GRAPHIC 13
5VY-2832L-00-00
Unavailable
9
. EMBLEM
5VY-28315-00-00
Unavailable
12
NUT, SPRING(3YX)
90183-05074-00
Unavailable
16
STAY 1
5VY-28356-00-00
Unavailable
17
DAMPER
4XV-83513-00-00
Unavailable
18
BOLT, SOCKET
91317-05012-00
Unavailable
19
PLATE
4XV-28336-00-00
Unavailable
20
NUT, SELF-LOCKING
90185-08169-00
Unavailable
21
PANEL, CONSOLE 1
5VY-2837L-01-00
Unavailable
22
PANEL, CONSOLE 2
5VY-2837M-01-00
Unavailable
23
SCREW, BINDING (10V)
90154-05013-00
Unavailable
24
RIVET
90269-06001-00
Unavailable
25
DUCT 1 (DEEP PURPLISH BLUE METALLIC C) (DEEP RED METALLIC K)
5VY-2838N-00-P0
Unavailable
26
GRILL, AIR INTAKE 1
5VY-2837N-00-00
Unavailable
28
MOLE 2
5VY-28346-00-00
Unavailable
29
DAMPER 1
5VY-2834E-00-00
Unavailable
30
GUIDE
1FK-2171H-00-00
Unavailable
31
DAMPER
5VY-28371-00-00
Unavailable
32
DUCT 2
5VY-2838R-00-P0
Unavailable
33
GRILL, AIR INTAKE 2
5VY-2837R-00-00
Unavailable
35
MOLE 2
5VY-28346-00-00
Unavailable
36
DAMPER
5VY-2834F-00-00
Unavailable
37
GUIDE
1FK-2171H-00-00
Unavailable
38
DAMPER
5VY-28372-00-00
Unavailable
40
GRILL, AIR OUTLET 1
5VY-2837V-00-00
Unavailable
42
GRILL, AIR OUTLET 2
5VY-2837W-00-00
Unavailable
44
RIVET
90269-06081-00
Unavailable
45
REAR VIEW MIRROR ASSY (LEFT)
5VY-26280-00-00
Unavailable
46
REAR VIEW MIRROR ASSY (RIGHT)
5VY-26290-00-00
Unavailable
47
PLATE, MIRROR FITTING 1
5VY-26298-00-00
Unavailable
48
COLLAR
90387-06106-00
Unavailable
49
NUT, CROWN(1FN)
90176-06055-00
Unavailable
50
DAMPER
5SL-84753-00-00
Unavailable
