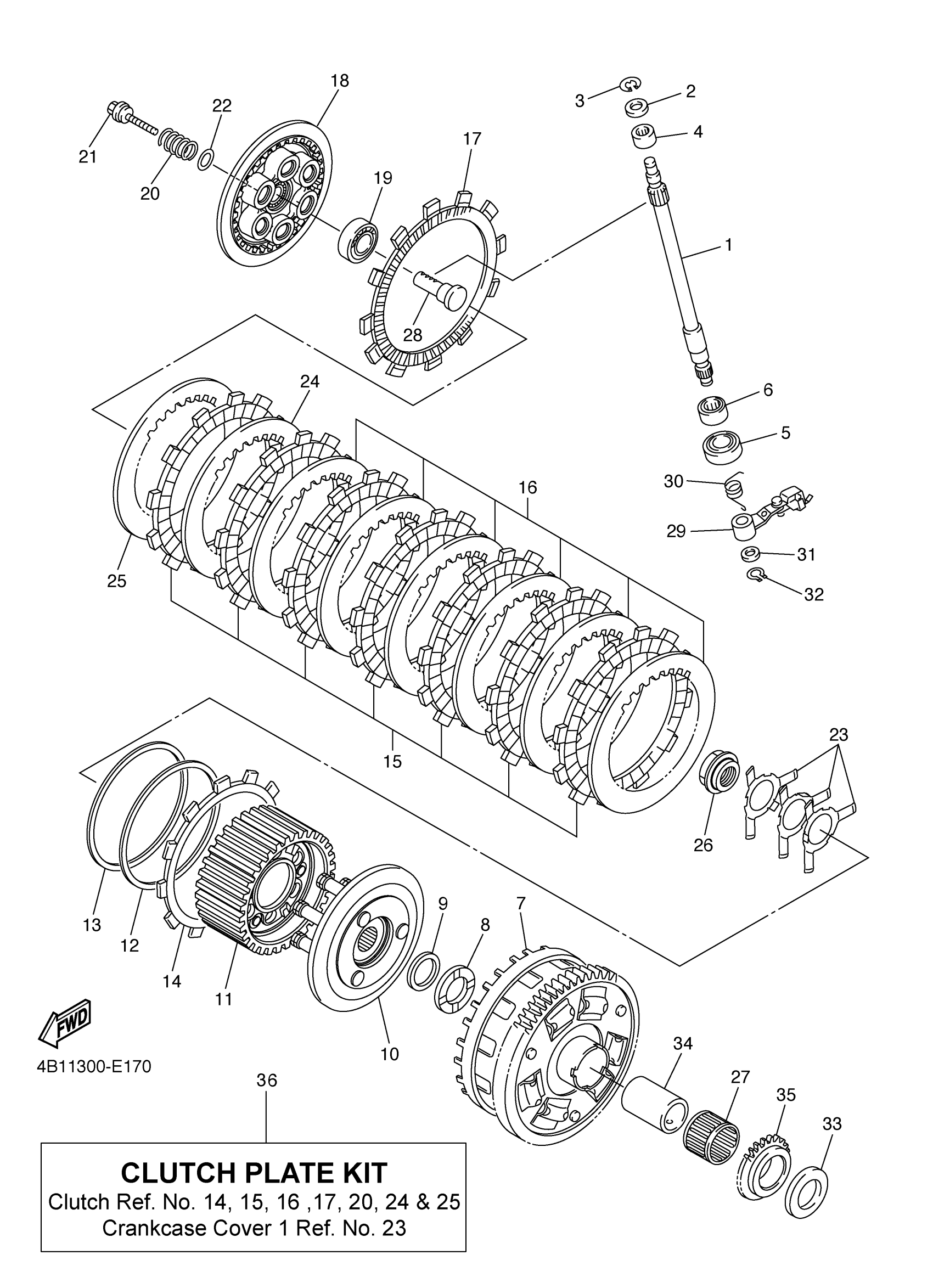

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 CLUTCH Diagram
#
3
CIRCLIP
99080-07600-00
Unavailable
7
PRIMARY DRIVEN GEAR COMP.
4B1-16150-00-00
Unavailable
8
PLATE, THRUST 1
4B1-16154-00-00
Unavailable
9
WASHER, CONICAL SPRING
90208-25002-00
Unavailable
10
PRESSURE PLATE ASSY 2
4B1-16360-00-00
Unavailable
11
CLUTCH BOSS ASSY
4B1-16370-00-00
Unavailable
12
PLATE, SEAT
5VY-16384-00-00
Unavailable
16
PLATE, CLUTCH 2
5VY-16325-20-00
Unavailable
17
PLATE, FRICTION 2
5VY-16330-00-00
Unavailable
18
PLATE, PRESSURE 1
4B1-16351-00-00
Unavailable
19
BEARING(2JN)
93306-00315-00
Unavailable
20
SPRING, COMPRESSION
90501-240A2-00
Unavailable
20
SPRING, COMPRESSION
90501-240A2-00
Unavailable
21
SCREW, WITH WASHER
90159-06026-00
Unavailable
22
PLATE, SEAT
4B1-16384-00-00
Unavailable
23
SPRING
13S-16539-00-00
Unavailable
24
PLATE, CLUTCH 2
4B1-16325-00-00
Unavailable
24
PLATE, CLUTCH 2
5VY-16325-20-00
Unavailable
25
PLATE, CLUTCH 1
BR9-16324-10-00
Unavailable
25
PLATE, CLUTCH 2
4B1-16325-00-00
Unavailable
25
PLATE, CLUTCH 2
5VY-16325-20-00
Unavailable
26
NUT, LOCK
4B1-16377-00-00
Unavailable
27
BEARING
93310-232R9-00
Unavailable
28
ROD, PUSH 1
4XV-16356-01-00
Unavailable
29
PUSH LEVER ASSY
5VY-16340-10-00
Unavailable
30
SPRING, TORSION
90508-16041-00
Unavailable
31
WASHER, PLATE
90201-10029-00
Unavailable
32
CIRCLIP(10W)
99009-10400-00
Unavailable
33
PLATE, THRUST 2
5VY-16164-00-00
Unavailable
34
SPACER 1
5VY-16181-00-00
Unavailable
35
SPROCKET, DRIVE
5VY-13354-00-00
Unavailable
36
CLUTCH PLATE KIT
4C8--W001G-00-00
Unavailable
