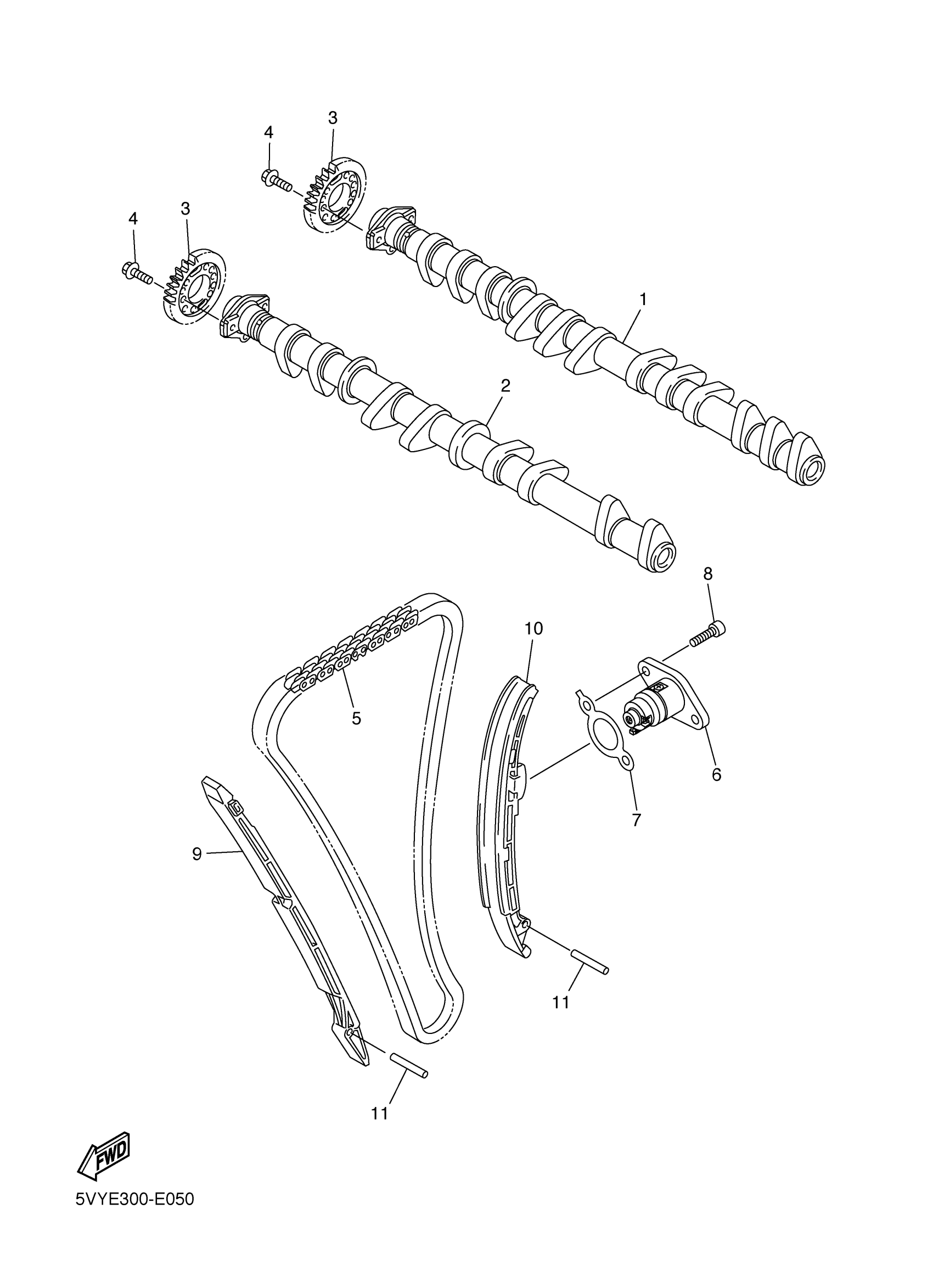

Yamaha YZFR1LEVC (YZFR1 Limited Edition CA) 4B15 2006 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

5VY-12170-10-00

Unavailable

CAMSHAFT ASSY 2

5VY-12180-10-00

Unavailable

SPROCKET, CAM CHAIN

14B-12176-00-00

$99.99

BOLT, FLANGE

90105-07006-00

$8.49

CHAIN

94591-60122-00

$45.99

TENSIONER ASSY, CAM CHAIN

5VY-12210-22-00

$188.99

GASKET, TENSIONER CASE

2D1-12213-00-00

Unavailable

BOLT,SOCKET HEAD

91314-06020-00

$1.49

DAMPER, CHAIN 1

5VY-12251-00-00

$44.99

DAMPER, CHAIN 2

5VY-12252-01-00

$139.99

PIN, DOWEL (8V8)

93607-44190-00

$16.99
