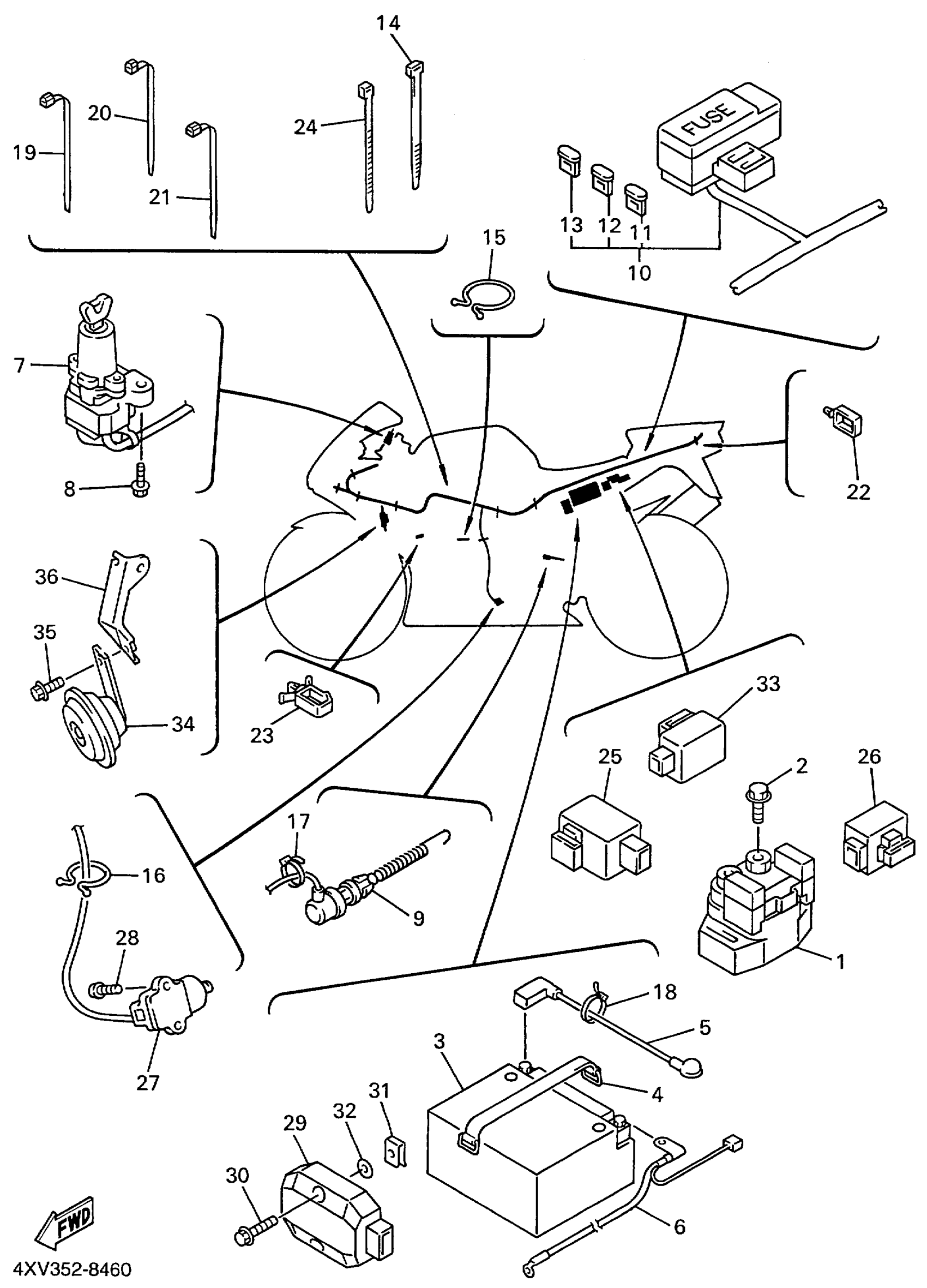

Yamaha YZFR1LC (YZFR1 CA) 4XVB 1999 ELECTRICAL 2 Diagram

#

Description
Price

1

STARTER RELAY ASSY (RC19-018)

4YR-81940-02-00

$140.99

2

BOLT, SMALL FLANGE

95027-06008-00

$7.99

3

GT12B4 GS BATTERY - FA

GT1-2B400-00-00

Unavailable

4

BAND, BATTERY

22F-82131-00-00

$29.99

5

WIRE, PLUS LEAD

4XV-82115-00-00

Unavailable

6

WIRE, MINUS LEAD

4XV-82116-00-00

Unavailable

7

MAIN SWITCH STEERING LOCK

5JJ-82501-11-00

Unavailable

8

BOLT

90109-08196-00

$8.49

9

STOP SWITCH ASSY

4XV-82530-01-00

Unavailable

10

WIRE HARNESS ASSEMBLY

4XV-82590-10-00

Unavailable

11

FUSE (12V 15A)

36Y-82151-00-00

$4.94

12

FUSE

2KW-82151-00-00

$6.99

13

FUSE (20A)

2GV-82151-00-00

$5.49

14

CLAMP(2TV)

90464-10112-00

$8.49

15

CLAMP (8M1)

90464-30040-00

$8.49

16

CLAMP (3Y2)

90464-16039-00

Unavailable

17

CLAMP

5Y9-12491-00-00

Unavailable

18

CLAMP

90464-13077-00

Unavailable

19

CLAMP(4FM)

90464-15195-00

Unavailable

20

CLAMP(4FM)

90464-15195-00

Unavailable

21

CLAMP(2TV)

90464-10112-00

$8.49

22

CLAMP (1J7)

90464-16021-00

Unavailable

23

CLAMP(3XV)

90464-15157-00

Unavailable

24

CLAMP(MF1)

90464-15152-00

Unavailable

25

RELAY ASSY

4TV-81950-01-00

Unavailable

26

RELAY ASSY

4XV-8195A-00-00

Unavailable

27

SWITCH, SIDE STAND

3LD-82566-61-00

Unavailable

28

SCREW, PAN HEAD

98507-05014-00

Unavailable

29

RECTIFIER & REGULATOR ASSY

4JH-81960-01-00

Unavailable

30

BOLT, FLANGE

95817-06025-00

Unavailable

31

NUT, SPRING(4ES)

90183-06069-00

Unavailable

32

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

33

FLASHER RELAY ASSY

4MY-83350-03-00

Unavailable

34

HORN

2KG-83371-00-00

Unavailable

35

BOLT, FLANGE

95817-06010-00

Unavailable

36

BRACKET, HORN

4XV-2134K-00-00

Unavailable
