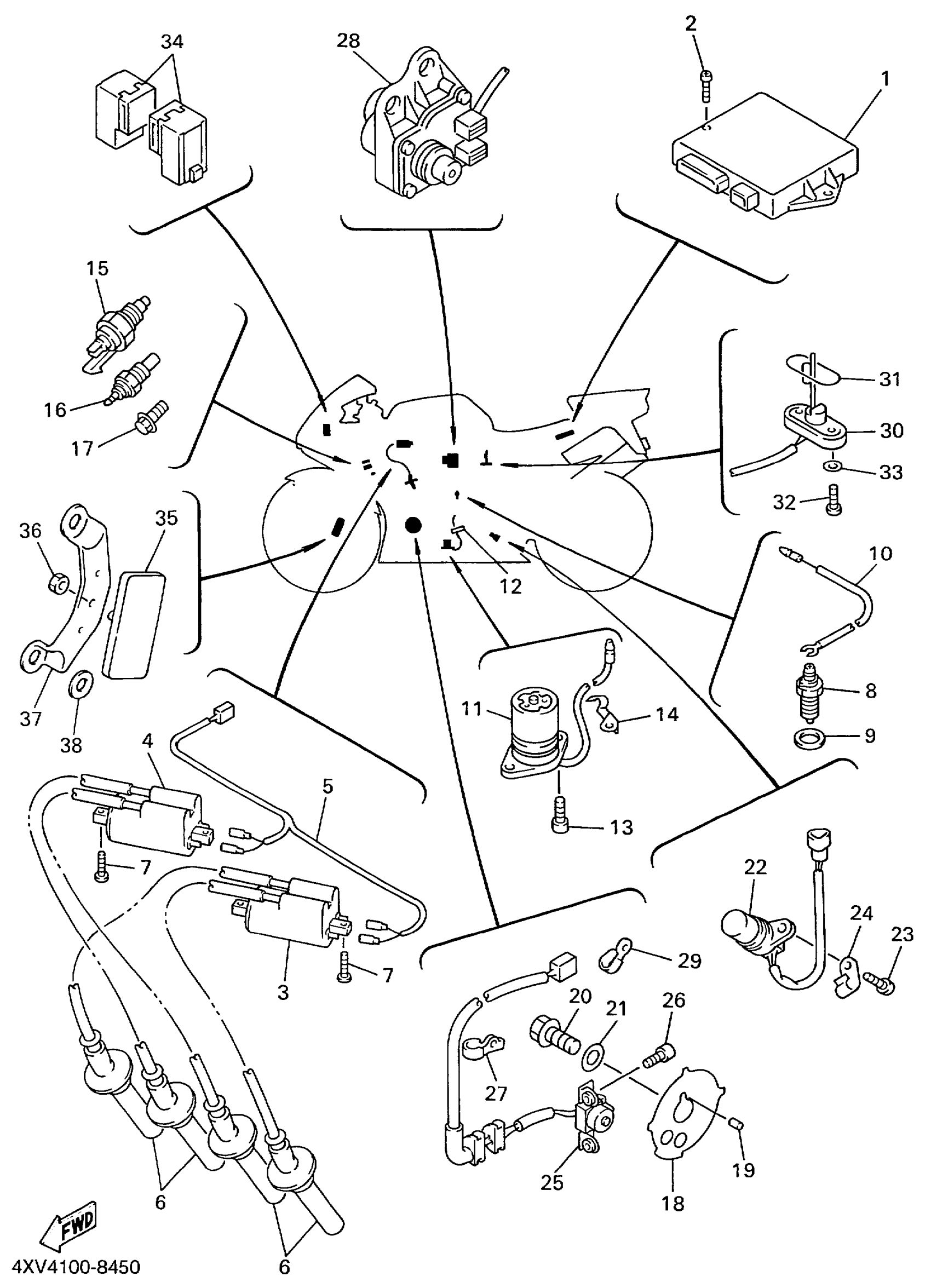

Yamaha YZFR1LC (YZFR1 CA) 4XVB 1999 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSY

4XV-82305-30-00

Unavailable

1

IGNITOR UNIT ASSY

4XV-82305-30-00

Unavailable

2

SCREW, TRUSS TAP.

97707-60016-00

$1.70

3

IGNITION COIL ASSY

4KM-82310-02-00

Unavailable

4

IGNITION COIL ASSY

4KM-82320-02-00

Unavailable

5

WIRE, SUB LEAD

4XV-82309-00-00

Unavailable

6

PLUG CAP ASSY

4XV-82370-01-00

Unavailable

7

SCREW, TRUSS TAP.

97707-60025-00

$1.70

8

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

9

GASKET (1KH,1.0T)

90430-10148-00

$5.60

10

WIRE, LEAD

4XV-82541-01-00

Unavailable

11

OIL LEVEL GAUGE ASSY

4XV-85720-01-00

Unavailable

12

CLAMP

5Y9-12491-00-00

$6.99

13

BOLT,SOCKET

91317-06014-00

$9.49

14

CLAMP

90465-08076-00

Unavailable

15

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

16

THERMO UNIT

11H-83591-00-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

18

ROTOR

4XV-81673-00-00

Unavailable

19

PIN, DOWEL (3Y1)

93604-29151-00

Unavailable

20

BOLT (30X)

90105-10290-00

Unavailable

21

WASHER, PLATE(1WG)

90201-107K6-00

Unavailable

22

SENSOR, SPEED

4XV-83755-04-00

Unavailable

23

BOLT,SOCKET

91317-06014-00

$9.49

24

CLAMP

90465-08028-00

Unavailable

25

PICK-UP ASSY

4XV-81670-11-00

Unavailable

26

BOLT,SOCKET

91317-06012-00

Unavailable

27

CLAMP

90465-08054-00

Unavailable

28

SERVOMOTOR ASY

4FM-85820-01-00

Unavailable

29

CLAMP(4AJ)

90462-08225-00

Unavailable

30

SENDER UNIT ASSEMBLY, FUEL METER

4XV-85752-00-00

Unavailable

31

GASKET, SENDER UNIT

42X-85753-00-00

Unavailable

32

SCREW 256241430000

90149-06011-00

Unavailable

33

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

34

RELAY ASSY (4XV-00)

4XV-81950-00-00

Unavailable

35

FRONT REFLECTOR ASSY

23V-85110-00-00

Unavailable

36

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

37

BRACKET, REFLECTOR 1

4XV-85112-00-00

Unavailable

38

WASHER PLATE (3L6)

90201-08759-00

Unavailable
