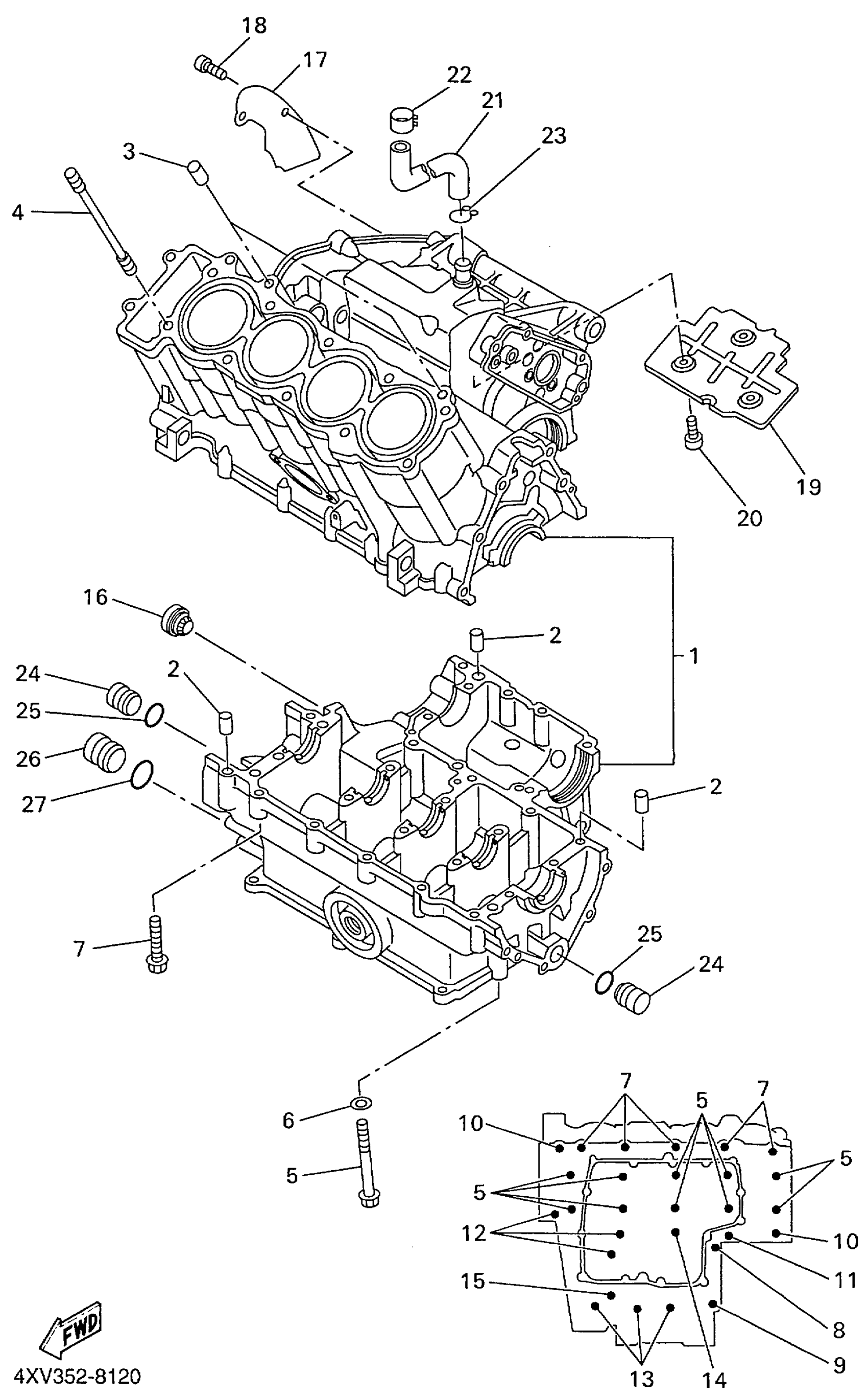

Yamaha YZFR1LC (YZFR1 CA) 4XVB 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

4XV-15100-00-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

PIN, DOWEL(3VD)

99530-10114-00

$2.55

4

BOLT, STUD

90116-10619-00

$11.49

5

BOLT, WASHER BASED

90105-093A5-00

$11.49

6

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

7

BOLT, FLANGE

95817-06055-00

$7.49

8

BOLT, FLANGE

95817-08060-00

$3.76

9

BOLT, FLANGE

95817-08050-00

$2.44

10

BOLT

90109-065G3-00

$9.49

11

BOLT, FLANGE

95817-06060-00

$4.14

12

BOLT, FLANGE

95817-06070-00

$4.72

13

BOLT, FLANGE

95817-06045-00

$8.49

14

BOLT, FLANGE

95814-06050-00

Unavailable

15

BOLT, FLANGE

95817-06065-00

Unavailable

16

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

17

PLATE, BREATHER

4XV-11165-00-00

Unavailable

18

BOLT,SOCKET

91317-06012-00

Unavailable

19

PLATE, BREATHER 2

4XV-11145-00-00

Unavailable

20

BOLT,SOCKET

91317-06012-00

Unavailable

21

HOSE

90445-16416-00

Unavailable

22

CLIP

90468-08104-00

Unavailable

23

CLIP (371)

90467-14015-00

Unavailable

24

PLUG

90338-16262-00

Unavailable

25

O-RING(3LD)

93210-12790-00

Unavailable

26

PLUG

90338-20263-00

Unavailable

27

O-RING (1J7)

93210-16314-00

Unavailable
