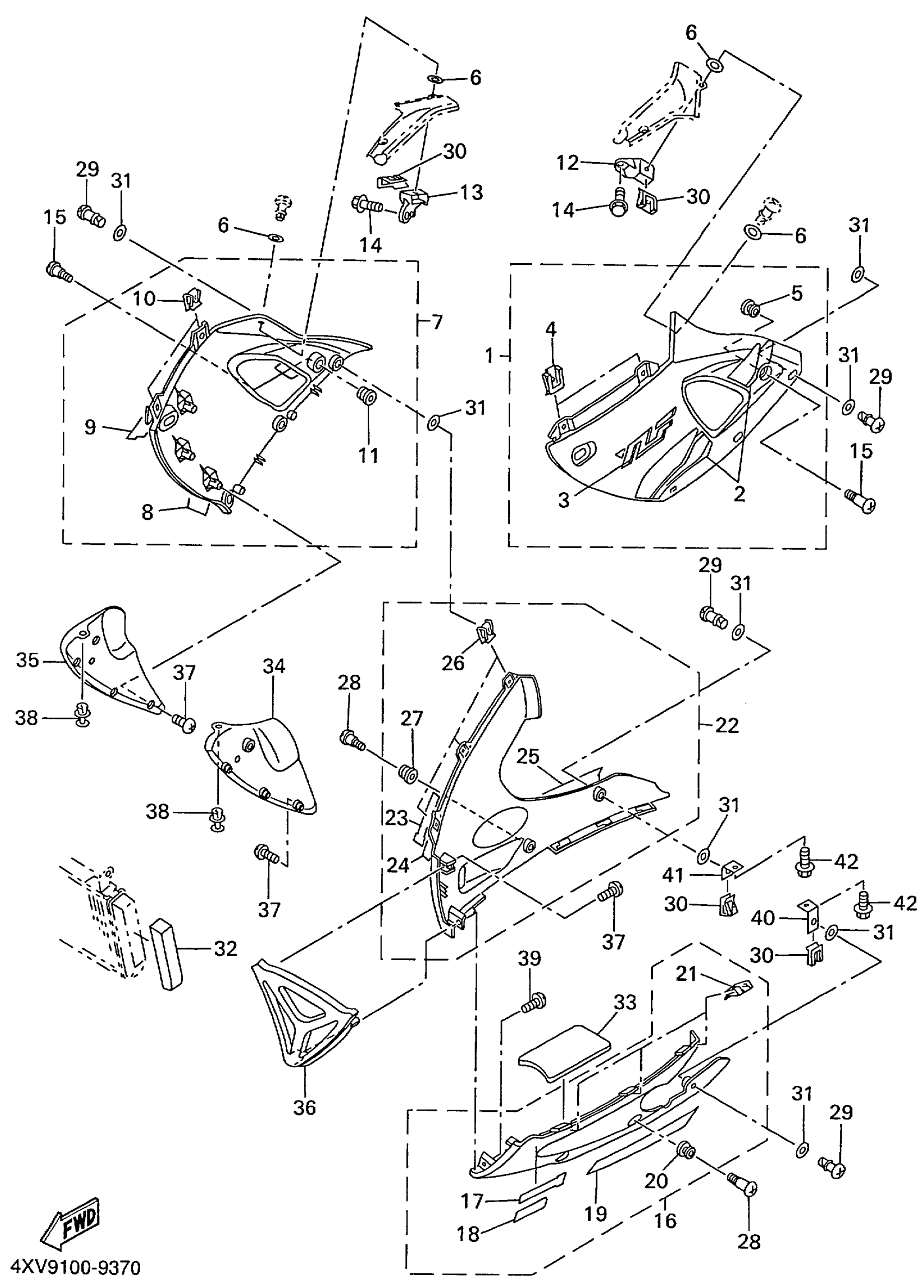

Yamaha YZFR1LC (YZFR1 CA) 4XVB 1999 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
4XV-W283U-20-2X
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
4XV-Y283U-30-P1
Unavailable
2
. GRAPHIC SET, LOWER COVER 1 (VIVID RED COCKTAIL 1) (BLACK 2)
4XV-28301-00-00
Unavailable
2
. GRAPHIC SET, LOWER COVER 1 (DEEP PURPLISH BLUE METALLIC C)
4XV-28301-10-00
Unavailable
3
. EMBLEM 1 (VIVID RED COCKTAIL 1) (BLACK 2)
4XV-2839H-00-00
Unavailable
3
EMBLEM 1
4XV-2839H-10-00
Unavailable
7
PANEL ASSEMBLY 2
4XV-W283V-20-2X
Unavailable
7
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
4XV-Y283V-30-P1
Unavailable
8
. GRAPHIC SET, LOWER COVER 2 (VIVID RED COCKTAIL 1) (BLACK 2)
4XV-28303-00-00
Unavailable
8
GRAPHIC SET,LOWER COVER 2
4XV-28303-10-00
Unavailable
9
. EMBLEM 1 (VIVID RED COCKTAIL 1) (BLACK 2)
4XV-2839H-00-00
Unavailable
9
EMBLEM 1
4XV-2839H-10-00
Unavailable
12
BRACKET 1
4XV-2836A-00-00
Unavailable
13
BRACKET 2
4XV-2836E-00-00
Unavailable
14
BOLT, WITH WASHER
90119-06226-00
Unavailable
15
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
16
COVER ASSEMBLY, UNDER (BLUISH WHITE COCKTAIL 1)
4XV-Y2808-20-P2
Unavailable
16
COVER ASSEMBLY, UNDER (DEEP PURPLISH BLUE METALLIC C)
4XV-Y2808-30-P1
Unavailable
17
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28328-20-00
Unavailable
17
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28328-30-00
Unavailable
18
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28338-20-00
Unavailable
18
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28338-30-00
Unavailable
19
. EMBLEM, YAMAHA
4XV-2153E-00-00
Unavailable
19
. EMBLEM, YAMAHA (BLUISH WHITE COCKTAIL 1)
4XV-2153E-10-00
Unavailable
22
COVER ASSEMBLY 2, UNDER (DEEP PURPLISH BLUE METALLIC C)
4XV-Y2809-40-P1
Unavailable
22
COVER ASSEMBLY 2, UNDER (BLUISH WHITE COCKTAIL 1)
4XV-Y2809-50-P2
Unavailable
23
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28328-20-00
Unavailable
23
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28328-30-00
Unavailable
24
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28338-20-00
Unavailable
24
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28338-30-00
Unavailable
25
EMBLEM, YAMAHA
99241-00280-00
Unavailable
25
EMBLEM, YAMAHA
99244-00280-00
Unavailable
28
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
29
HEAD
3XV-28386-00-00
Unavailable
32
DAMPER
4SV-28371-00-00
Unavailable
33
. SEAT 2
4XV-2848K-00-00
Unavailable
34
PANEL, INNER 1
4XV-2836K-10-P1
Unavailable
34
PANEL, INNER 1
4XV-2836K-10-P2
Unavailable
35
PANEL, INNER 2
4XV-2836L-10-P1
Unavailable
35
PANEL, INNER 2
4XV-2836L-10-P2
Unavailable
36
PANEL, INNER 3
4XV-2836M-10-P0
Unavailable
36
PANEL, INNER 3
4XV-2836M-10-P2
Unavailable
37
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
38
RIVET(4PH)
90269-07077-00
Unavailable
39
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
40
BRACKET 3
4XV-2836F-00-00
Unavailable
41
BRACKET 4
4XV-2836G-00-00
Unavailable
42
BOLT, FLANGE
95817-06012-00
Unavailable
