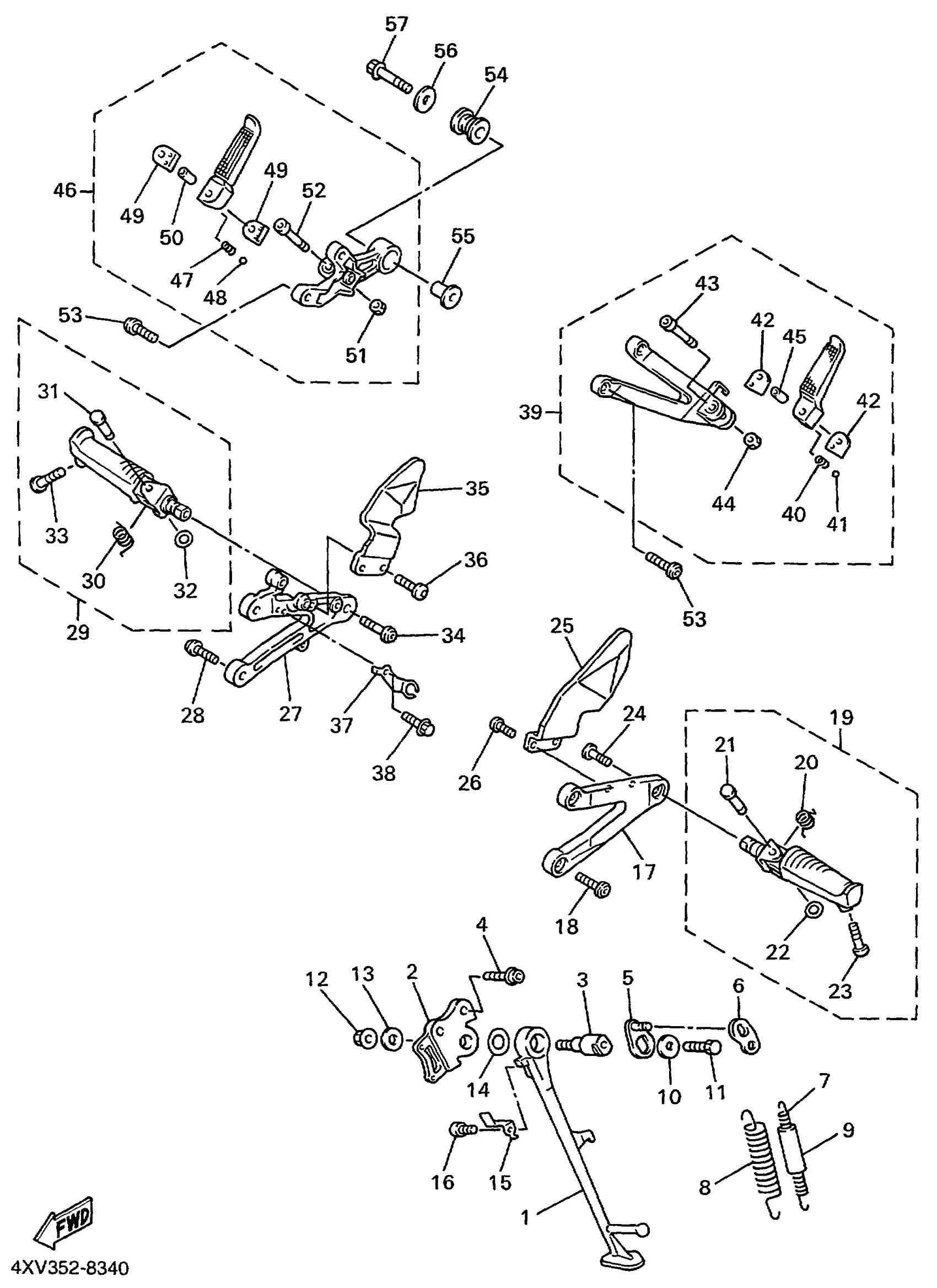

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

5EB-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

5JJ-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

4NX-27351-00-00

Unavailable

4

BOLT, HEXAGON SOCKET HEAD

90110-10012-00

$26.99

5

HOOK, SIDE STAND

36Y-27352-00-00

Unavailable

6

LINK, SIDE STAND

36Y-27315-00-00

Unavailable

7

SPRING, TENSION (4K0)

90506-18224-00

$5.60

8

SPRING, TENSION (4K0)

90506-26225-00

$11.49

9

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

10

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

11

BOLT, HEXAGON

97017-08020-00

$9.49

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

WASHER, PLATE(47X)

90201-101J1-00

$8.49

14

WASHER, PLATE (22F)

90201-146F9-00

$7.49

15

LINK, SIDE STAND

4NX-27315-00-00

Unavailable

16

BOLT,SOCKET

91317-06012-00

Unavailable

17

BRACKET 2

4XV-27442-00-00

Unavailable

18

BOLT

90109-085G6-00

Unavailable

19

FRONT FOOTREST ASSY (LEFT)

4XV-27410-01-00

Unavailable

20

SPRING, TORSION

90508-183B9-00

Unavailable

21

PIN(2AL)

90243-08029-00

Unavailable

22

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

23

BOLT

90109-08075-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

25

PLATE 1

4XV-27445-00-00

Unavailable

26

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

27

BRACKET 3

4XV-27443-00-00

Unavailable

28

BOLT

90109-085G6-00

Unavailable

29

FRONT FOOTREST ASSY (RIGHT)

4XV-27420-01-00

Unavailable

30

SPRING, TORSION

90508-184B0-00

Unavailable

31

PIN(2AL)

90243-08029-00

Unavailable

32

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

33

BOLT

90109-08075-00

Unavailable

34

BOLT,HEX. SOCKET BUTTON

90111-10017-00

Unavailable

35

PLATE 2

4XV-27446-00-00

Unavailable

36

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

37

STAY, STOP SWITCH

3XV-2144G-00-00

Unavailable

38

BOLT, FLANGE

95817-06008-00

Unavailable

39

REAR FOOTREST ASSY 1

4XV-27430-00-00

Unavailable

40

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

41

BALL

93501-04011-00

Unavailable

42

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

43

BOLT, SOCKET

91314-06045-00

Unavailable

44

NUT, U FLANGE

95604-06200-00

Unavailable

45

COLLAR (24R)

90387-064H8-00

Unavailable

46

REAR FOOTREST ASSEMBLY 2

4XV-27440-00-00

Unavailable

47

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

48

BALL

93501-04011-00

Unavailable

49

WASHER, SPECIAL

1HX-27437-00-00

Unavailable

50

COLLAR (24R)

90387-064H8-00

Unavailable

51

NUT, U FLANGE

95604-06200-00

Unavailable

52

BOLT, SOCKET

91314-06045-00

Unavailable

53

BOLT

90109-085G6-00

Unavailable

54

DAMPER, FOOTREST 2

36Y-27424-01-00

Unavailable

55

COLLAR (2H7)

90387-10636-00

Unavailable

56

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

57

BOLT(3BM)

90109-100G0-00

Unavailable
