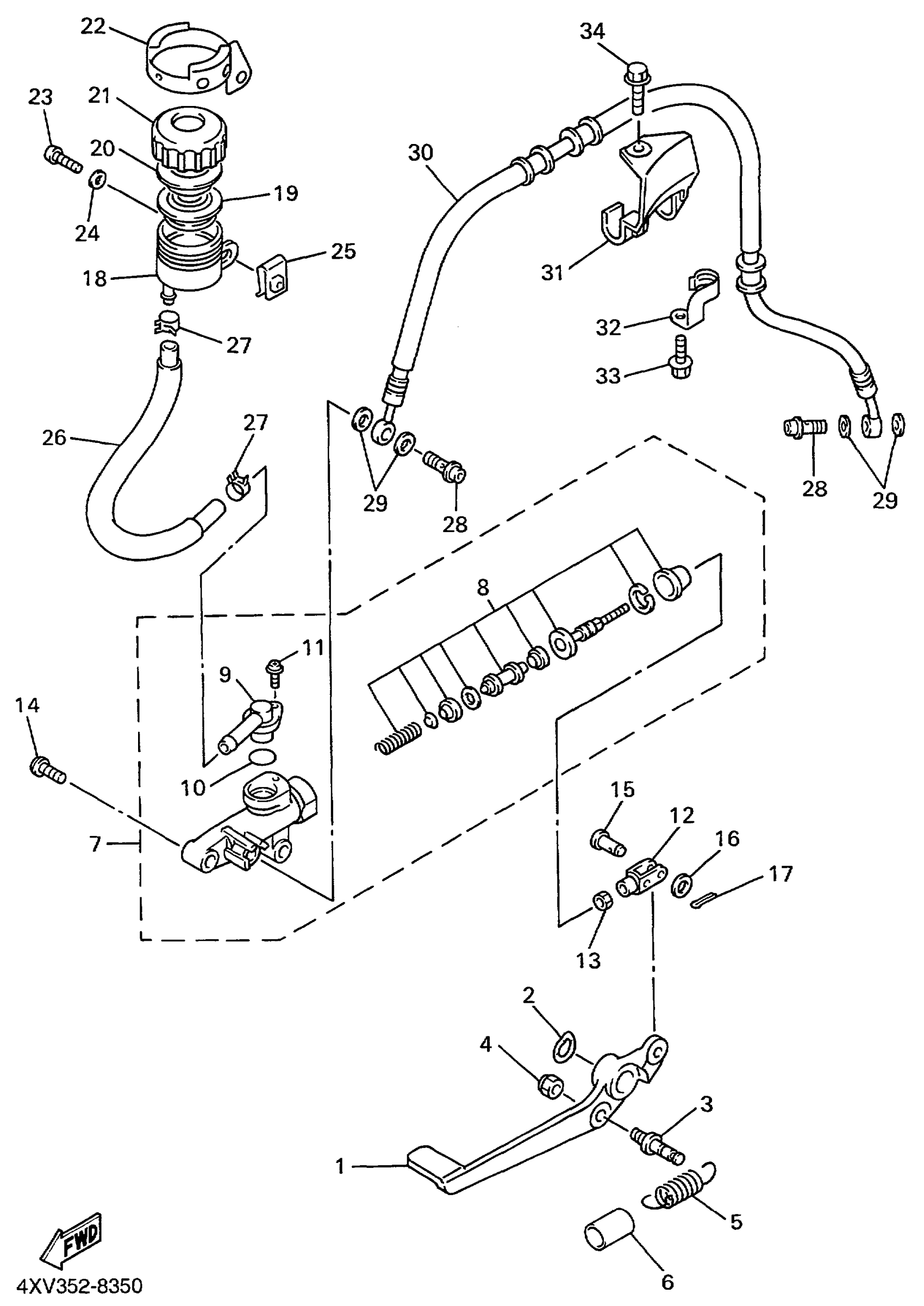

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4XV-27211-00-00

Unavailable

2

WASHER, WAVE(46X)

90206-17084-00

$11.49

3

PIN, PEDAL CRANK

3MA-27813-00-00

Unavailable

4

NUT, U (1X2)

95680-08100-00

$7.49

5

SPRING, TENSION(46X)

90506-20377-00

$8.49

6

HOSE(3GM)

90446-17346-00

$5.60

7

RR. MASTER CYLINDER ASSY.

3TU-2583V-01-00

Unavailable

8

CYLINDER KIT, MASTER

3TU-W0042-51-00

Unavailable

9

. JOINT

3LN-2582A-00-00

Unavailable

10

O-RING

3LN-2585F-00-00

Unavailable

11

SCREW SET

3LN-2585H-00-00

$2.18

12

JOINT

4XV-27222-01-00

$43.99

13

NUT, HEXAGON SMALL

95317-08700-00

$9.49

14

BOLT, BUTTON

92017-08030-00

$9.49

15

PIN, CLEVIS (5X6)

91701-06018-00

$4.94

16

WASHER(6TA)

92907-06200-00

Unavailable

17

PIN, COTTER

91490-16020-00

Unavailable

18

TANK, RESERVOIR

31A-25894-01-00

Unavailable

19

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

20

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

21

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

22

COVER, RESERVOIR TANK

3PJ-25888-00-00

Unavailable

23

SCREW, PAN

98517-06020-00

Unavailable

24

WASHER(6TA)

92907-06600-00

Unavailable

25

NUT, SPRING(4ES)

90183-06069-00

Unavailable

26

HOSE, RESERVOIR

4XV-25895-00-00

Unavailable

27

CLIP (5K4)

90467-14057-00

Unavailable

28

BOLT, UNION

90401-10172-00

Unavailable

29

WASHER, PLATE(481)

90201-10118-00

Unavailable

30

HOSE, BRAKE

4XV-25874-00-00

Unavailable

31

HOLDER, BRAKE HOSE

4XV-25886-01-00

Unavailable

32

HOLDER, BRAKE HOSE 2

4FM-25876-01-00

Unavailable

33

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

34

BOLT, WITH WASHER

90119-06226-00

Unavailable
