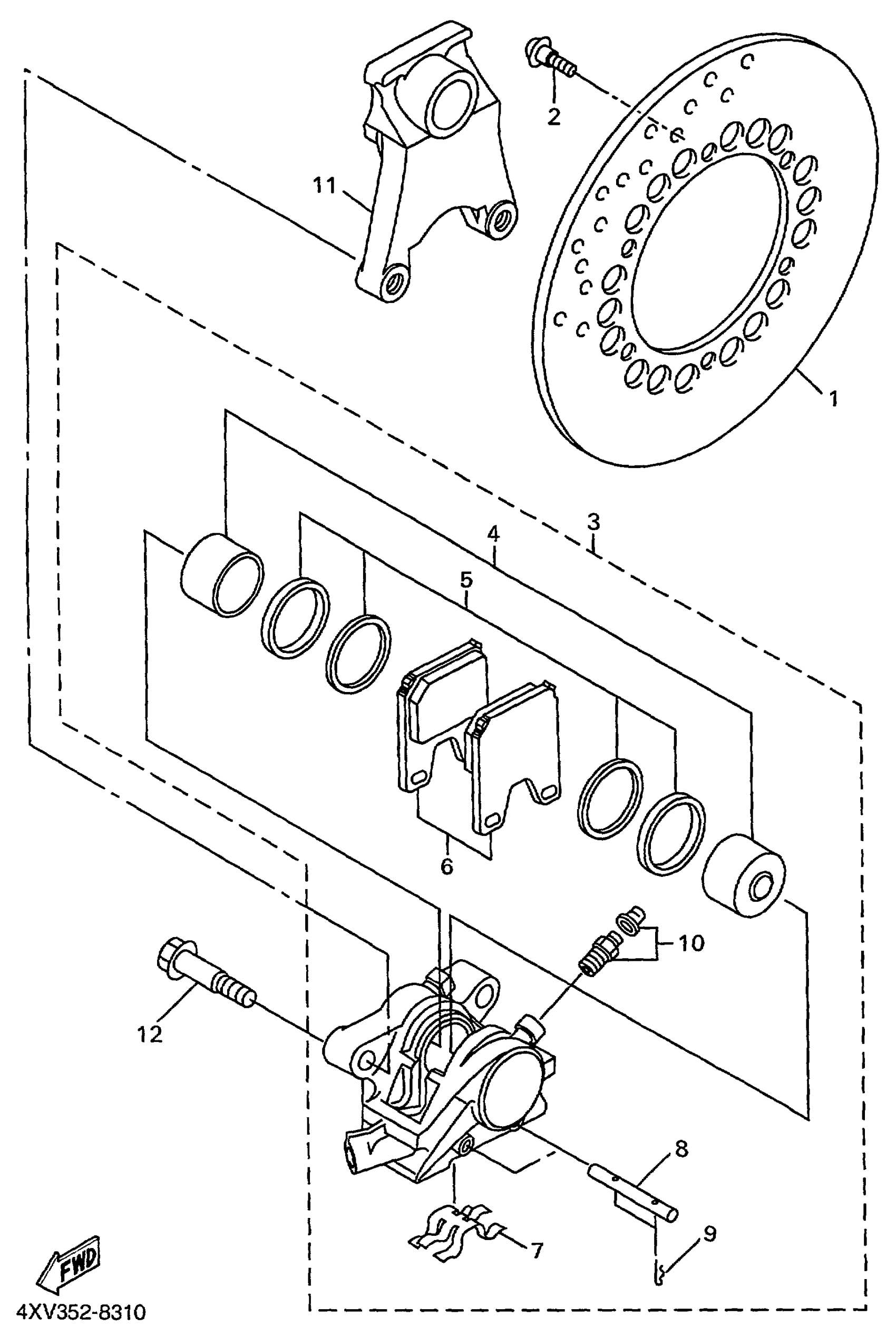

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 REAR BRAKE CALIPER Diagram

DISC, REAR BRAKE 2

4XV-2582W-00-00

Unavailable

BOLT

90109-06254-00

$8.49

CALIPER ASSY, REAR 2

5JJ-2580W-00-00

Unavailable

PISTON ASSY, CALIPER

4XV-W0057-50-00

Unavailable

CALIPER SEAL KIT

4XV-W0047-50-00

$25.99

BRAKE PAD KIT 2

5FL-W0046-50-00

Unavailable

SUPPORT, PAD

4XV-25919-50-00

Unavailable

PIN, PAD

4SV-25924-00-00

$42.99

CLIP, PAD PIN

3GM-25925-00-00

$11.99

BLEED SCREW KIT

1J3-W0048-00-00

Unavailable

BRACKET, CALIPER

4XV-25819-00-00

Unavailable

BOLT, WASHER BASED

90105-105A0-00

$11.49
