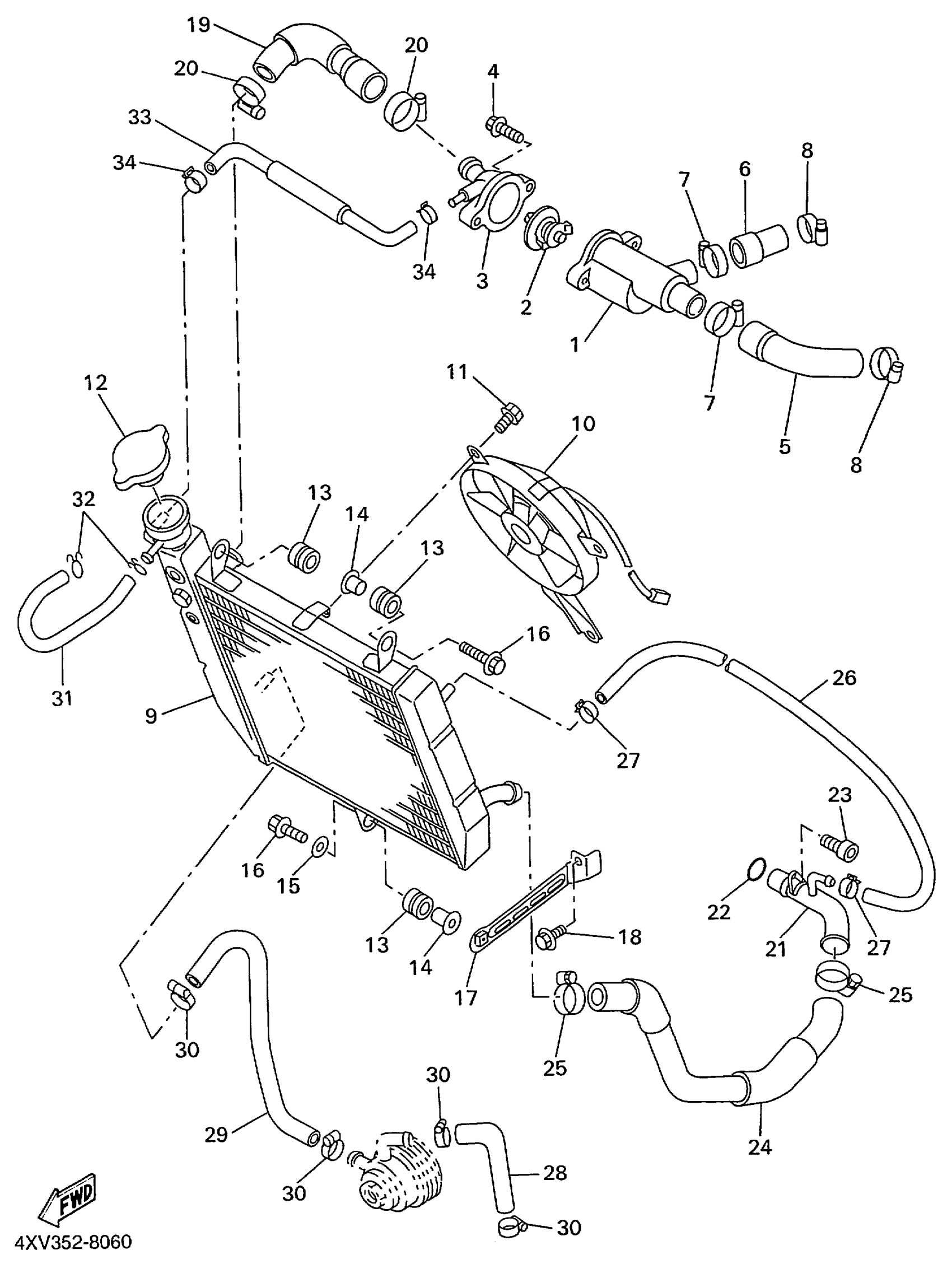

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 RADIATOR HOSE Diagram

#

Description
Price

1

HOUSING, THERMOSTAT

4XV-12417-00-00

Unavailable

2

THERMOSTAT ASSY

4FM-12410-01-00

$41.99

3

COVER, THERMOSTAT

4XV-12413-00-00

Unavailable

4

BOLT, SMALL FLANGE

95027-06025-00

$4.16

5

HOSE 2

4XV-12577-00-00

Unavailable

6

HOSE 3

4XV-12578-00-00

Unavailable

7

HOSE CLAMP ASSY

90450-32015-00

$17.99

8

HOSE CLAMP ASSY

90450-28001-00

$14.99

9

RADIATOR ASSEMBLY

4XV-12461-00-00

Unavailable

10

BLOWER ASSY

4XV-12405-00-00

Unavailable

11

BOLT, FLANGE

95817-06010-00

$4.73

12

CAP, RADIATOR

5SL-12462-01-00

$29.99

13

GROMMET (29L)

90480-15363-00

$8.49

14

COLLAR 437216330000

90387-07391-00

Unavailable

15

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

16

BOLT, FLANGE

95817-06025-00

Unavailable

17

STAY, RADIATOR

4XV-12464-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

HOSE 4

4XV-12579-00-00

Unavailable

20

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

21

PIPE 4

4XV-12484-00-00

Unavailable

22

O-RING(1LT)

93210-23787-00

Unavailable

23

BOLT,SOCKET

91317-06012-00

Unavailable

24

HOSE 7

4XV-12551-00-00

Unavailable

25

HOSE CLAMP ASSY(3GM)

90450-38040-00

Unavailable

26

HOSE 1

4XV-1243A-00-00

Unavailable

27

CLIP(3BM)

90467-10135-00

Unavailable

28

HOSE 5

4XV-12588-00-00

Unavailable

29

HOSE 6

5JJ-12589-00-00

Unavailable

30

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

31

HOSE (L420)

90445-092K1-00

Unavailable

32

CLIP 101235600

90467-08003-00

Unavailable

33

HOSE 8

4XV-12552-00-00

Unavailable

34

CLIP(3BM)

90467-10135-00

Unavailable
