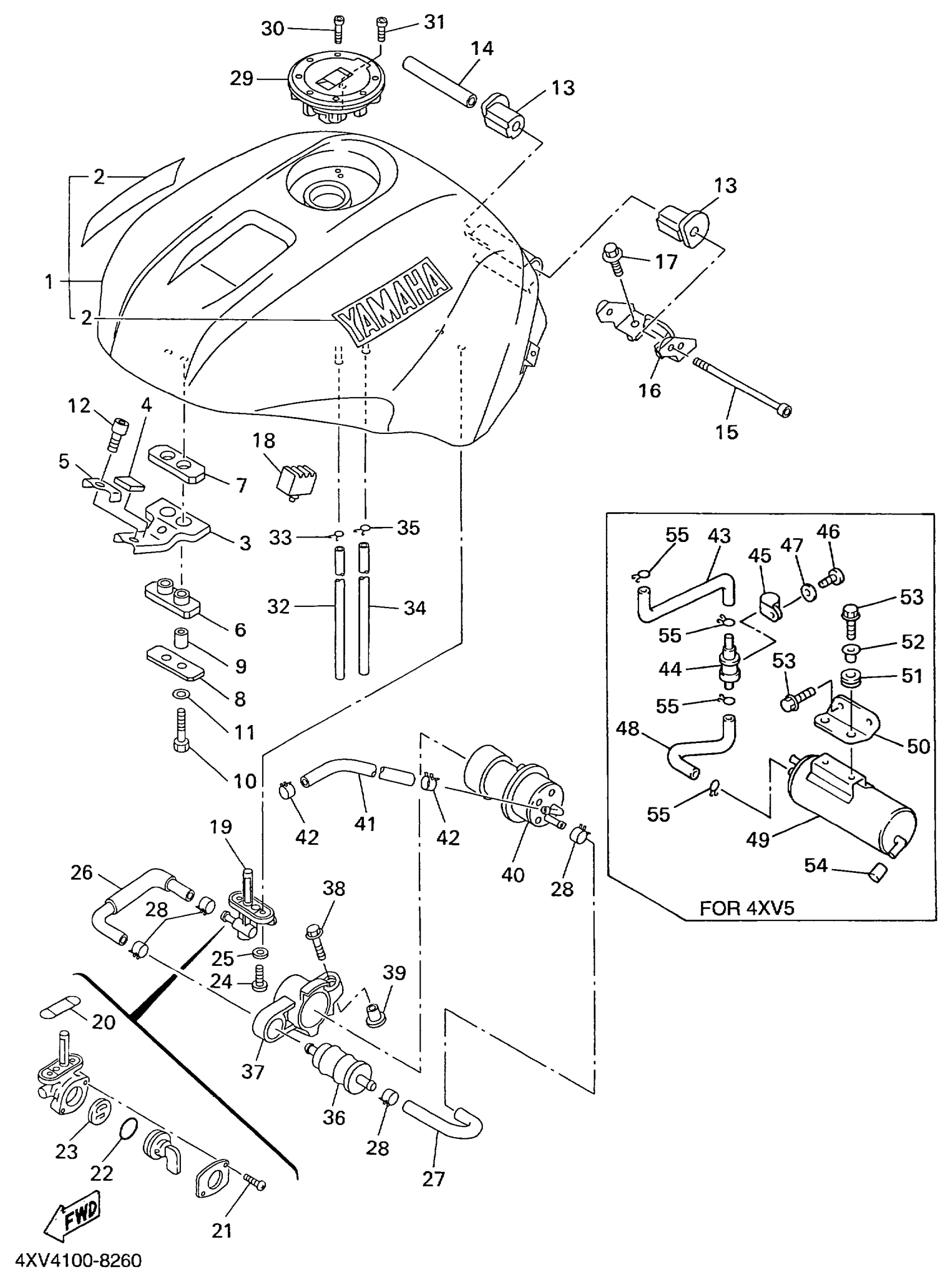

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 FUEL TANK Diagram
#
1
FUEL TANK COMP.
4XV-Y2410-31-02
Unavailable
1
FUEL TANK COMP.
4XV-Y2410-31-03
Unavailable
2
. EMBLEM, YAMAHA (BLUISH WHITE COCKTAIL 1)
4TV-2153A-10-00
Unavailable
3
BRACKET, FUEL TANK 1
4XV-24191-00-00
Unavailable
4
DAMPER 5
1AE-2837J-00-00
Unavailable
5
WASHER, SPECIAL
4XV-24186-00-00
Unavailable
6
DAMPER, LOCATING 1
2GH-24181-00-00
Unavailable
7
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
8
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
13
DAMPER, LOCATING 1
4YR-24181-00-00
Unavailable
14
COLLAR(3TJ)
90387-061W9-00
Unavailable
15
BOLT, SOCKET
91317-06110-00
Unavailable
16
BRACKT, TANK FITTING
4XV-21348-00-00
Unavailable
17
BOLT, WITH WASHER
90119-06242-00
Unavailable
18
DAMPER, LOCATING 3
4XV-24183-00-00
Unavailable
19
FUEL COCK ASSY 1
4KM-24500-20-00
Unavailable
20
O-RING
4X8-24512-00-00
Unavailable
21
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
22
SEAL, COCK
3AJ-24534-01-00
Unavailable
23
VALVE PACKING
3AC-24523-00-00
Unavailable
24
SCREW 256241430000
90149-06011-00
Unavailable
25
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
26
PIPE, FUEL 1
4XV-24311-00-00
Unavailable
27
PIPE 2
4XV-24312-00-00
Unavailable
28
CLIP(3GM)
90467-12124-00
Unavailable
29
CAP ASSY
4HM-24602-01-00
Unavailable
30
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
31
BOLT, SOCKET
91317-05010-00
Unavailable
32
HOSE
1JK-24315-00-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
HOSE
1JK-24315-00-00
Unavailable
35
CLIP
90467-090A2-00
Unavailable
36
FILTER ASSY
1FK-24560-10-00
Unavailable
37
BAND 1
4XV-24398-00-00
Unavailable
38
BOLT, WITH WASHER (30X)
90119-06096-00
Unavailable
39
COLLAR(42G)
90387-062L2-00
Unavailable
40
FUEL PUMP COMP.
4SV-13907-03-00
Unavailable
41
HOSE (L200)
90445-142K2-00
Unavailable
42
CLIP(3YX)
90467-13133-00
Unavailable
43
PIPE 3
4XV-24313-01-00
Unavailable
44
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
45
CLAMP
90464-15014-00
Unavailable
46
SCREW, PAN
98517-05012-00
Unavailable
47
WASHER(1RW)
92907-05600-00
Unavailable
48
PIPE 4
4XV-24314-00-00
Unavailable
49
CANISTER ASSY
4XV-24170-00-00
Unavailable
50
BRACKET, CANISTOR
4XV-2419F-00-00
Unavailable
51
GROMMET (1E5)
90480-13163-00
Unavailable
52
COLLAR(42G)
90387-062L2-00
Unavailable
53
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
54
HOSE (L70)
90445-112E0-00
Unavailable
55
CLIP
90467-090A2-00
Unavailable
