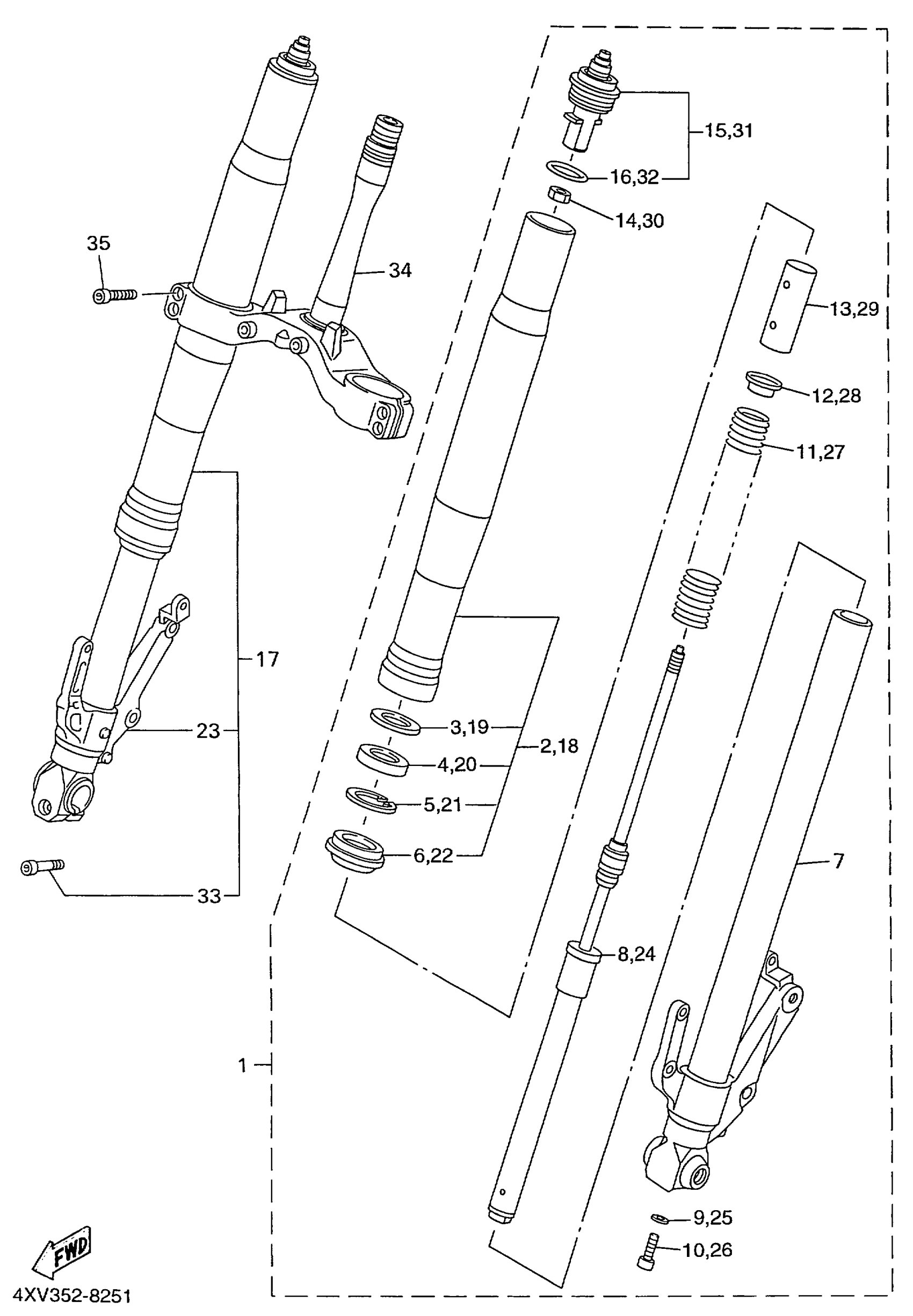

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSEMBLY (L.H)
4XV-23102-00-00
Unavailable
2
TUBE, OUTER (RIGHT
5JJ-23136-00-00
Unavailable
7
. INNER TUBE COMP1
4XV-23110-00-00
Unavailable
8
. CYLINDER COMP, FRONT FORK
4XV-23170-00-00
Unavailable
11
. SPRING, FRONT FORK
4XV-23141-00-00
Unavailable
12
SEAT, SPRING UPPER
4XV-23142-00-00
Unavailable
13
. SPACER
4XV-23118-00-00
Unavailable
15
. BOLT, CAP
4XV-23111-00-00
Unavailable
16
O-RING
3XJ-23147-L0-00
Unavailable
17
FRONT FORK ASSEMBLY (R.H)
4XV-23103-00-00
Unavailable
18
TUBE, OUTER (RIGHT
5JJ-23136-00-00
Unavailable
23
. INNER TUBE COMP2
4XV-23120-00-00
Unavailable
24
. CYLINDER COMP, FRONT FORK
4XV-23170-00-00
Unavailable
27
. SPRING, FRONT FORK
4XV-23141-00-00
Unavailable
28
SEAT, SPRING UPPER
4XV-23142-00-00
Unavailable
29
. SPACER
4XV-23118-00-00
Unavailable
31
. BOLT, CAP
4XV-23111-00-00
Unavailable
32
O-RING
3XJ-23147-L0-00
Unavailable
33
BOLT,SOCKET
91314-08040-00
Unavailable
34
UNDER BRACKET COMP
5JJ-23340-00-00
Unavailable
35
BOLT,SOCKET
91314-08030-00
Unavailable
36
FORK SEAL KIT (TWO FORKS)
4EB-W003B-00-00
Unavailable
