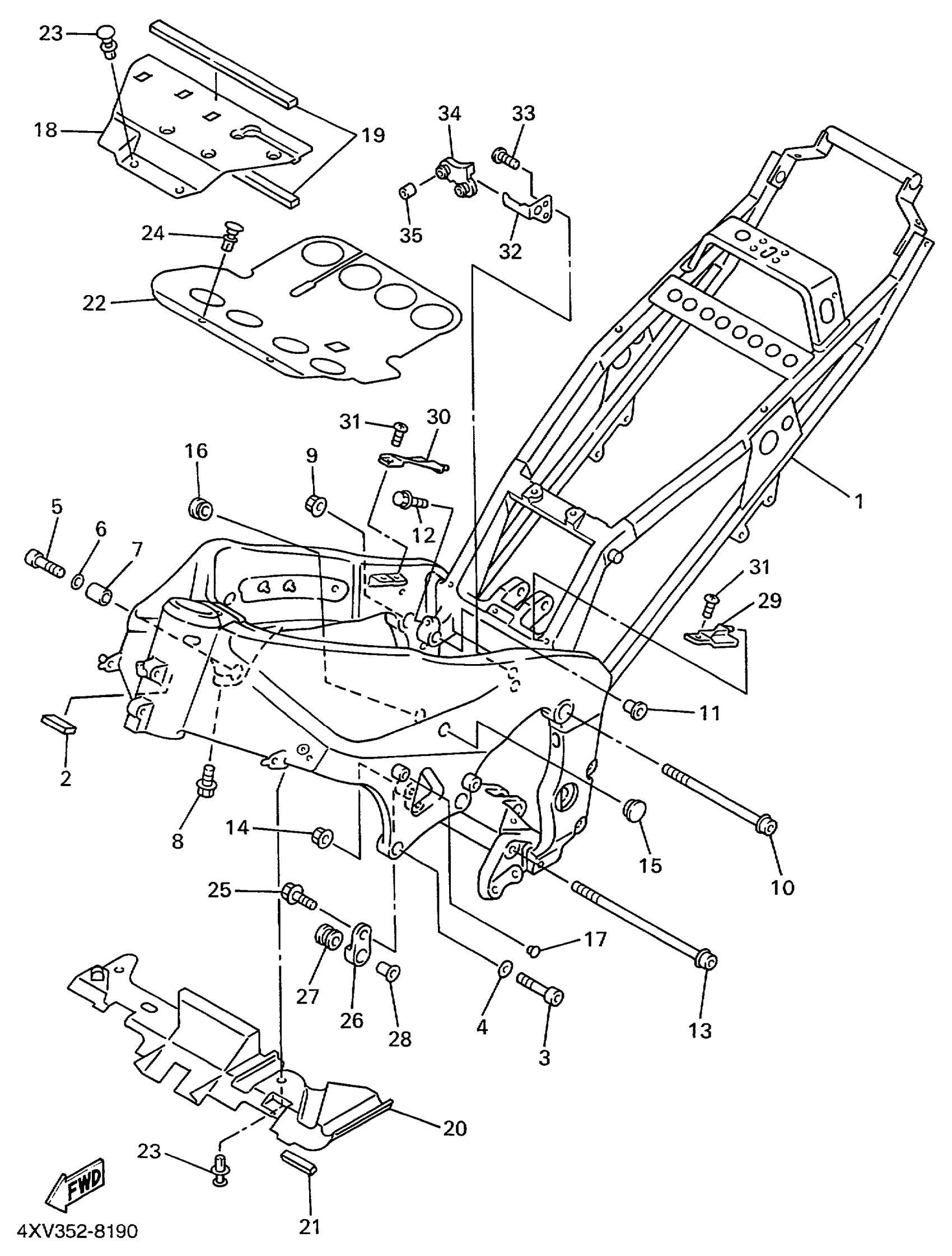

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4XV-21110-00-00

Unavailable

2

DAMPER, SIDE COVER

3XV-21717-00-00

$3.28

3

BOLT,SOCKET

91314-10040-00

$5.60

4

WASHER, PLATE

92990-10600-00

Unavailable

5

BOLT

91314-12055-00

$10.49

6

WASHER(6TA)

92907-12600-00

$1.71

7

COLLAR

90387-1312P-00

$18.99

8

BOLT, FLANGE(4MY)

95027-08035-00

$8.49

9

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

10

BOLT

90109-104G5-00

Unavailable

11

COLLAR

90387-1112F-00

Unavailable

12

BOLT, FLANGE(4MY)

95027-08035-00

$8.49

13

BOLT

90109-104G5-00

Unavailable

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

PLUG(2GH)

90338-15202-00

$9.49

16

PLUG

90338-18266-00

Unavailable

17

PLUG (17J)

90338-07124-00

Unavailable

18

COVER 2

4XV-2117M-00-00

Unavailable

19

DAMPER

4XV-28371-00-00

Unavailable

20

GUIDE, AIR

4XV-2137Y-01-00

Unavailable

21

DAMPER, SIDE COVER

3XV-21717-00-00

$3.28

22

COVER

4XV-2117F-00-00

Unavailable

23

RIVET(4PH)

90269-07077-00

Unavailable

24

RIVET

90269-07084-00

Unavailable

25

BOLT, FLANGE(4LN)

95817-08025-00

Unavailable

26

STAY, MUFFLER 2

4XV-21446-00-00

Unavailable

27

DAMPER, FOOTREST 2

4XV-27424-00-00

Unavailable

28

COLLAR(3MA)

90387-082W9-00

Unavailable

29

COVER 3

4XV-2117N-00-00

Unavailable

30

COVER 4

4XV-2117R-00-00

Unavailable

31

SCREW, BINDING (10V)

90154-05013-00

Unavailable

32

BRACKET 7

4XV-2116J-00-00

Unavailable

33

SCREW, BINDING

98907-06016-00

Unavailable

34

STAY 1

4XV-2116A-00-00

Unavailable

35

COLLAR

90387-061K9-00

Unavailable
