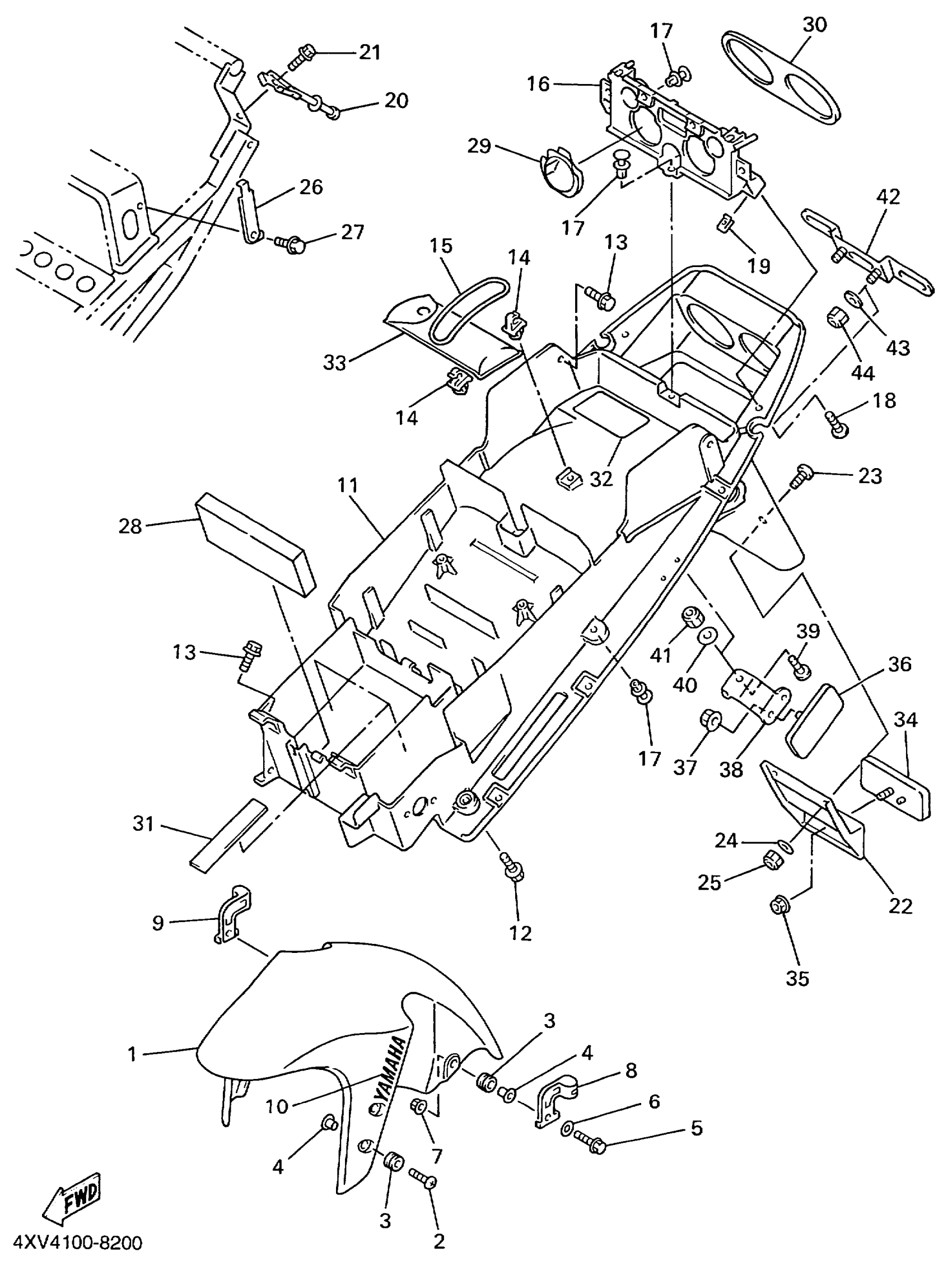

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4XV-21511-01-P0

Unavailable

1

FENDER, FRONT

4XV-21511-01-P1

Unavailable

2

SCREW, BINDING(3XV)

90154-06061-00

$8.49

3

GROMMET(53Y)

90480-12072-00

$8.49

4

COLLAR

90387-06159-00

$8.49

5

BOLT, HEXAGON

97017-06030-00

$3.61

6

WASHER(6TA)

92907-06600-00

$2.72

7

NUT, FLANGE(4MV)

95707-06500-00

$1.23

8

HOLDER, BRAKE HOSE 1

4XV-25875-00-00

Unavailable

9

HOLDER, BRAKE HOSE 2

4XV-25876-00-00

Unavailable

10

EMBLEM, YAMAHA

99241-00100-00

$4.19

11

FENDER, REAR

4XV-21611-00-00

Unavailable

12

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

13

BOLT, WITH WASHER

90119-06242-00

$7.49

14

CLAMP

90464-07259-00

$3.23

15

BAND, TOOL

4XV-21376-00-00

Unavailable

16

BRACKET, TAILLIGHT

4XV-2117E-00-00

Unavailable

17

RIVET(4PH)

90269-07077-00

Unavailable

18

SCREW, BINDING (10V)

90154-05013-00

Unavailable

19

NUT, SPRING(3GM)

90183-05061-00

Unavailable

20

WIRE

4XV-21654-00-00

Unavailable

21

BOLT, WASHER BASED HEXAGON 1L9

90105-06069-00

Unavailable

22

BRACKET, REFLECTOR 1

4XV-85132-00-00

Unavailable

23

SCREW(3HE)

90149-04278-00

Unavailable

24

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

25

NUT, U (7LY)

95617-04100-00

Unavailable

26

HANGER, HELMET

4XV-21398-00-00

Unavailable

27

BOLT, FLANGE

95817-06016-00

Unavailable

28

DAMPER 2

4XV-21639-00-00

Unavailable

29

COVER, TAILLIGHT

4XV-2172X-00-00

Unavailable

30

SEAL

4XV-21669-00-00

Unavailable

31

DAMPER (L.H)

1AE-2834E-00-00

Unavailable

32

PLATE, EPA 2 (CALIFORNIA)

4XV-2179R-00-00

Unavailable

32

PLATE, EPA 1 (NON CALIFORNIA)

4XV-2179V-00-00

Unavailable

33

TOOL KIT

4XV-28100-00-00

Unavailable

34

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

35

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

36

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

37

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

38

BRACKET, REAR STAY

4XV-21688-00-00

Unavailable

39

SCREW(3HE)

90149-04278-00

Unavailable

40

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

41

NUT, U (7LY)

95617-04100-00

Unavailable

42

BRACKET, LICENSE

4XV-84751-00-00

Unavailable

43

WASHER, PLATE

90201-06380-00

Unavailable

44

NUT, SELF-LOCKING

95617-06100-00

Unavailable
