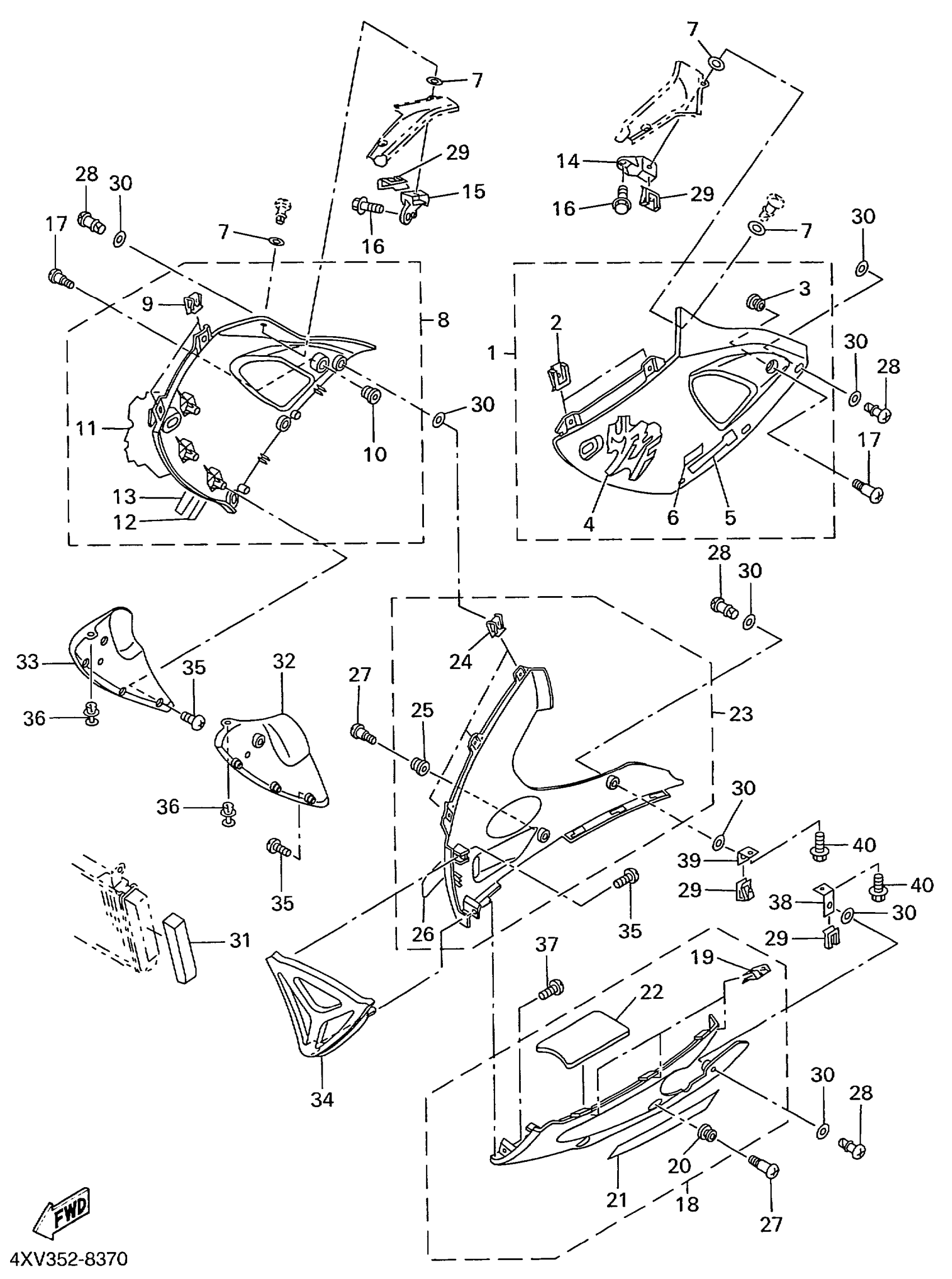

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1 (BLUISH WHITE COCKTAIL 1)
4XV-Y283U-00-P0
Unavailable
1
PANEL ASSEMBLY 1 (DEEP PURPLISH BLUE METALLIC C)
4XV-Y283U-10-P1
Unavailable
4
. GRAPHIC 1 (BLUISH WHITE COCKTAIL 1)
4XV-28391-00-00
Unavailable
4
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
4XV-28391-10-00
Unavailable
5
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28328-00-00
Unavailable
5
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28328-10-00
Unavailable
6
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28338-00-00
Unavailable
6
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28338-10-00
Unavailable
8
PANEL ASSEMBLY 2 (BLUISH WHITE COCKTAIL 1)
4XV-Y283V-00-P0
Unavailable
8
PANEL ASSEMBLY 2 (DEEP PURPLISH BLUE METALLIC C)
4XV-Y283V-10-P1
Unavailable
11
. GRAPHIC 1 (BLUISH WHITE COCKTAIL 1)
4XV-28391-00-00
Unavailable
11
. GRAPHIC 1 (DEEP PURPLISH BLUE METALLIC C)
4XV-28391-10-00
Unavailable
12
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28328-00-00
Unavailable
12
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28328-10-00
Unavailable
13
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28338-00-00
Unavailable
13
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28338-10-00
Unavailable
14
BRACKET 1
4XV-2836A-00-00
Unavailable
15
BRACKET 2
4XV-2836E-00-00
Unavailable
16
BOLT, WITH WASHER
90119-06226-00
Unavailable
17
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
18
COVER ASSEMBLY, UNDER (BLUISH WHITE COCKTAIL 1)
4XV-Y2808-00-P0
Unavailable
18
COVER ASSEMBLY, UNDER (DEEP PURPLISH BLUE METALLIC C)
4XV-Y2808-10-P1
Unavailable
21
. GRAPHIC 3 (BLUISH WHITE COCKTAIL 1)
4XV-28393-00-00
Unavailable
21
. GRAPHIC 3 (DEEP PURPLISH BLUE METALLIC C)
4XV-28393-10-00
Unavailable
22
. SEAT 2
4XV-2848K-00-00
Unavailable
23
COVER ASSEMBLY 2, UNDER (BLUISH WHITE COCKTAIL 1)
4XV-Y2809-00-P0
Unavailable
23
COVER ASSEMBLY 2, UNDER (DEEP PURPLISH BLUE METALLIC C)
4XV-Y2809-10-P1
Unavailable
26
. GRAPHIC 4 (BLUISH WHITE COCKTAIL 1)
4XV-28394-00-00
Unavailable
26
. GRAPHIC 4 (DEEP PURPLISH BLUE METALLIC C)
4XV-28394-10-00
Unavailable
27
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
28
HEAD
3XV-28386-00-00
Unavailable
31
DAMPER
4SV-28371-00-00
Unavailable
32
PANEL, INNER 1
4XV-2836K-10-P0
Unavailable
32
PANEL, INNER 1
4XV-2836K-10-P1
Unavailable
33
PANEL, INNER 2
4XV-2836L-10-P0
Unavailable
33
PANEL, INNER 2
4XV-2836L-10-P1
Unavailable
34
PANEL, INNER 3
4XV-2836M-10-P1
Unavailable
34
PANEL, INNER 3
4XV-2836M-10-P0
Unavailable
35
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
36
RIVET(4PH)
90269-07077-00
Unavailable
37
SCREW, TAPPING(4MV)
97707-50016-00
Unavailable
38
BRACKET 3
4XV-2836F-00-00
Unavailable
39
BRACKET 4
4XV-2836G-00-00
Unavailable
40
BOLT, FLANGE
95817-06012-00
Unavailable
