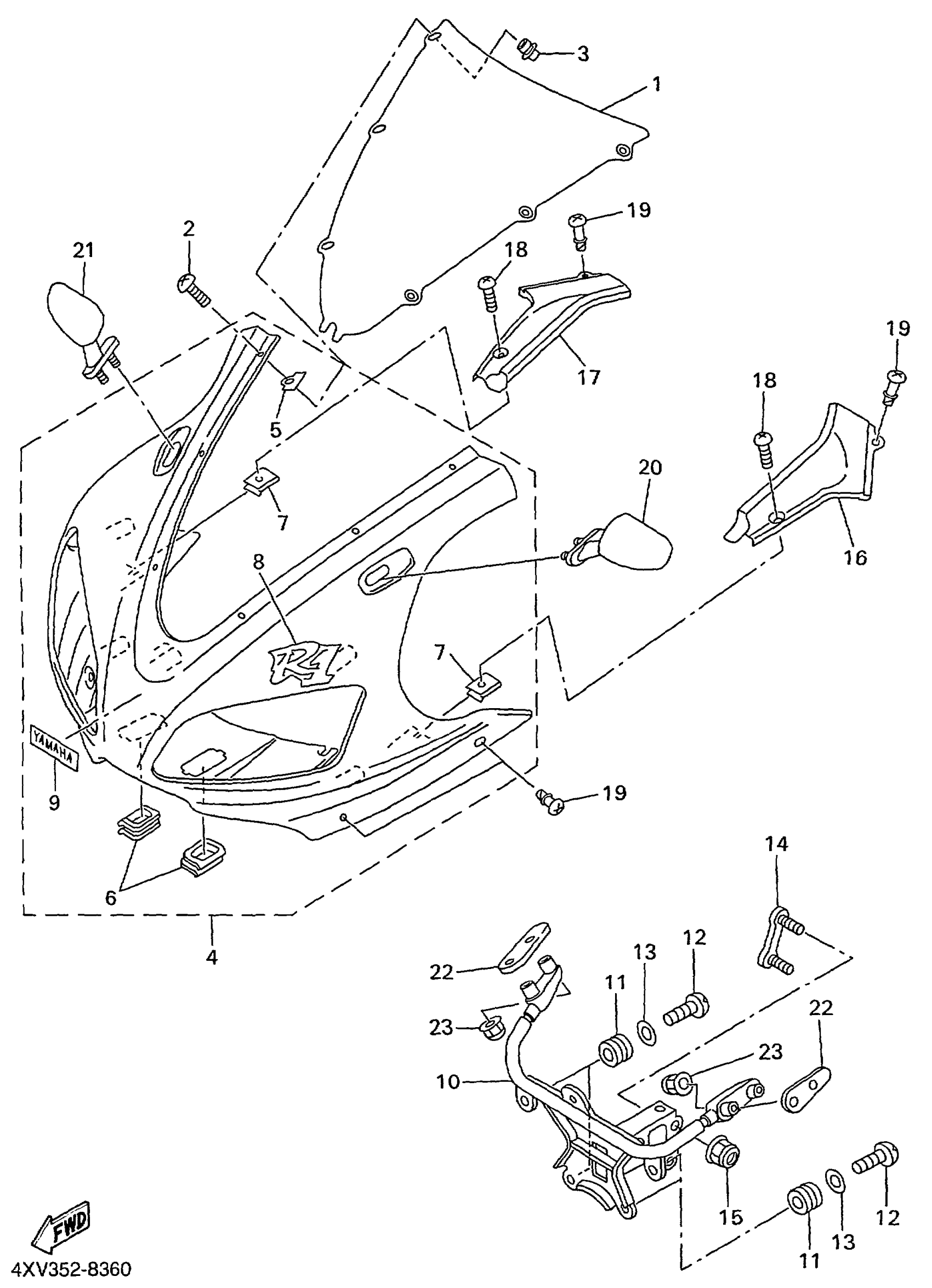

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 COWLING 1 Diagram
#
Description
Price
1
WINDSHIELD
4XV-28381-11-00
Unavailable
4
BODY, FRONT UPPER 1 (BLUISH WHITE COCKTAIL 1)
4XV-Y283G-00-0X
Unavailable
4
BODY, FRONT UPPER 1 (DEEP PURPLISH BLUE METALLIC C)
4XV-Y283G-10-1X
Unavailable
5
PROTECTOR 2
4FM-2834W-00-00
Unavailable
6
. CAP
4XV-28349-00-00
Unavailable
7
NUT, SPRING(3YX)
90183-05074-00
Unavailable
8
. EMBLEM (BLUISH WHITE COCKTAIL 1)
4XV-28315-00-00
Unavailable
8
. EMBLEM (DEEP PURPLISH BLUE METALLIC C)
4XV-28315-10-00
Unavailable
10
STAY 1
4XV-28356-00-00
Unavailable
13
WASHER PLATE 803835240000
90201-05032-00
Unavailable
14
PLATE
4XV-28336-00-00
Unavailable
15
NUT, SELF-LOCKING
90185-08169-00
Unavailable
16
PANEL, CONSOLE 1
4XV-2837L-00-00
Unavailable
17
PANEL, CONSOLE 2
4XV-2837M-00-00
Unavailable
18
SCREW, BINDING (10V)
90154-05013-00
Unavailable
19
HEAD
3XV-28386-00-00
Unavailable
20
REAR VIEW MIRROR ASSY(LEFT)
4YR-26280-01-00
Unavailable
21
REAR VIEW MIRROR ASSY(RIGHT)
4YR-26290-01-00
Unavailable
22
PLATE, MIRROR FITTING 1
4SV-26298-00-00
Unavailable
23
NUT, CROWN(1FN)
90176-06055-00
Unavailable
