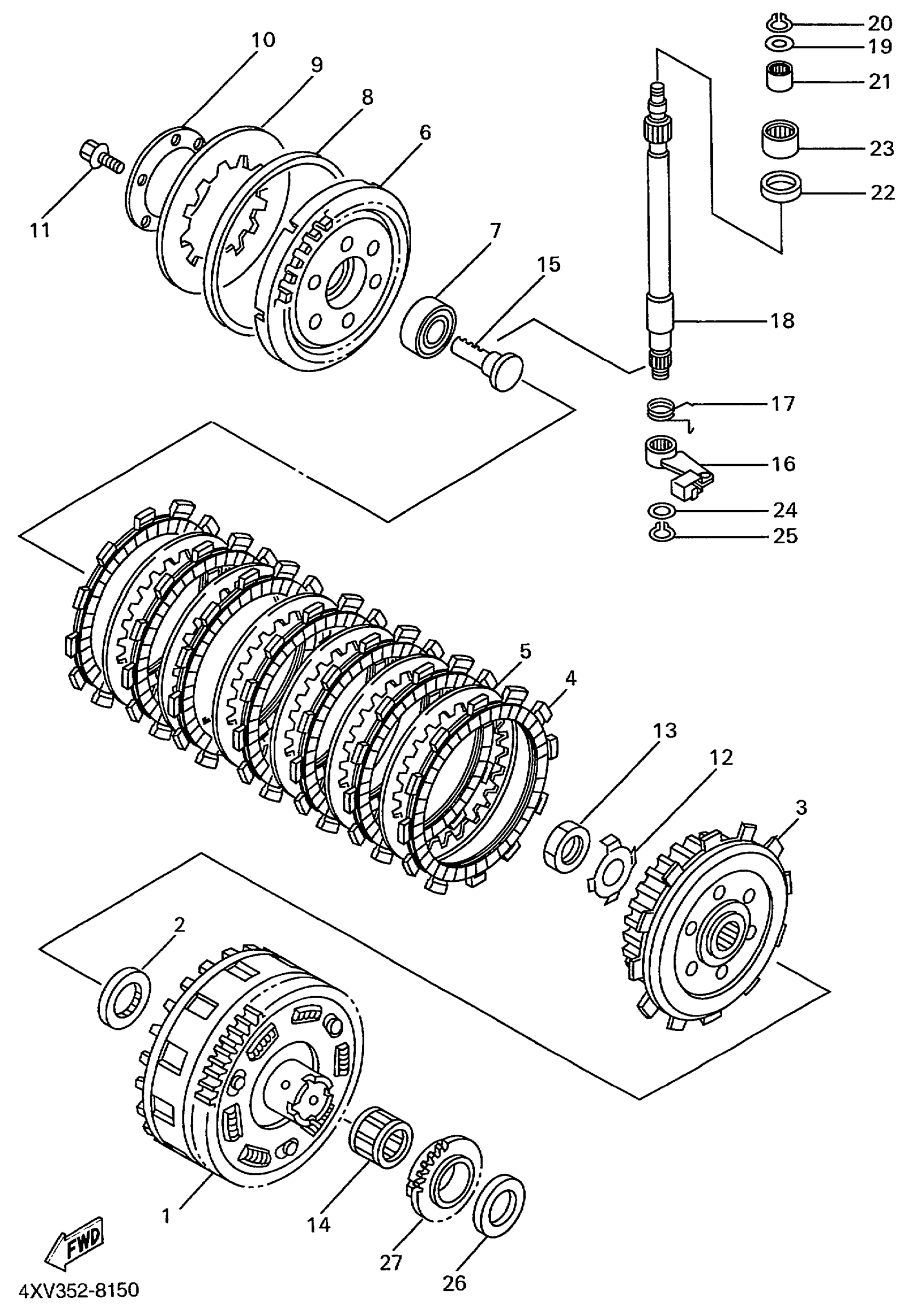

Yamaha YZFR1KC (YZFR1 CA) 4XV5 1998 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR KIT

90891-10111-KT

Unavailable

2

PLATE, THRUST 1

26H-16154-00-00

Unavailable

3

CLUTCH BOSS ASSY

4XV-16370-00-00

Unavailable

4

PLATE, FRICTION (447)

341-16321-13-00

$23.99

5

PLATE, CLUTCH 2

2H7-16325-10-00

$11.99

6

PLATE, PRESSURE 1

4XV-16351-00-00

Unavailable

7

BEARING(2JN)

93306-00315-00

$33.99

8

HOUSING, SPRING

36Y-16335-00-00

$36.99

9

SPRING, CLUTCH 2

36Y-16334-00-00

$120.99

10

PLATE, PRESSURE 2

1TX-16352-00-00

$37.99

11

BOLT, FLANGE

95817-06025-00

Unavailable

12

WASHER, LOCK (26H)

90215-25218-00

$9.49

13

NUT (26H)

90170-20323-00

Unavailable

14

BEARING

93310-228S5-00

$43.99

15

ROD, PUSH 1

4XV-16356-01-00

$58.99

16

PUSH LEVER ASSY

4XV-16340-01-00

Unavailable

17

SPRING, TORSION

90508-164B2-00

Unavailable

18

AXLE, PUSH LEVER

4XV-16382-00-00

Unavailable

19

WASHER(6TA)

92907-08600-00

Unavailable

20

CIRCLIP

99080-07600-00

Unavailable

21

BEARING

93317-11096-00

Unavailable

22

OIL SEAL (3X3)

93102-15212-00

Unavailable

23

BRG,CYL-CAL ROLLER 16G TM

93315-31502-00

Unavailable

24

WASHER, PLATE (2W5)

90201-10614-00

Unavailable

25

CIRCLIP(J51)

99080-09600-00

Unavailable

26

PLATE, THRUST 1

4XV-16154-00-00

Unavailable

27

SPROCKET, DRIVE

4XV-13354-00-00

Unavailable
