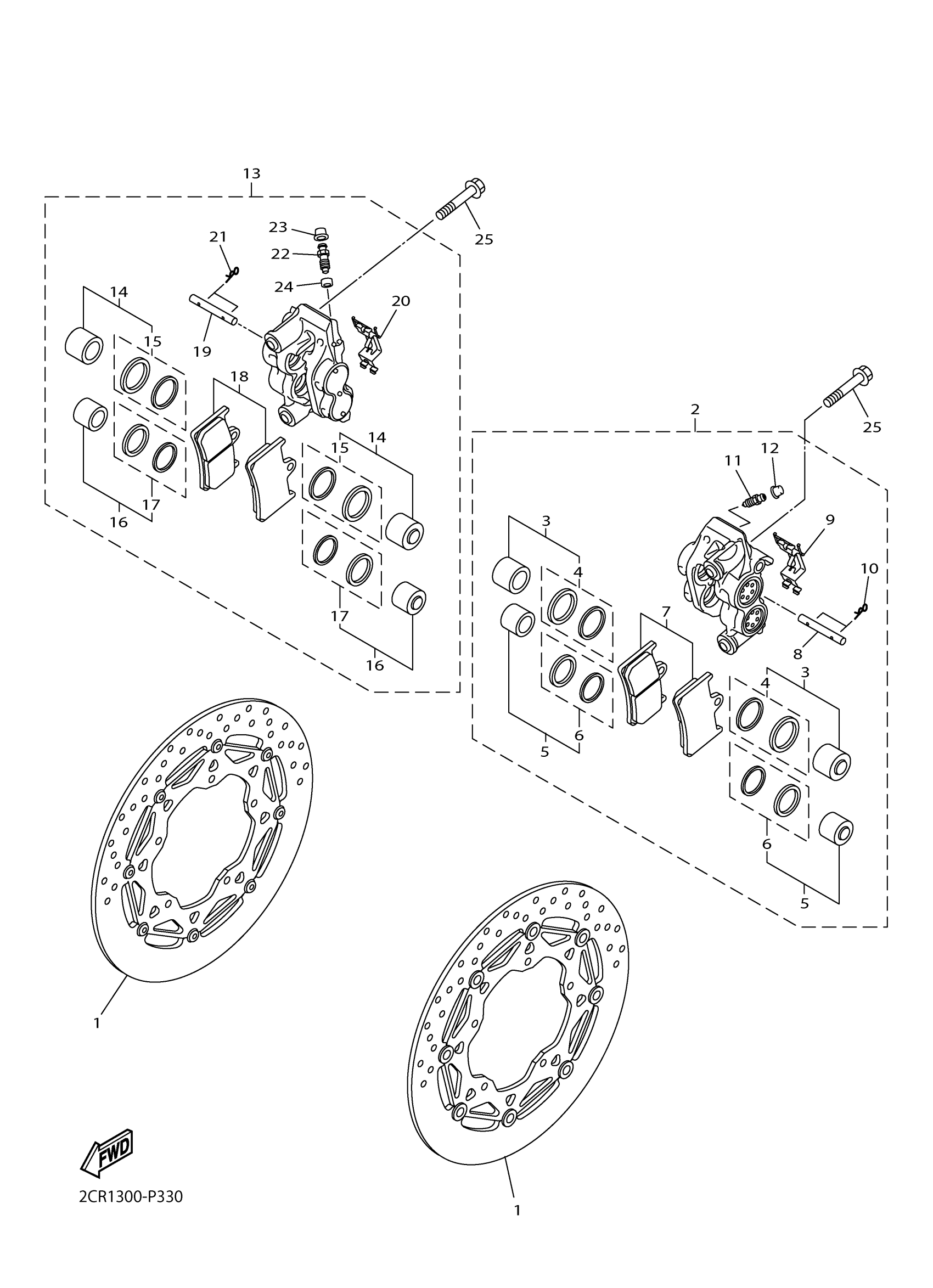

Yamaha YZFR1K1R (YZFR1) BX4F0 2019 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

2CR-2581T-00-00

Unavailable

2

CALIPER ASSY (LEFT)

2CR-2580T-00-00

Unavailable

3

PISTON ASSY, CALIP

5PW-25802-00-00

$97.99

4

CALIPER SEAL KIT

5PW-25803-00-00

$17.49

5

PISTON ASSY, CALIP

5PW-25802-10-00

$97.99

6

CALIPER SEAL KIT

5PW-25803-10-00

$17.49

7

BRAKE PAD KIT

2C0-25805-00-00

$61.99

8

PIN, PAD

4SV-25924-00-00

$42.99

9

SUPPORT, PAD

13S-25919-00-00

$27.99

10

CLIP, PAD PIN

3GM-25925-00-00

$11.99

11

SCREW, BLEED

1J3-25824-00-00

$5.49

12

CAP

306-25825-01-00

$9.99

13

CALIPER ASSY (RIGHT)

2CR-2580U-00-00

Unavailable

14

PISTON ASSY, CALIP

5PW-25802-00-00

$97.99

15

CALIPER SEAL KIT

5PW-25803-00-00

$17.49

16

PISTON ASSY, CALIP

5PW-25802-10-00

$97.99

17

CALIPER SEAL KIT

5PW-25803-10-00

$17.49

18

BRAKE PAD KIT

2C0-25805-00-00

$61.99

19

PIN, PAD

4SV-25924-00-00

$42.99

20

SUPPORT, PAD

13S-25919-00-00

$27.99

21

CLIP, PAD PIN

3GM-25925-00-00

$11.99

22

SCREW, BLEED

5VS-25824-00-00

Unavailable

23

CAP

306-25825-01-00

$9.99

24

RUBBER, BUSHING

5VS-25975-00-00

Unavailable

25

BOLT, FLANGE

90105-10397-00

Unavailable
