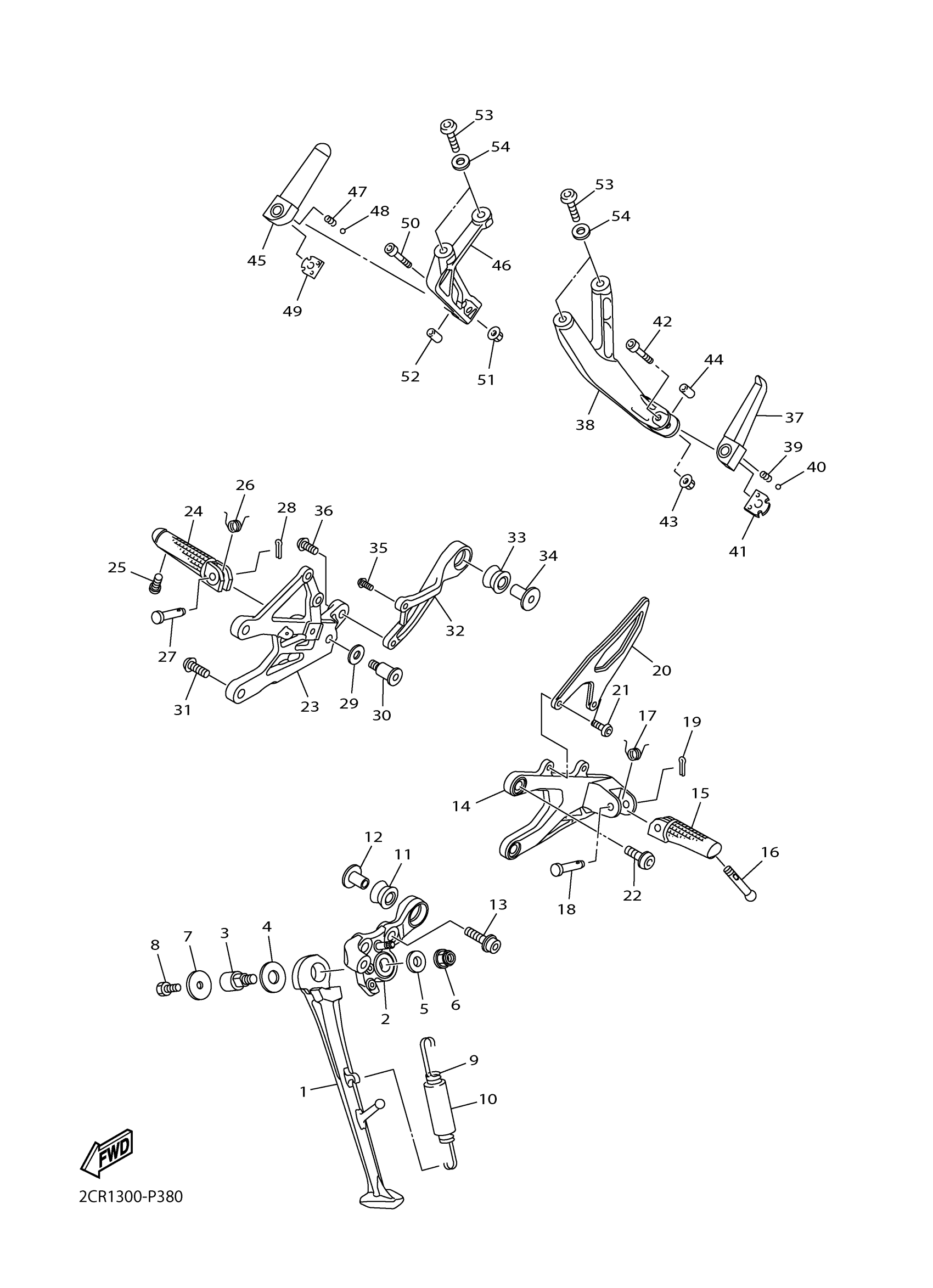

Yamaha YZFR1JL (YZFR1) BX470 2018 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

2CR-27311-00-00

Unavailable

2

BRACKET, SIDE STAN

2CR-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

2C0-27351-00-00

$63.99

4

WASHER, PLATE (22F)

90201-146F9-00

$7.49

5

WASHER, PLATE

90201-10035-00

$4.19

6

NUT, S/L FLANGE

95602-10200-00

$4.82

7

WASHER, PLATE

90201-08050-00

$5.60

8

BOLT, HEXAGON

97017-08020-00

$9.49

9

SPRING, TENSION

90506-18008-00

$15.99

10

HOSE (L60)

90445-19002-00

$7.49

11

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

12

COLLAR

90387-08021-00

$10.49

13

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

$11.49

14

BRACKET 2

2CR-27442-00-00

$66.99

15

FOOTREST

1KB-27451-00-00

$79.99

16

BOLT

90109-08225-00

Unavailable

17

SPRING, TORSION

90508-18134-00

Unavailable

18

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

19

PIN, COTTER

91490-25020-00

Unavailable

20

PLATE 1

2CR-27445-00-00

Unavailable

21

BOLT, BUTTON HEAD

92017-06012-00

Unavailable

22

BOLT

90109-085G6-00

Unavailable

23

BRACKET 3

2CR-27443-00-00

Unavailable

24

FOOTREST

1KB-27461-00-00

Unavailable

25

BOLT

90109-08225-00

Unavailable

26

SPRING, TORSION

90508-18135-00

Unavailable

27

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

WASHER 6154275100

90201-08103-00

Unavailable

30

BOLT

4C8-27434-10-00

Unavailable

31

BOLT

90109-085G6-00

Unavailable

32

BRKT.,3

2CR-2148W-00-00

Unavailable

33

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

34

COLLAR

90387-08021-00

$10.49

35

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

36

BOLT, BUTTON

92017-08016-00

Unavailable

37

FOOTREST, REAR 1

5JJ-27431-10-00

Unavailable

38

BRACKET 4

2CR-2741L-01-00

Unavailable

39

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

40

BALL

93501-04011-00

Unavailable

41

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

42

BOLT(J17)

91312-06035-00

Unavailable

43

NUT, U FLANGE

95604-06200-00

Unavailable

44

COLLAR (8H9)

90387-06697-00

Unavailable

45

FOOTREST, REAR 2

5JJ-27441-10-00

Unavailable

46

BRACKET 5

2CR-2742L-01-00

Unavailable

47

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

48

BALL

93501-04011-00

Unavailable

49

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

50

BOLT(J17)

91312-06035-00

Unavailable

51

NUT, U FLANGE

95604-06200-00

Unavailable

52

COLLAR (8H9)

90387-06697-00

Unavailable

53

BOLT (3XF1)

90110-08220-00

Unavailable

54

WASHER, FOOTREST

13S-27417-00-00

Unavailable
