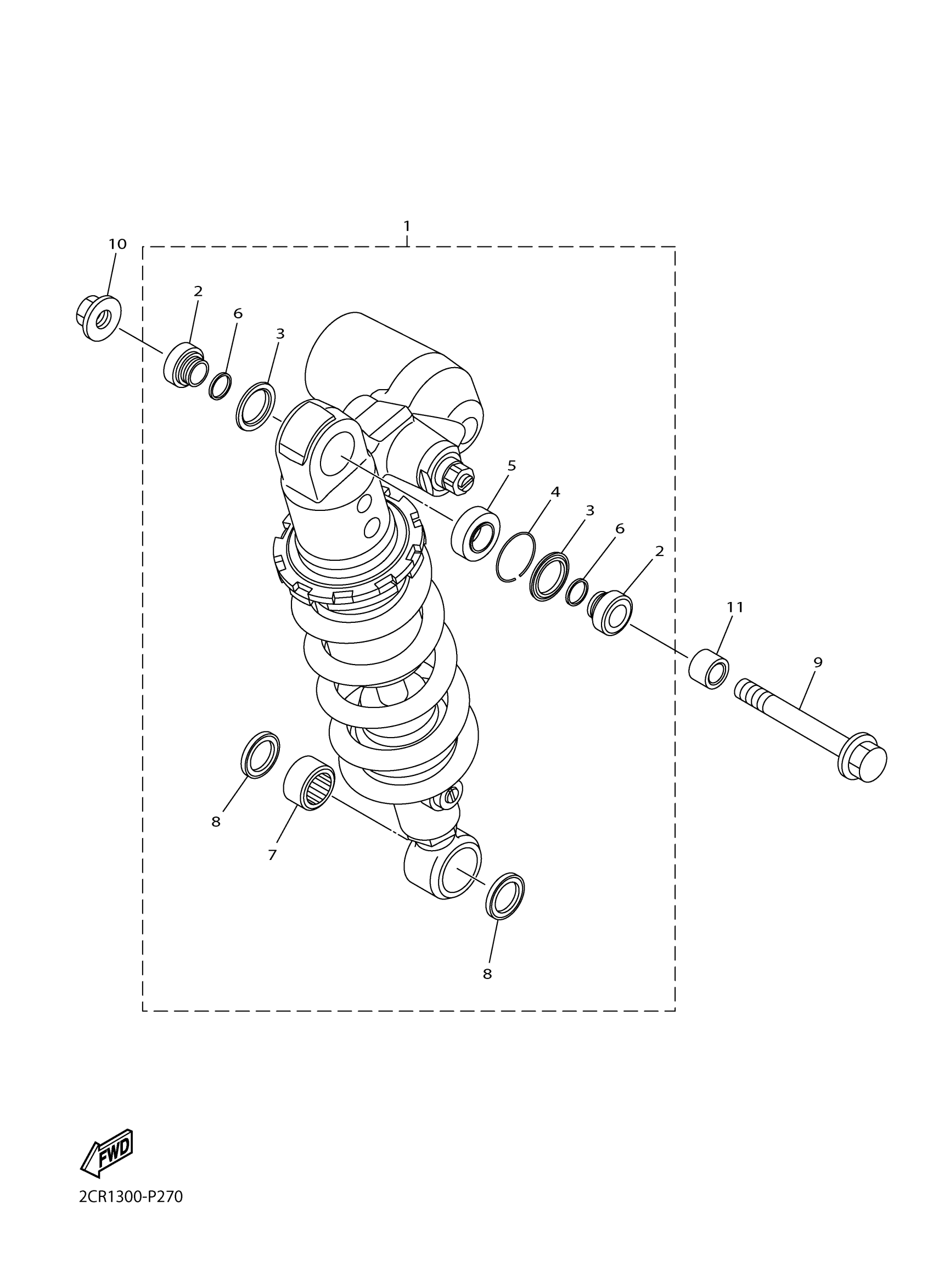

Yamaha YZFR1JL (YZFR1) BX470 2018 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2CR-22210-30-00

$881.81

2

COLLAR, DISTANCE

2CR-22253-00-00

$12.32

3

SEAL, DUST

3JE-22475-00-00

$9.87

4

CIRCLIP

5DH-23183-00-00

$4.56

5

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$45.38

6

SEAL, RING

4EW-22474-00-00

$5.69

7

BEARING

93315-31758-00

$32.40

8

OIL SEAL

93109-17071-00

$6.45

9

BOLT, WASHER BASED(3MA)

90105-10609-00

$5.91

10

NUT, S/L FLANGE

95602-10200-00

$2.14

11

COLLAR

90387-1013U-00

$18.78
