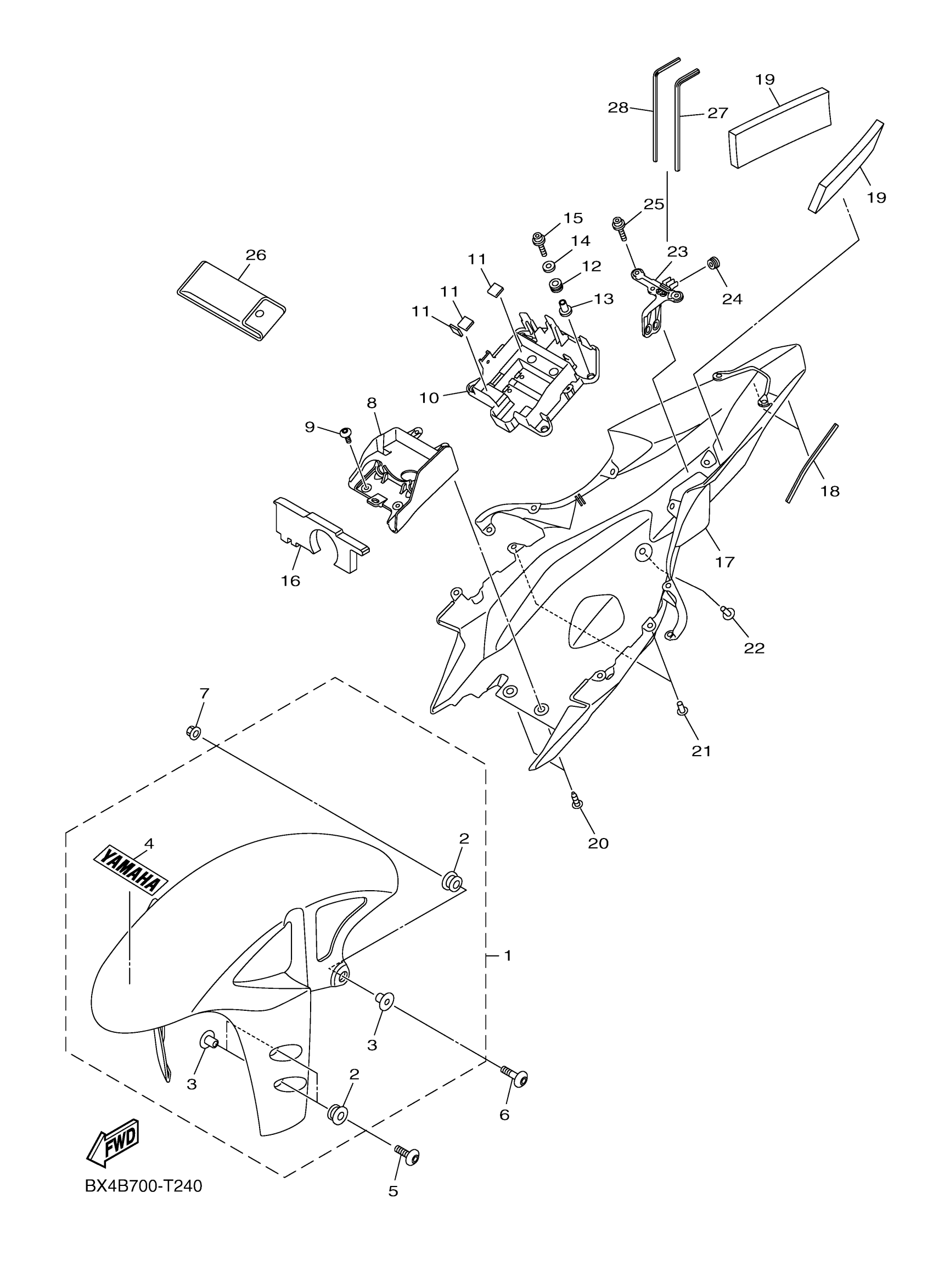

Yamaha YZFR1JL (YZFR1) BX470 2018 FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

14B-Y2151-00-P0

Unavailable

2

GROMMET(53Y)

90480-12072-00

$8.49

3

COLLAR

90387-06159-00

$8.49

5

BOLT

90111-06043-00

$4.46

6

BOLT

90111-06030-00

$4.41

7

NUT, FLANGE

95702-06500-00

$2.39

8

BOX, BATTERY 1

2CR-8212B-00-00

$42.99

9

BOLT,HEX. SOCKET BUTTON

90111-06116-00

$7.49

10

BOX, BATTERY 2

2CR-8212C-00-00

$24.99

11

DAMPER

13S-21649-00-00

$6.99

12

GROMMET (462)

90480-13018-00

$8.49

13

COLLAR(8Y7)

90387-073M2-00

$8.49

14

WASHER, PLATE

90201-06088-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

16

DAMPER 1

2CR-21638-00-00

Unavailable

17

FENDER, REAR

2CR-21611-01-00

Unavailable

18

DAMPER, PLATE 1

3C5-2414H-00-00

Unavailable

19

DAMPER, PLATE

90520-20003-00

Unavailable

20

RIVET

90269-06008-00

Unavailable

21

RIVET

90269-05005-00

Unavailable

22

RIVET(4JH)

90269-07076-00

Unavailable

23

BRACKET, TAILLIGHT

2CR-2117E-01-00

Unavailable

24

GROMMET

90480-10003-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

26

TOOL KIT

2CR-28100-01-00

Unavailable

27

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

28

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable
