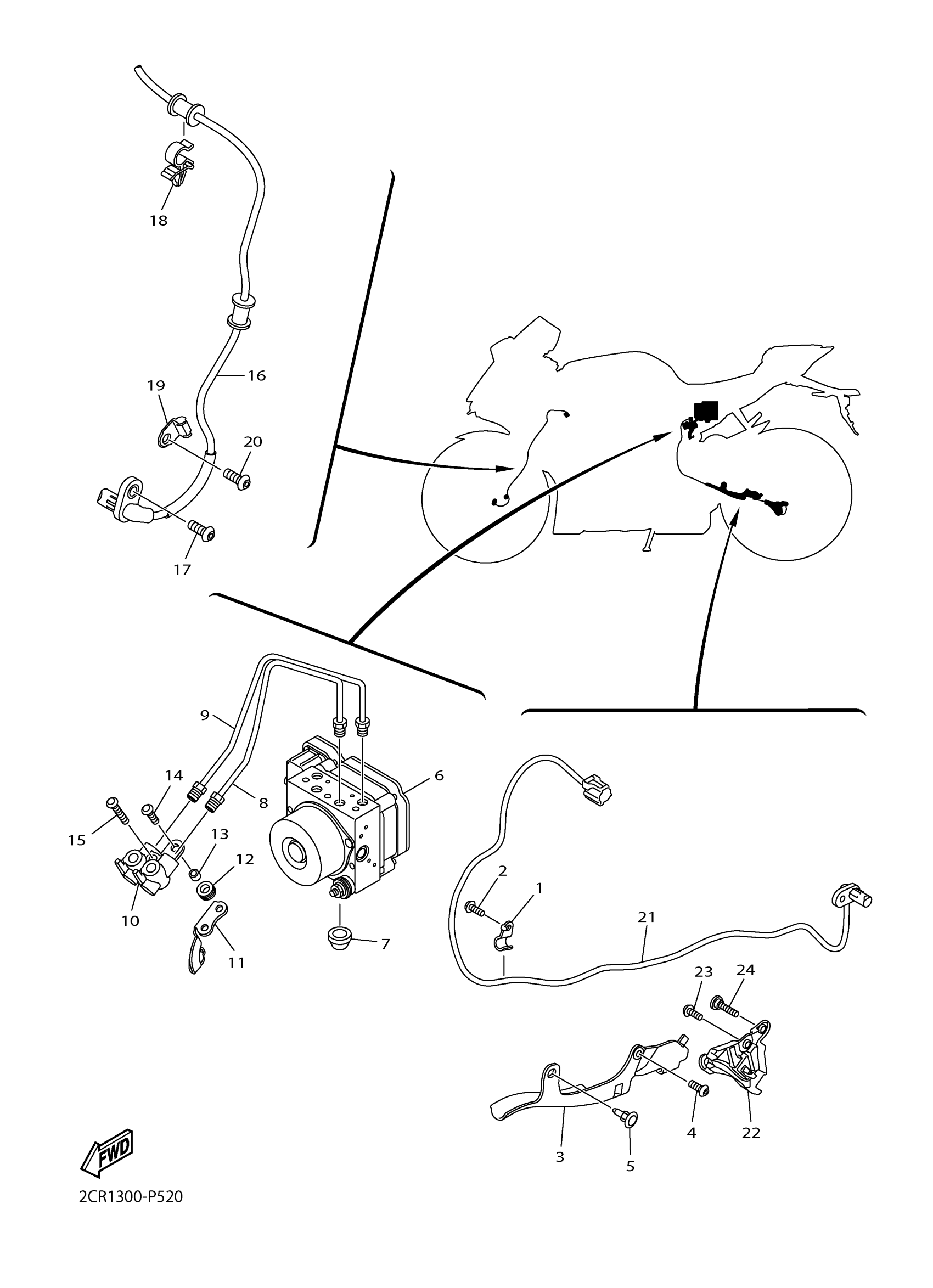

Yamaha YZFR1JL (YZFR1) BX470 2018 ELECTRICAL 3 Diagram

#

Description
Price

1

HOOK

2CR-2216F-00-00

$4.89

2

BOLT, BUTTON HEAD

92017-06012-00

$7.49

3

COVER

2CR-2219X-00-00

Unavailable

4

BOLT, BUTTON HEAD

92012-06016-00

$8.49

5

RIVET

90269-07007-00

$4.08

6

HYDRAULIC UNIT ASS

2CR-85930-09-00

Unavailable

7

CAP, DAMPER

2CR-85916-00-00

Unavailable

8

PIPE, BRAKE

2CR-25871-00-00

Unavailable

9

PIPE, BRAKE 2

2CR-25882-00-00

Unavailable

10

JOINT

2CR-25885-00-00

$62.99

11

BRACKET, CABLE

2CR-27251-00-00

Unavailable

12

GROMMET

90480-11006-00

$4.41

13

COLLAR (3L6)

90387-06761-00

$9.49

14

BOLT, BUTTON

92017-06020-00

$3.76

15

BOLT, BUTTON

92017-06035-00

$3.13

16

WHEEL SENSOR ASSY, FRONT

2CR-85970-01-00

Unavailable

17

BOLT, BUTTON HEAD

92017-06014-00

Unavailable

18

CLAMP(3LD)

90464-09129-00

Unavailable

19

HOLDER, CABLE

2CR-23317-00-00

Unavailable

20

BOLT, BUTTON HEAD

92017-06012-00

$7.49

21

WHEEL SENSOR ASSY, REAR

2CR-85980-01-00

Unavailable

22

PROTECTOR

2CR-27491-01-00

Unavailable

23

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

24

BOLT

90109-06234-00

Unavailable
