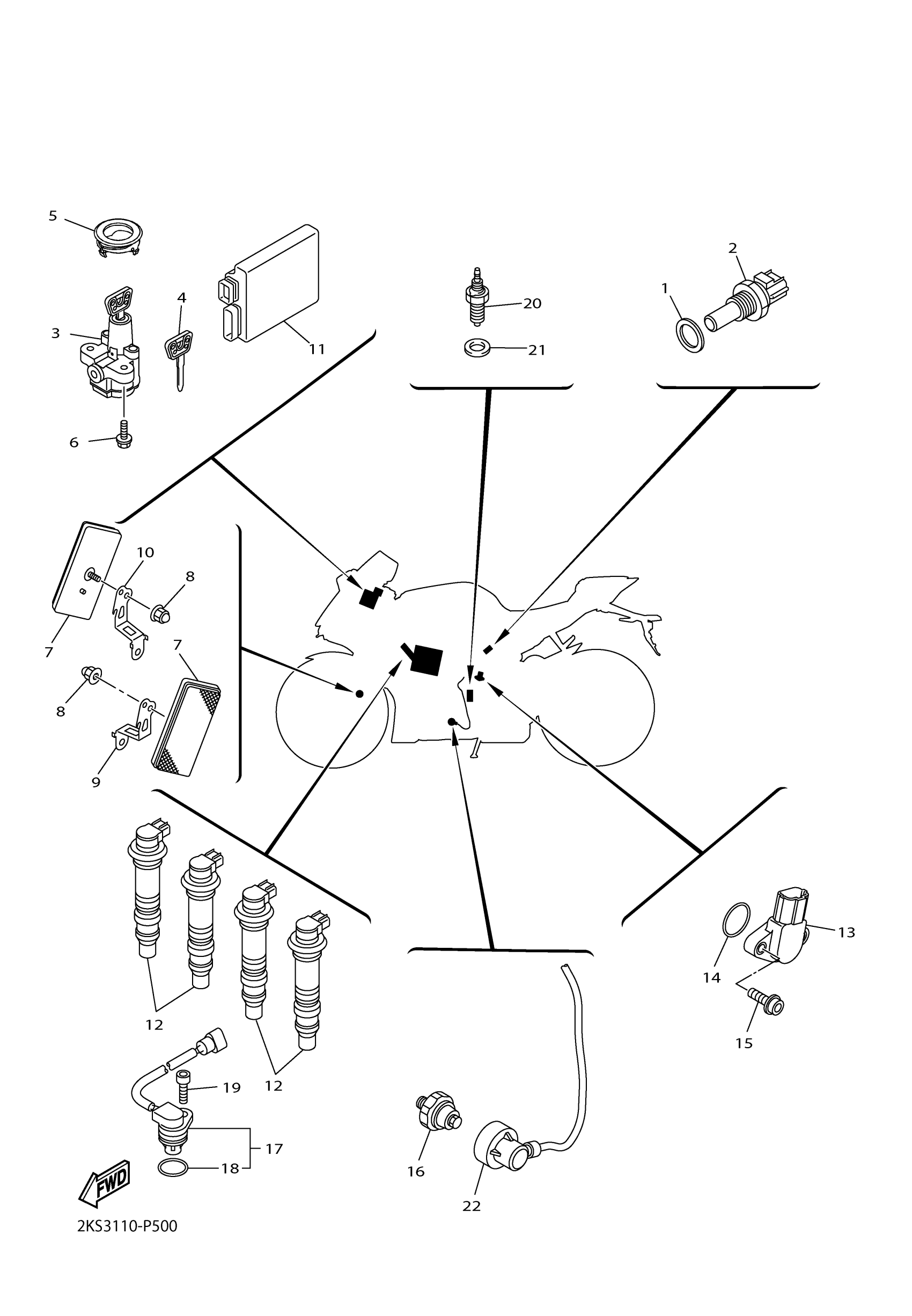

Yamaha YZFR1JL (YZFR1) BX470 2018 ELECTRICAL 1 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

MAIN SWITCH STEERING LOCK

2CR-82501-11-00

$173.99

4

BLANK KEY

4BH-82511-09-00

$30.99

5

CAP, SWITCH

36P-82552-00-00

$15.49

6

BOLT

90109-08196-00

$8.49

7

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

8

NUT, FLANGE

95702-05500-00

$0.38

9

BRACKET, REFLECTOR

2CR-85112-00-00

Unavailable

10

BRACKET, REFLECTOR

2CR-85122-00-00

$27.99

11

ENGINE CONTROL UNIT ASSY

BX4-8591A-41-00

$1,776.99

12

IGNITION COIL ASSY

2CR-82310-00-00

$137.99

13

SENSOR, GEAR POSIT

2CR-85899-00-00

$95.99

14

O-RING

93210-17008-00

Unavailable

15

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

16

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

Unavailable

17

SENSOR, CAM POSITION

5VY-85896-02-00

Unavailable

18

O-RING

4D9-81168-00-00

Unavailable

19

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

20

NEUTRAL SWITCH ASSY

3GB-82540-01-00

Unavailable

21

GASKET (1KH,1.0T)

90430-10148-00

Unavailable

22

WIRE, SUB LEAD

B3L-82509-11-00

Unavailable
