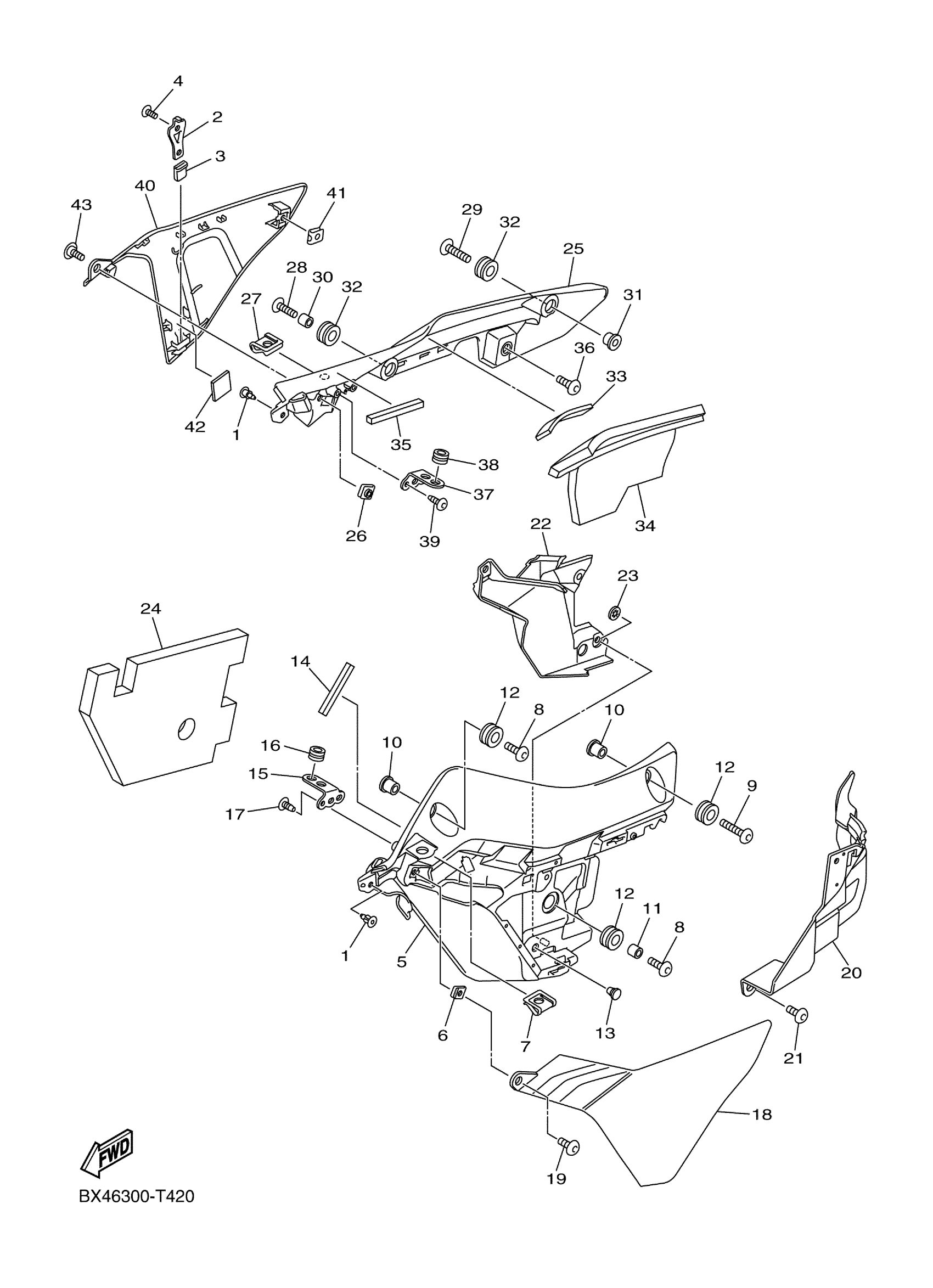

Yamaha YZFR1JL (YZFR1) BX470 2018 COWLING 3 Diagram
#
Description
Price
8
SCREW(4DN)
90149-06302-00
Unavailable
16
GROMMET(3GM)
90480-10517-00
Unavailable
17
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
18
COVER 1
2CR-2842M-01-P2
Unavailable
19
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
20
COVER 3
2CR-2843J-01-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
22
BRACKET 3
2CR-2836F-00-00
Unavailable
23
NUT, SPRING (6E5)
90183-05M02-00
Unavailable
24
DAMPER 1
2CR-28415-01-00
Unavailable
25
BRACKET 2
2CR-2836E-00-00
Unavailable
28
SCREW(4DN)
90149-06302-00
Unavailable
33
DAMPER, PLATE
90520-04012-00
Unavailable
34
DAMPER, 4
2CR-28455-00-00
Unavailable
36
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
37
BRACKET 11
2CR-2833H-00-00
Unavailable
38
GROMMET(3GM)
90480-10517-00
Unavailable
39
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
40
COVER 2
2CR-2842N-00-P2
Unavailable
42
DAMPER 1
3TB-28217-00-00
Unavailable
43
BOLT,HEX. SOCKET BUTTON
90111-05045-00
Unavailable
