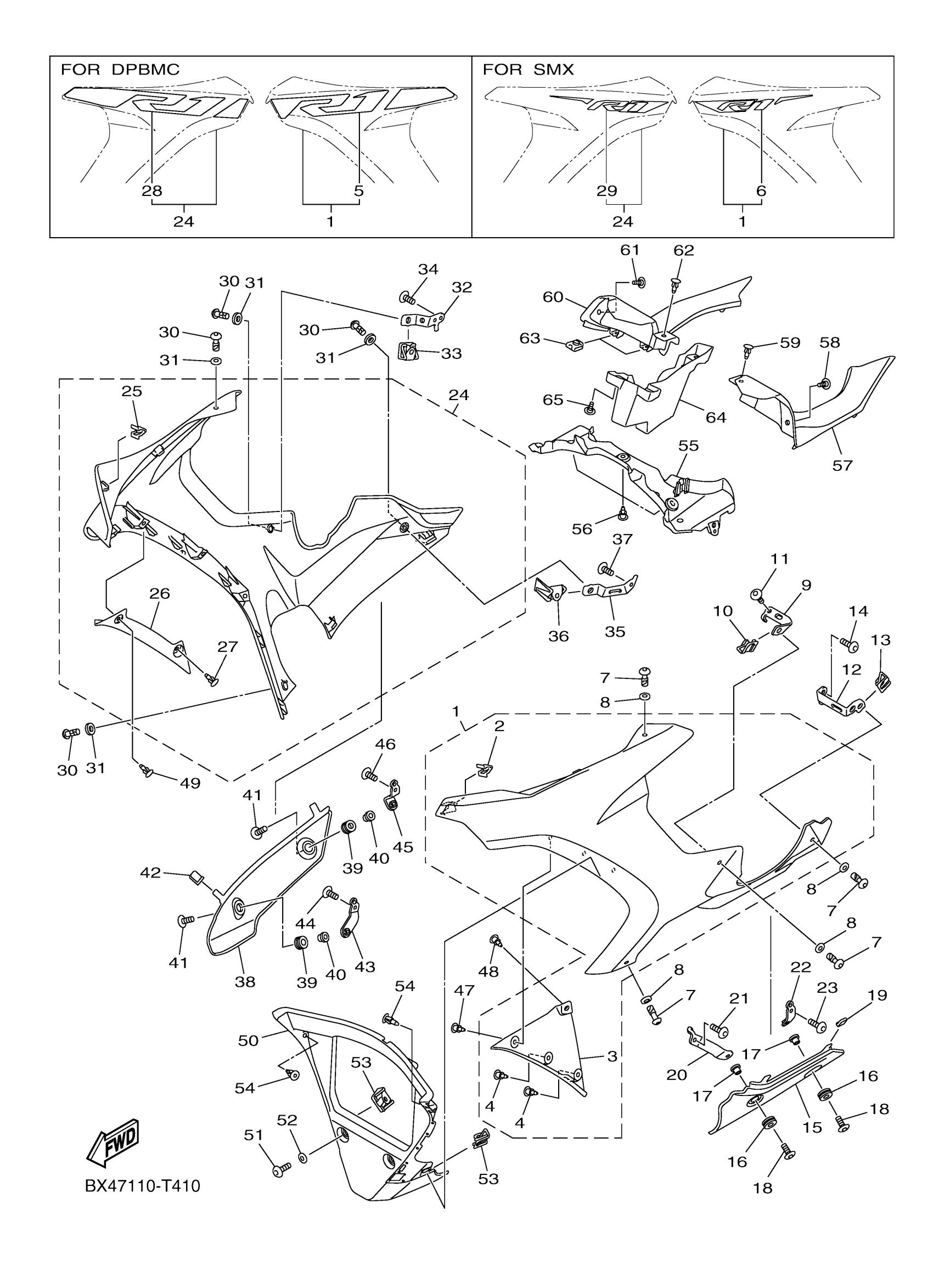

Yamaha YZFR1JL (YZFR1) BX470 2018 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
2CR-Y283U-F0-P2
Unavailable
6
GRAPHIC 1
BX4-28391-30-00
Unavailable
15
PROTECTOR 1
2CR-2834V-10-00
Unavailable
17
COLLAR
90387-06307-00
Unavailable
18
BOLT
90111-06038-00
Unavailable
19
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
20
BRKT., 17
2CR-2833R-00-00
Unavailable
22
BRKT.,18
2CR-2833T-00-00
Unavailable
24
PANEL ASSEMBLY 2
2CR-Y283V-F0-P2
Unavailable
26
PANEL, INNER 2
2CR-2836L-00-00
Unavailable
29
GRAPHIC 2
BX4-28392-30-00
Unavailable
32
BRACKET 15
2CR-2833M-00-00
Unavailable
35
BRACKET 16
2CR-2833N-00-00
Unavailable
38
PROTECTOR 2
2CR-2834W-10-00
Unavailable
40
COLLAR
90387-06307-00
Unavailable
41
BOLT
90111-06038-00
Unavailable
42
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
43
BRKT.,19
2CR-2833U-00-00
Unavailable
45
BRKT.,20
2CR-2833V-00-00
Unavailable
47
RIVET
90269-06001-00
Unavailable
49
RIVET
90269-06001-00
Unavailable
50
PANEL, INNER 3
2CR-2836M-00-P2
Unavailable
51
SCREW(4DN)
90149-06302-00
Unavailable
52
COLLAR
90387-06309-00
Unavailable
55
STAY, HEADLIGHT
2CR-23174-00-00
Unavailable
57
PANEL, CONSOLE 1
2CR-2837L-00-00
Unavailable
58
BOLT
90111-05011-00
Unavailable
60
PANEL, CONSOLE 2
2CR-2837M-00-00
Unavailable
61
BOLT
90111-05011-00
Unavailable
63
NUT, SPRING
90183-050A6-00
Unavailable
64
BOX 1
2CR-2838K-00-00
Unavailable
65
BOLT
90111-05011-00
Unavailable
