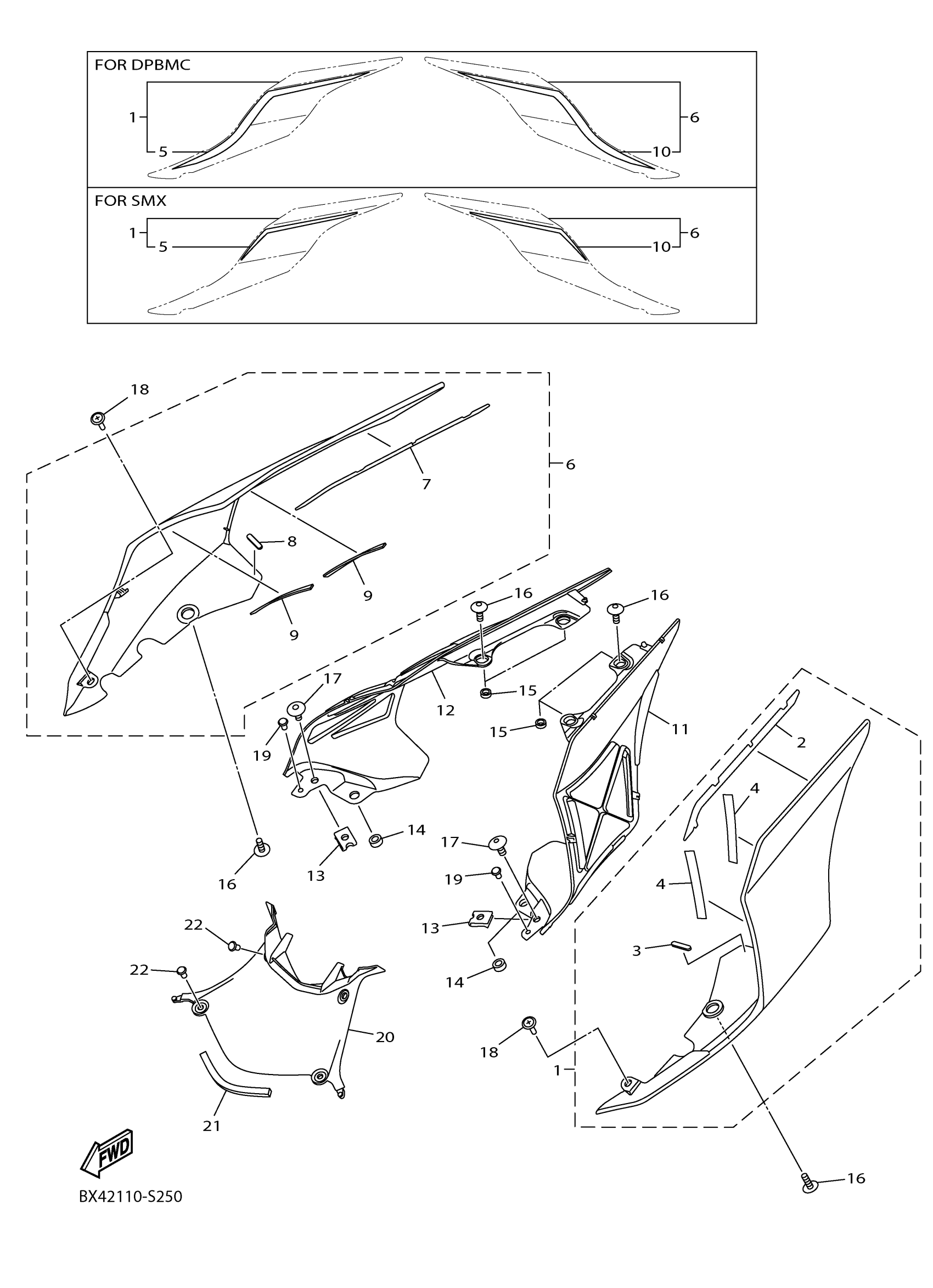

Yamaha YZFR1HL (YZFR1) BX420 2017 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

2CR-W2171-A1-P2

$180.99

2

TAPE 1

2CR-2173T-01-00

$14.49

3

TAPE 3

2CR-2173R-01-00

$2.18

4

SEAL 1

1RC-2111D-00-00

$4.63

5

GRAPHIC 1

BX4-2173E-10-00

Unavailable

6

SIDE COVER 2

2CR-W2172-A1-P2

Unavailable

7

TAPE 2

2CR-2173U-02-00

$8.99

8

TAPE 3

2CR-2173R-01-00

$2.18

9

SEAL 1

1RC-2111D-00-00

$4.63

10

GRAPHIC 2

BX4-2173F-10-00

Unavailable

11

COVER, SIDE 3

2CR-21731-00-00

$29.99

12

COVER, SIDE 4

2CR-21741-00-00

$29.99

13

NUT, SPRING(4ES)

90183-06069-00

Unavailable

14

COLLAR

90387-06106-00

$7.49

15

COLLAR

90387-06069-00

Unavailable

16

BOLT,HEX. SOCKET BUTTON

90111-06086-00

Unavailable

17

BOLT,HEX. SOCKET BUTTON

90111-06136-00

Unavailable

18

RIVET

90269-06001-00

Unavailable

19

RIVET

90269-05005-00

Unavailable

20

COVER, SIDE 5

2CR-2171E-01-00

Unavailable

21

DAMPER

4C8-21747-00-00

Unavailable

22

RIVET

90269-05001-00

Unavailable
