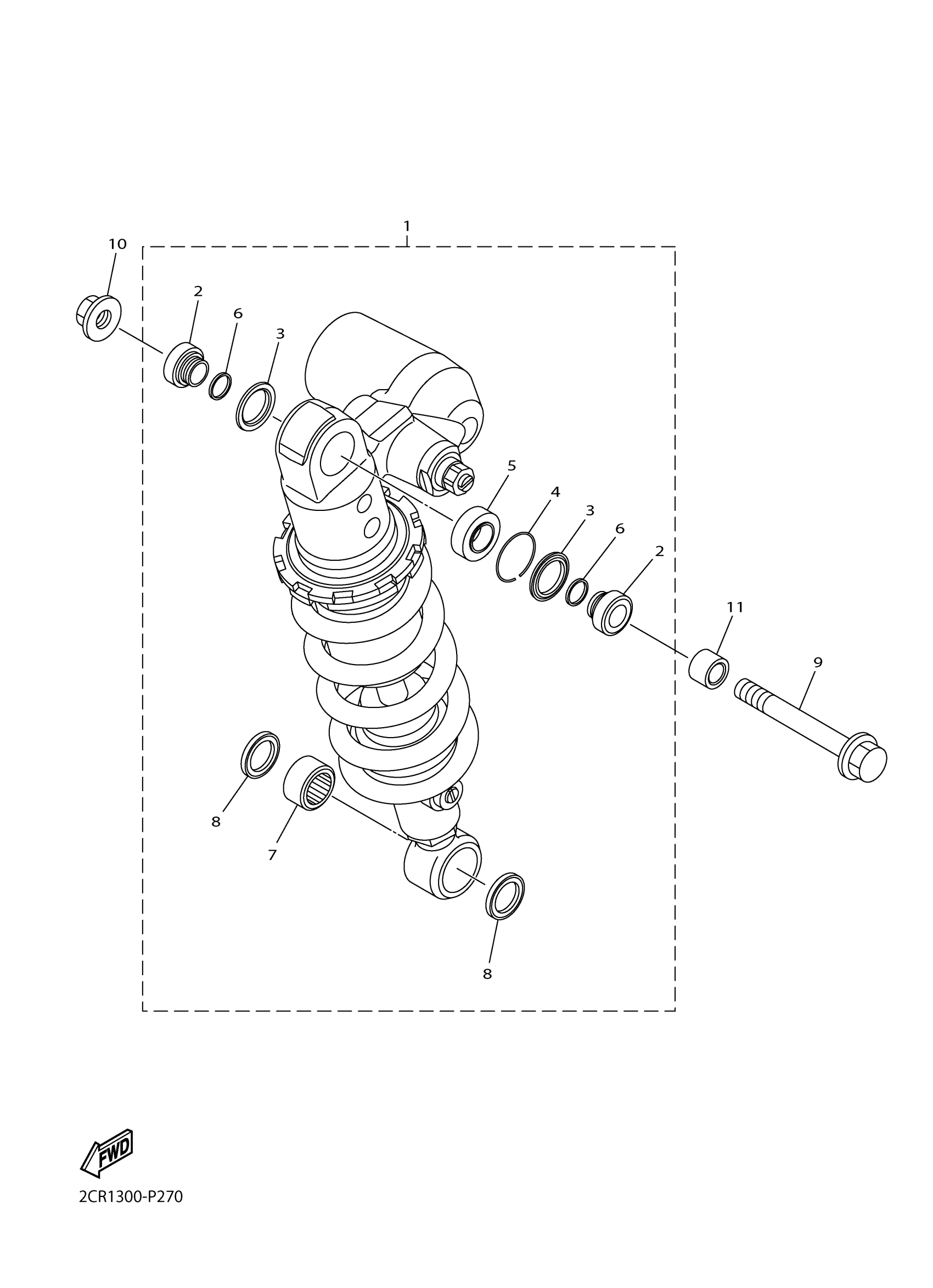

Yamaha YZFR1HL (YZFR1) BX420 2017 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2CR-22210-10-00

Unavailable

2

COLLAR, DISTANCE

2CR-22253-00-00

$14.49

3

SEAL, DUST

3JE-22475-00-00

$13.49

4

CIRCLIP

5DH-23183-00-00

$5.49

5

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

6

SEAL, RING

4EW-22474-00-00

$6.99

7

BEARING

93315-31758-00

$40.99

8

OIL SEAL

93109-17071-00

$7.49

9

BOLT, WASHER BASED(3MA)

90105-10609-00

$7.49

10

NUT, S/L FLANGE

95602-10200-00

$4.82

11

COLLAR

90387-1013U-00

$23.99
