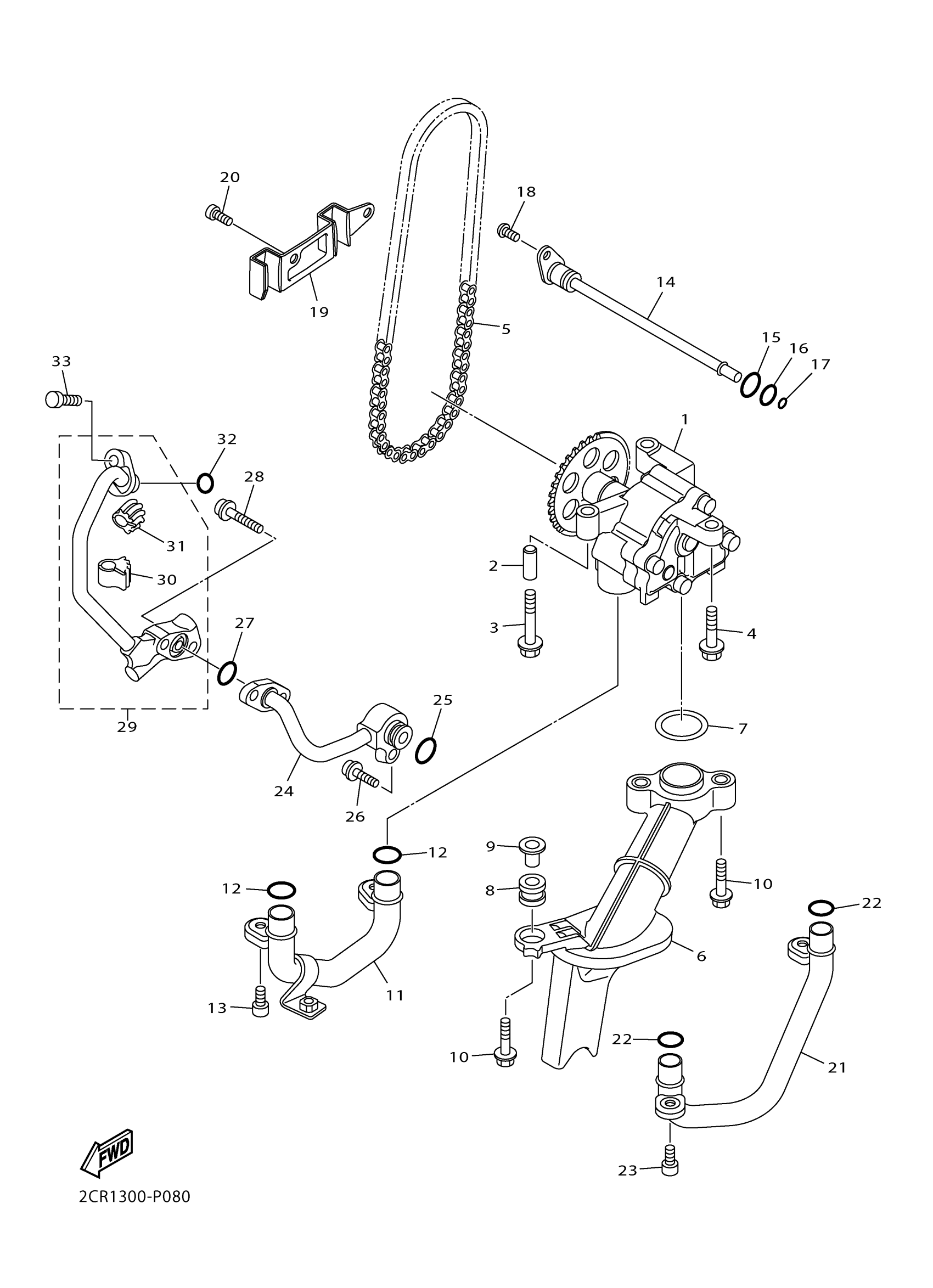

Yamaha YZFR1HL (YZFR1) BX420 2017 OIL PUMP Diagram
#
Description
Price
1
OIL PUMP ASSY
2CR-13300-00-00
Unavailable
4
BOLT, FLANGE
95817-06025-00
Unavailable
6
STRAINER HOUSING ASSY
2CR-13410-01-00
Unavailable
7
O-RING
93210-22M93-00
Unavailable
11
PIPE, OIL 1
2CR-13416-00-00
Unavailable
14
PIPE, DELIVERY 5
2CR-1316E-00-00
Unavailable
16
O-RING (5Y1)
93210-09525-00
Unavailable
17
O-RING(26H)
93210-06667-00
Unavailable
18
SCREW
90149-06156-00
Unavailable
19
HOLDER
2CR-13898-00-00
Unavailable
21
PIPE, DELIVERY 2
2CR-13171-00-00
Unavailable
22
O-RING (2H7)
93210-13361-00
Unavailable
24
OIL PIPE COMP. 1
2CR-13405-00-00
Unavailable
25
O-RING(3LD)
93210-12790-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD
90110-06396-00
Unavailable
27
O-RING(3LD)
93210-12790-00
Unavailable
28
BOLT, HEXAGON SOCKET HEAD
90110-06388-00
Unavailable
29
DELIVERY PIPE ASSY
2CR-13170-00-00
Unavailable
30
DAMPER
2CR-13159-00-00
Unavailable
31
DAMPER
2CR-13593-00-00
Unavailable
32
O-RING (1J7)
93210-09350-00
Unavailable
33
BOLT,SOCKET HEAD
91314-06025-00
Unavailable
