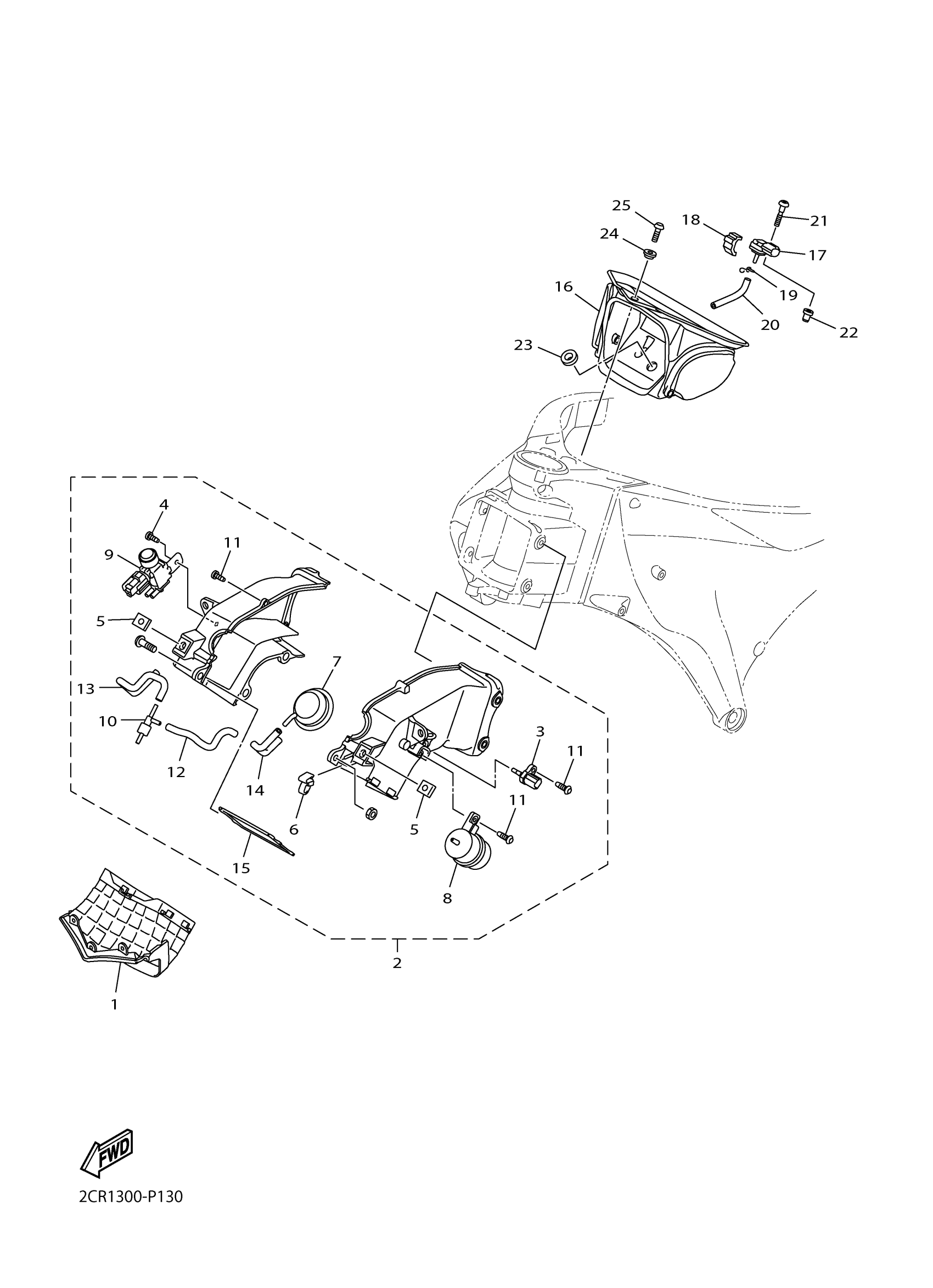

Yamaha YZFR1HL (YZFR1) BX420 2017 INTAKE 3 Diagram

#

Description
Price

1

DUCT 1

2CR-2838N-01-00

$30.99

2

DUCT ASSY

2CR-2832E-01-00

$409.99

3

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

$60.99

4

SCREW, TAPPING(61A)

97780-50612-00

Unavailable

5

NUT, SPRING

90183-060A1-00

Unavailable

6

CLAMP

90464-25008-00

$1.38

7

DIAPHRAGM

3D7-14545-00-00

Unavailable

8

TANK, SURGE

5PS-1446E-00-00

Unavailable

9

SOLENOID VALVE

5PS-1410H-01-00

Unavailable

10

VALVE, CHECK

5PS-14552-01-00

Unavailable

11

SCREW, PAN TAP.2

97707-50516-00

$0.80

12

HOSE 2

2CR-2247B-00-00

$5.49

13

HOSE 3

2CR-2247C-00-00

$6.99

14

HOSE 4

2CR-2247D-00-00

$5.49

15

GRILL, AIR INTAKE

2CR-2837N-00-00

$32.99

16

DUCT 4

2CR-2838U-01-00

Unavailable

17

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable

18

DAMPER

2CR-28372-00-00

Unavailable

19

CLIP (16G)

90467-08021-00

Unavailable

20

HOSE

90445-08028-00

Unavailable

21

BOLT

90109-04001-00

Unavailable

22

NUT

90179-04003-00

Unavailable

23

GROMMET(4FU)

90480-13567-00

Unavailable

24

COLLAR

90387-06130-00

Unavailable

25

BOLT, FLANGE

95022-06016-00

Unavailable
