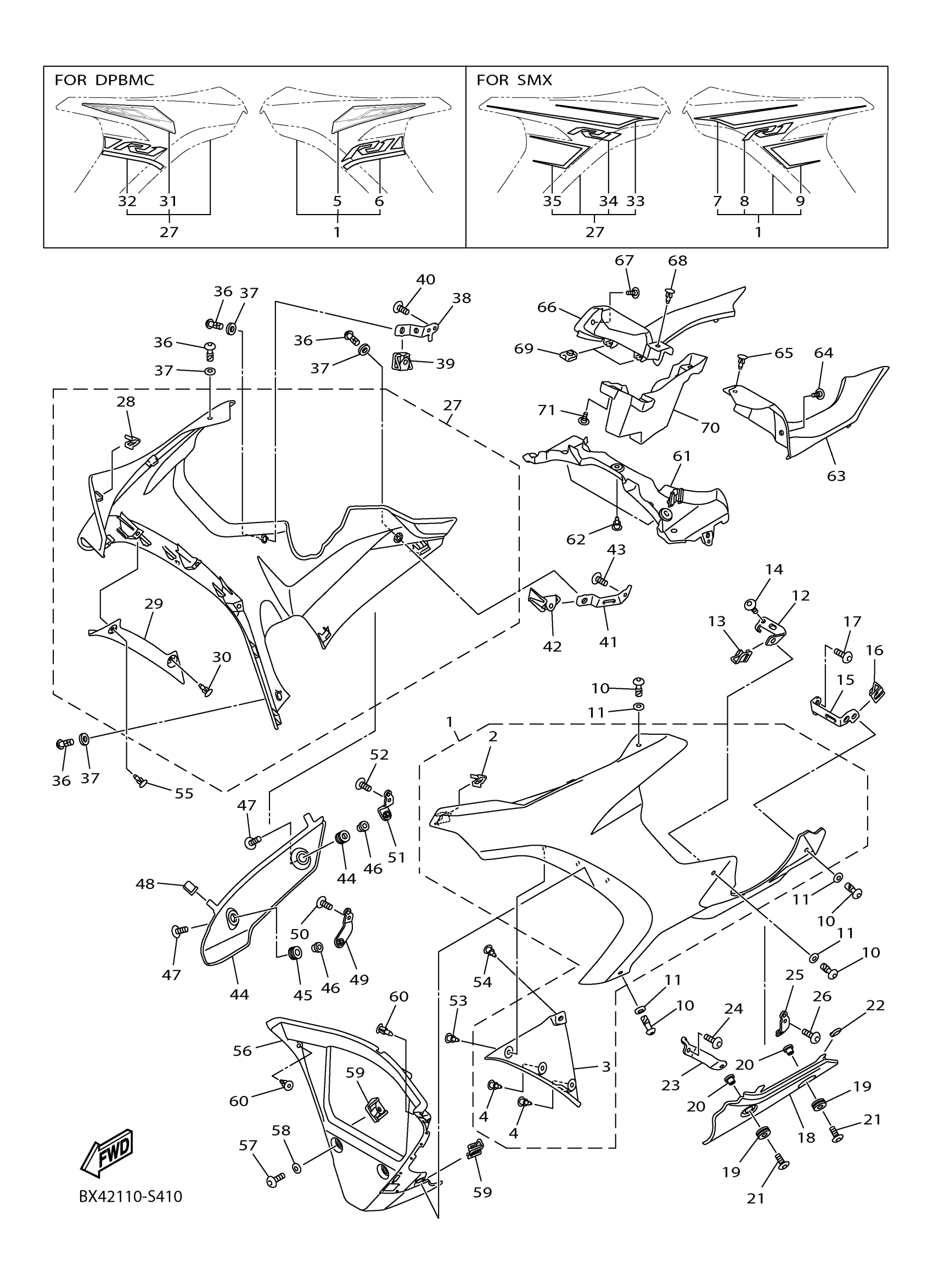

Yamaha YZFR1HL (YZFR1) BX420 2017 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSEMBLY 1

2CR-Y283U-A0-P2

Unavailable

2

CLIP

90468-040A0-00

$5.81

3

PANEL, INNER 1

2CR-2836K-00-00

$7.24

4

RIVET

90269-06008-00

$5.55

7

GRAPHIC 1

BX4-28391-10-00

Unavailable

8

EMBLEM, 1

BX4-2834C-00-00

$14.08

9

GRAPHIC 5

BX4-28398-00-00

Unavailable

10

HEAD

2CR-28386-00-00

$11.48

11

WASHER, SPECIAL 1

8HG-21757-00-00

$0.84

12

BRACKET 13

2CR-2833K-00-00

$9.26

13

PLATE, SPRING

2CR-2177L-00-00

$4.47

14

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

15

BRACKET 14

2CR-2833L-00-00

$8.88

16

PLATE, SPRING

2CR-2177L-00-00

$4.47

17

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

18

PROTECTOR 1

2CR-2834V-00-00

Unavailable

19

GROMMET(2JG)

90480-14477-00

Unavailable

20

COLLAR

90387-06307-00

Unavailable

21

BOLT

90111-06038-00

Unavailable

22

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

23

BRKT., 17

2CR-2833R-00-00

Unavailable

24

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

25

BRKT.,18

2CR-2833T-00-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

27

PANEL ASSEMBLY 2

2CR-Y283V-A0-P2

Unavailable

28

CLIP

90468-040A0-00

$5.81

29

PANEL, INNER 2

2CR-2836L-00-00

Unavailable

30

RIVET

90269-06008-00

$5.55

33

GRAPHIC 2

BX4-28392-10-00

Unavailable

34

EMBLEM 2

BX4-2835C-00-00

Unavailable

35

GRAPHIC 6

BX4-28399-00-00

Unavailable

36

HEAD

2CR-28386-00-00

$11.48

37

WASHER, SPECIAL 1

8HG-21757-00-00

$0.84

38

BRACKET 15

2CR-2833M-00-00

Unavailable

39

PLATE, SPRING

2CR-2177L-00-00

$4.47

40

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

41

BRACKET 16

2CR-2833N-00-00

Unavailable

42

PLATE, SPRING

2CR-2177L-00-00

$4.47

43

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

44

PROTECTOR 2

2CR-2834W-00-00

Unavailable

45

GROMMET(2JG)

90480-14477-00

Unavailable

46

COLLAR

90387-06307-00

Unavailable

47

BOLT

90111-06038-00

Unavailable

48

DAMPER, SIDE COVER

5PW-2411J-01-00

Unavailable

49

BRKT.,19

2CR-2833U-00-00

Unavailable

50

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

51

BRKT.,20

2CR-2833V-00-00

Unavailable

52

BOLT,HEX. SOCKET BUTTON

90111-06127-00

$5.86

53

RIVET

90269-06001-00

Unavailable

54

RIVET

90269-06008-00

$5.55

55

RIVET

90269-06001-00

Unavailable

56

PANEL, INNER 3

2CR-2836M-00-P2

Unavailable

57

SCREW(4DN)

90149-06302-00

Unavailable

58

COLLAR

90387-06309-00

Unavailable

59

PLATE, SPRING

2CR-2177L-00-00

$4.47

60

RIVET

90269-06008-00

$5.55

61

STAY, HEADLIGHT

2CR-23174-00-00

Unavailable

62

RIVET

90269-06008-00

$5.55

63

PANEL, CONSOLE 1

2CR-2837L-00-00

Unavailable

64

BOLT

90111-05011-00

Unavailable

65

RIVET

90269-06008-00

$5.55

66

PANEL, CONSOLE 2

2CR-2837M-00-00

Unavailable

67

BOLT

90111-05011-00

Unavailable

68

RIVET

90269-06008-00

$5.55

69

NUT, SPRING

90183-050A6-00

Unavailable

70

BOX 1

2CR-2838K-00-00

Unavailable

71

BOLT

90111-05011-00

Unavailable
