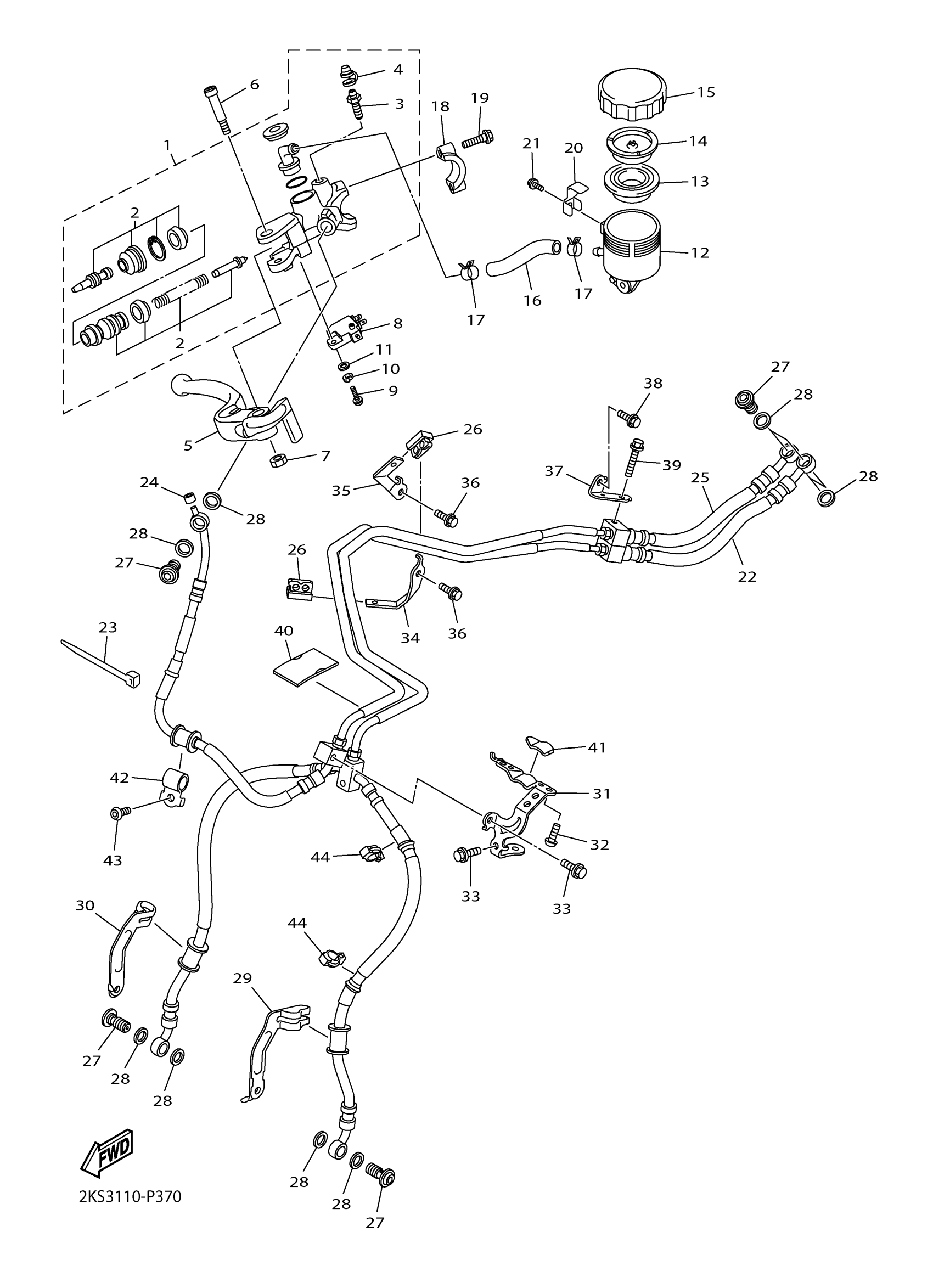

Yamaha YZFR1GY (YZFR1 60TH ANNIVERSARY) 2CRL 2016 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY 2

2CR-2580A-00-00

$176.99

2

CYLINDER KIT, MASTER

2CR-25807-00-00

$56.99

3

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

4

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

5

LEVER 2

2CR-83922-00-00

$88.99

6

BOLT, LEVER

2CR-2589F-00-00

$6.99

7

NUT, SELF-LOCKING

95617-06100-00

$8.49

8

FRONT STOP SWITCH ASSY

2CR-83980-02-00

$35.99

9

SCREW, PAN HEAD

98511-04012-00

Unavailable

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

TANK, RESERVOIR

2CR-25894-00-00

$18.49

13

DIAPHRAGM, RESERVOIR

3FV-25854-00-00

$27.99

14

BUSH,DIAPHRAGM

2CR-25855-00-00

$6.99

15

CAP, RESERVOIR

3GM-25852-50-00

$29.99

16

HOSE, RESERVOIR

2CR-25895-00-00

Unavailable

17

CLIP(3FV)

90467-12085-00

Unavailable

18

BRACKET, MASTER CY

2CR-25867-00-00

Unavailable

19

BOLT

5EB-26332-00-00

Unavailable

20

HOLDER

2CR-2589G-00-00

Unavailable

21

SCREW, WITH WASHER

3GM-2589H-00-00

Unavailable

22

BRAKE HOSE ASSY

2CR-2584A-01-00

Unavailable

23

BAND

3MA-82591-00-00

Unavailable

24

COLLAR

2CR-26259-01-00

Unavailable

25

HOSE, BRAKE

2CR-2584B-00-00

Unavailable

26

CLAMP

90464-07014-00

Unavailable

27

BOLT, UNION

90401-10172-00

Unavailable

28

GASKET

90430-10005-00

Unavailable

29

HOLDER, BRAKE HOSE

2CR-25875-00-00

Unavailable

30

HOLDER, BRAKE HOSE

2CR-25876-00-00

Unavailable

31

BRACKET

2CR-2612E-00-00

Unavailable

32

BOLT, BUTTON HEAD

92017-06016-00

Unavailable

33

BOLT, FLANGE(4DU)

95027-06014-00

Unavailable

34

BRKT 2

2CR-2612K-00-00

Unavailable

35

BRACKET 3

2CR-2612L-00-00

Unavailable

36

BOLT, FLANGE

95022-06016-00

Unavailable

37

BRACKET 4

2CR-2612M-00-00

Unavailable

38

BOLT, FLANGE

95022-06016-00

Unavailable

39

BOLT, FLANGE

95022-06030-00

Unavailable

40

DAMPER

5H0-8235Y-M0-00

Unavailable

41

DAMPER, LOCATING 1

2CR-2622F-00-00

Unavailable

42

CLAMP 1

90461-08031-00

Unavailable

43

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

44

CLAMP

90464-12013-00

Unavailable
