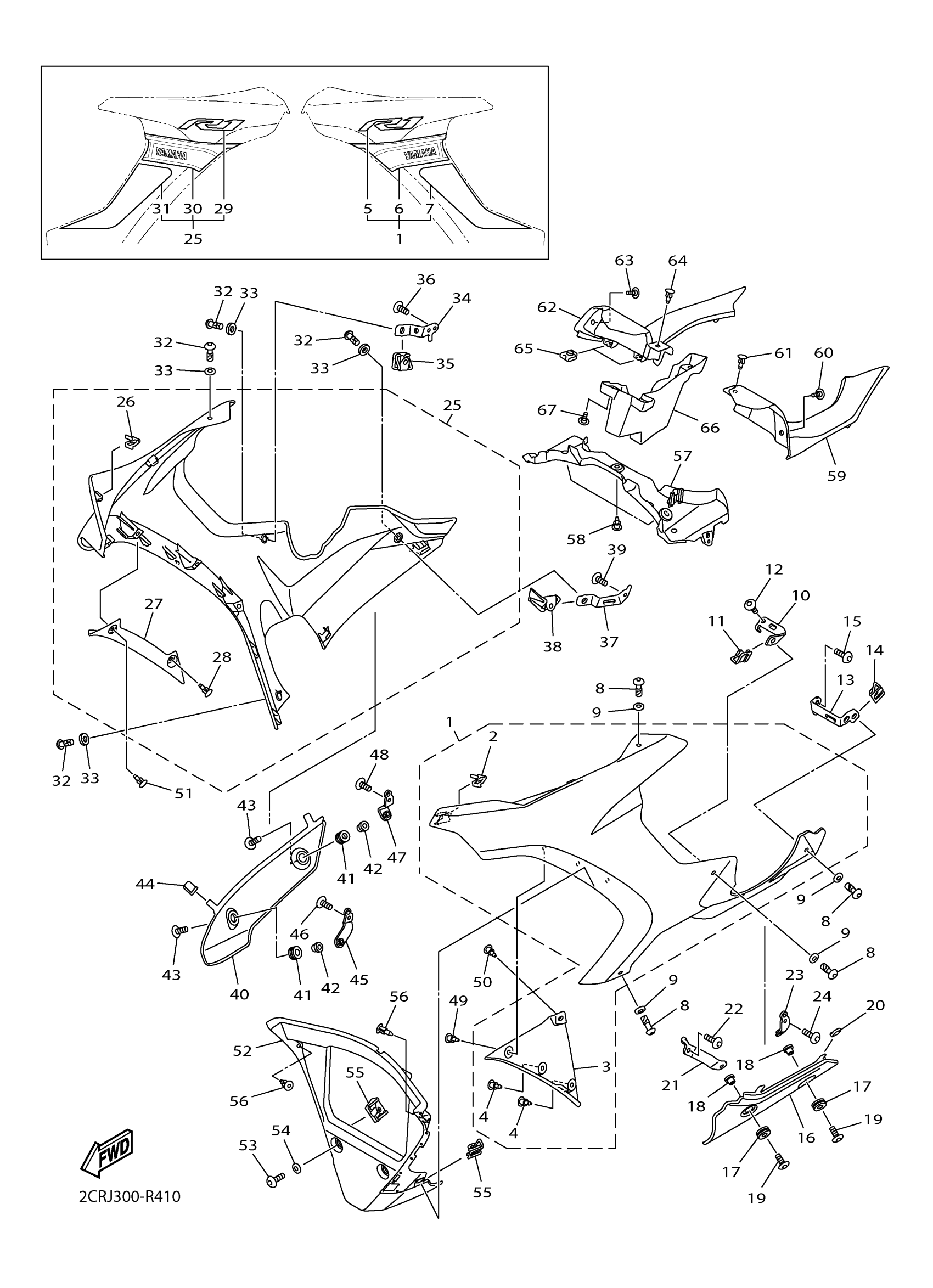

Yamaha YZFR1GY (YZFR1 60TH ANNIVERSARY) 2CRL 2016 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
2CR-Y283U-70-0X
Unavailable
6
GRAPHIC 1
2CR-28391-40-00
Unavailable
7
GRAPHIC 5
2CR-28398-10-00
Unavailable
16
PROTECTOR 1
2CR-2834V-00-00
Unavailable
17
GROMMET(2JG)
90480-14477-00
Unavailable
18
COLLAR
90387-06307-00
Unavailable
19
BOLT
90111-06038-00
Unavailable
20
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
21
BRKT., 17
2CR-2833R-00-00
Unavailable
23
BRKT.,18
2CR-2833T-00-00
Unavailable
25
PANEL ASSEMBLY 2
2CR-Y283V-70-0X
Unavailable
27
PANEL, INNER 2
2CR-2836L-00-00
Unavailable
30
GRAPHIC 2
2CR-28392-40-00
Unavailable
31
GRAPHIC 6
2CR-28399-10-00
Unavailable
34
BRACKET 15
2CR-2833M-00-00
Unavailable
37
BRACKET 16
2CR-2833N-00-00
Unavailable
40
PROTECTOR 2
2CR-2834W-00-00
Unavailable
41
GROMMET(2JG)
90480-14477-00
Unavailable
42
COLLAR
90387-06307-00
Unavailable
43
BOLT
90111-06038-00
Unavailable
44
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
45
BRKT.,19
2CR-2833U-00-00
Unavailable
47
BRKT.,20
2CR-2833V-00-00
Unavailable
49
RIVET
90269-06001-00
Unavailable
51
RIVET
90269-06001-00
Unavailable
52
PANEL, INNER 3
2CR-2836M-00-33
Unavailable
53
SCREW(4DN)
90149-06302-00
Unavailable
54
COLLAR
90387-06309-00
Unavailable
57
STAY, HEADLIGHT
2CR-23174-00-00
Unavailable
59
PANEL, CONSOLE 1
2CR-2837L-00-00
Unavailable
60
BOLT
90111-05011-00
Unavailable
62
PANEL, CONSOLE 2
2CR-2837M-00-00
Unavailable
63
BOLT
90111-05011-00
Unavailable
65
NUT, SPRING
90183-050A6-00
Unavailable
66
BOX 1
2CR-2838K-00-00
Unavailable
67
BOLT
90111-05011-00
Unavailable
