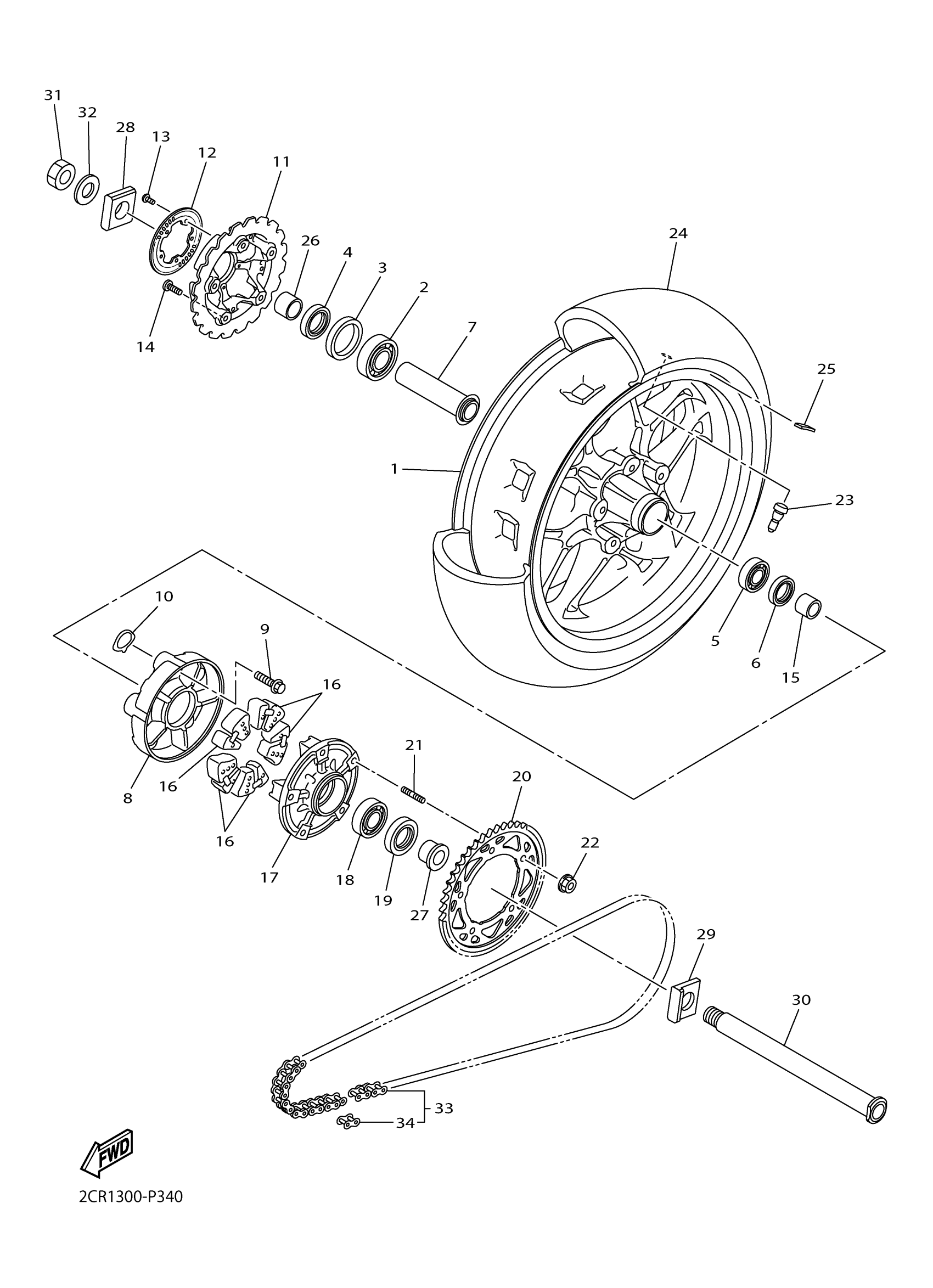

Yamaha YZFR1GL (YZFR1) 2CRE0 2016 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

2CR-25338-00-1X

Unavailable

2

BEARING

93306-27802-00

$71.99

3

NUT, ADJUSTING

2CR-2538E-00-00

Unavailable

4

OIL SEAL

93106-40001-00

$12.49

5

BEARING

93306-07806-00

$63.99

6

OIL SEAL

93106-35042-00

$15.99

7

SPACER ASSY

2CR-253W0-00-00

Unavailable

8

HUB 2

2CR-2531F-00-00

$219.99

9

BOLT, FLANGE

90105-10450-00

$3.28

10

SEAL, HUB DUST

2CR-25319-00-00

$3.33

11

PLATE, DISK

2CR-2581A-00-00

Unavailable

12

ROTOR, SENSOR

1SD-2517G-00-00

Unavailable

13

SCREW

90149-05030-00

$8.49

14

BOLT

90109-085G6-00

$3.23

15

COLLAR

90387-28022-00

$23.99

16

DAMPER

2CR-25364-00-00

Unavailable

17

CLUTCH, HUB

2CR-25366-00-00

Unavailable

18

BEARING(3JN)

93306-20531-00

Unavailable

19

OIL SEAL

93106-40013-00

Unavailable

20

SPROCKET, DRIVEN (

2CR-25441-00-00

Unavailable

21

BOLT, STUD

90116-10048-00

Unavailable

22

NUT, SELF-LOCKING

90185-10011-00

Unavailable

23

VALVE, RIM(2GH)

93900-00030-00

Unavailable

24

TIRE (190/55 ZR17 M/C 75W)

94119-17074-00

Unavailable

25

BALANCER, WHEEL

2CR-25398-00-00

Unavailable

26

COLLAR

90387-28023-00

Unavailable

27

COLLAR

90387-28024-00

Unavailable

28

PULLER, CHAIN 1

5VY-25388-00-00

Unavailable

29

PULLER, CHAIN 2

5VY-25389-01-00

Unavailable

30

AXLE, WHEEL

2CR-25381-00-00

Unavailable

31

NUT, SELF-LOCKING

90185-24007-00

Unavailable

32

WASHER, PLATE

90201-25020-00

Unavailable

33

SET, CHAIN

94A40-15114-00

Unavailable

34

JOINT, CHAIN

94682-5502R-00

Unavailable
