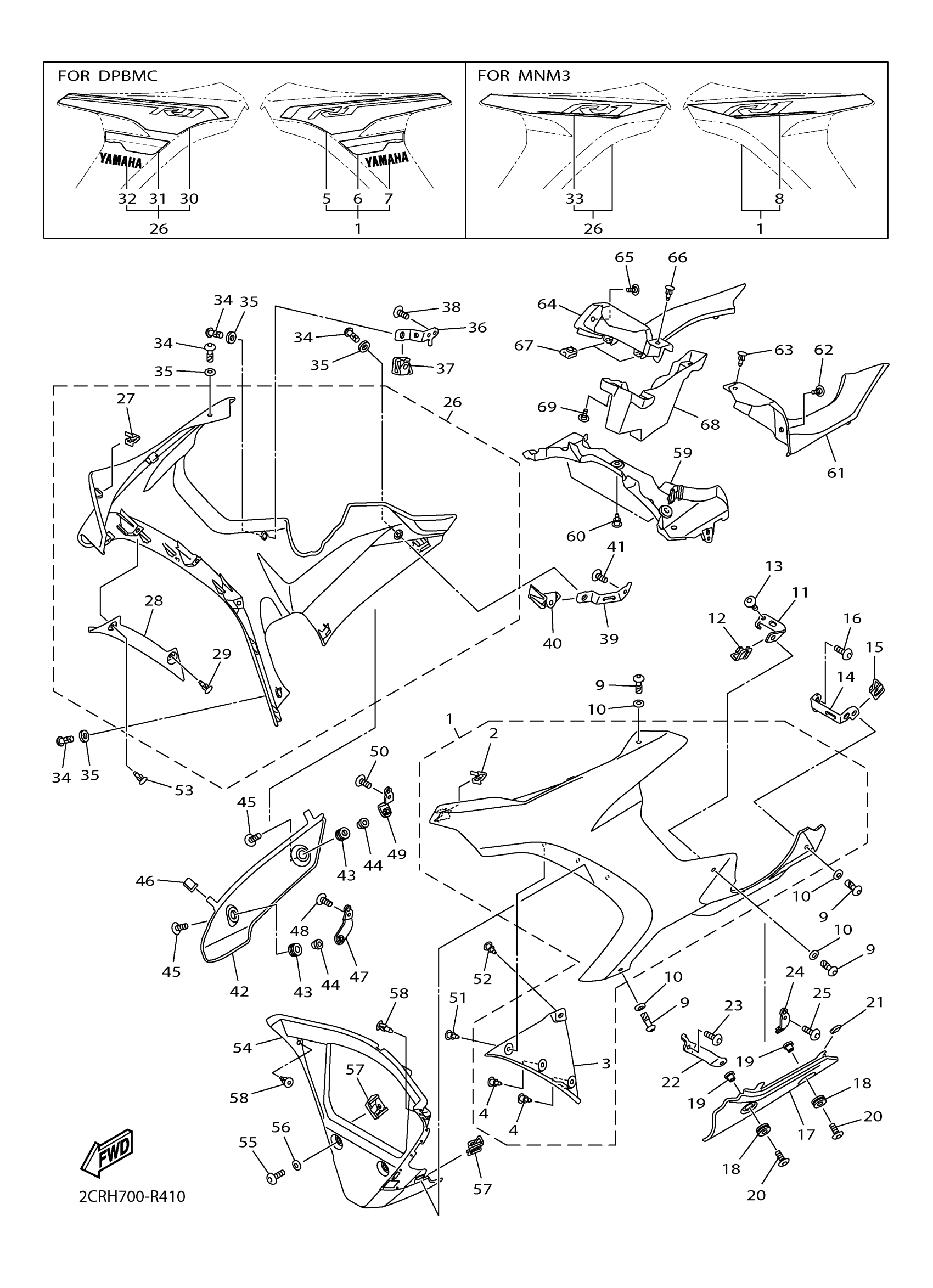

Yamaha YZFR1GL (YZFR1) 2CRE0 2016 COWLING 2 Diagram
#
8
GRAPHIC 1
B60-28391-00-00
Unavailable
17
PROTECTOR 1
2CR-2834V-00-00
Unavailable
19
COLLAR
90387-06307-00
Unavailable
20
BOLT
90111-06038-00
Unavailable
21
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
22
BRKT., 17
2CR-2833R-00-00
Unavailable
24
BRKT.,18
2CR-2833T-00-00
Unavailable
26
PANEL ASSEMBLY 2
2CR-Y283V-40-P3
Unavailable
28
PANEL, INNER 2
2CR-2836L-00-00
Unavailable
33
GRAPHIC 2
B60-28392-00-00
Unavailable
36
BRACKET 15
2CR-2833M-00-00
Unavailable
39
BRACKET 16
2CR-2833N-00-00
Unavailable
42
PROTECTOR 2
2CR-2834W-00-00
Unavailable
44
COLLAR
90387-06307-00
Unavailable
45
BOLT
90111-06038-00
Unavailable
46
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
47
BRKT.,19
2CR-2833U-00-00
Unavailable
49
BRKT.,20
2CR-2833V-00-00
Unavailable
51
RIVET
90269-06001-00
Unavailable
53
RIVET
90269-06001-00
Unavailable
54
PANEL, INNER 3
2CR-2836M-00-P3
Unavailable
55
SCREW(4DN)
90149-06302-00
Unavailable
56
COLLAR
90387-06309-00
Unavailable
59
STAY, HEADLIGHT
2CR-23174-00-00
Unavailable
61
PANEL, CONSOLE 1
2CR-2837L-00-00
Unavailable
62
BOLT
90111-05011-00
Unavailable
64
PANEL, CONSOLE 2
2CR-2837M-00-00
Unavailable
65
BOLT
90111-05011-00
Unavailable
67
NUT, SPRING
90183-050A6-00
Unavailable
68
BOX 1
2CR-2838K-00-00
Unavailable
69
BOLT
90111-05011-00
Unavailable
