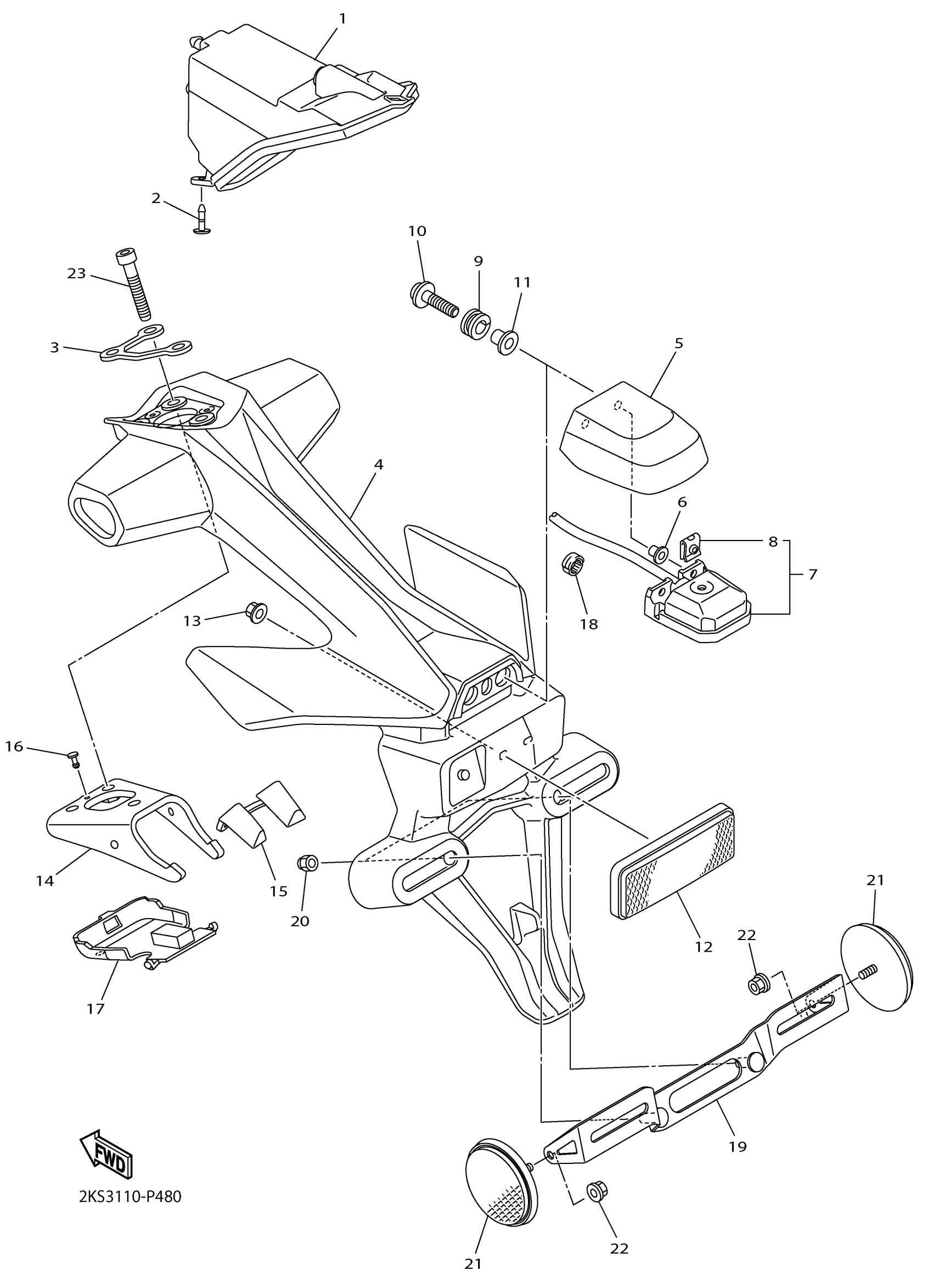

Yamaha YZFR1FR (YZFR1) 2CR31 2015 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSY

2CR-84710-01-00

$161.87

2

RIVET

90269-06008-00

$5.55

3

WASHER, SPECIAL 1

2CR-21615-00-00

$7.62

4

GUARD, MUD

2CR-21629-00-00

$238.44

5

COVER, REAR FENDER

2CR-2163F-00-00

$147.48

6

COLLAR

90387-05035-00

$4.69

7

LICENCE LIGHT UNIT

2CR-84745-00-00

$159.18

8

NUT, SPRING(3GM)

90183-05061-00

$3.71

9

GROMMET

90480-11009-00

$0.77

10

SCREW, WITH WASHER

90159-05035-00

$5.80

11

COLLAR

90387-05003-00

$4.42

12

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

13

NUT, S/L FLANGE

95607-05200-00

$6.39

14

BRACKET 6

2CR-2161G-00-00

$27.82

15

DAMPER 2

2CR-21639-00-00

$6.76

16

RIVET, BLIND (2YK)

90267-32146-00

Unavailable

17

COVER, REAR FENDER

2CR-2163A-01-00

Unavailable

18

CLAMP

90464-13227-00

Unavailable

19

BRACKET, LICENSE

1RC-84751-00-00

Unavailable

20

NUT,SELF-LOCKING

95607-06200-00

Unavailable

21

REFLECTOR, REAR 1

449-85131-02-00

Unavailable

22

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

23

BOLT, SOCKET

91314-06035-00

Unavailable
