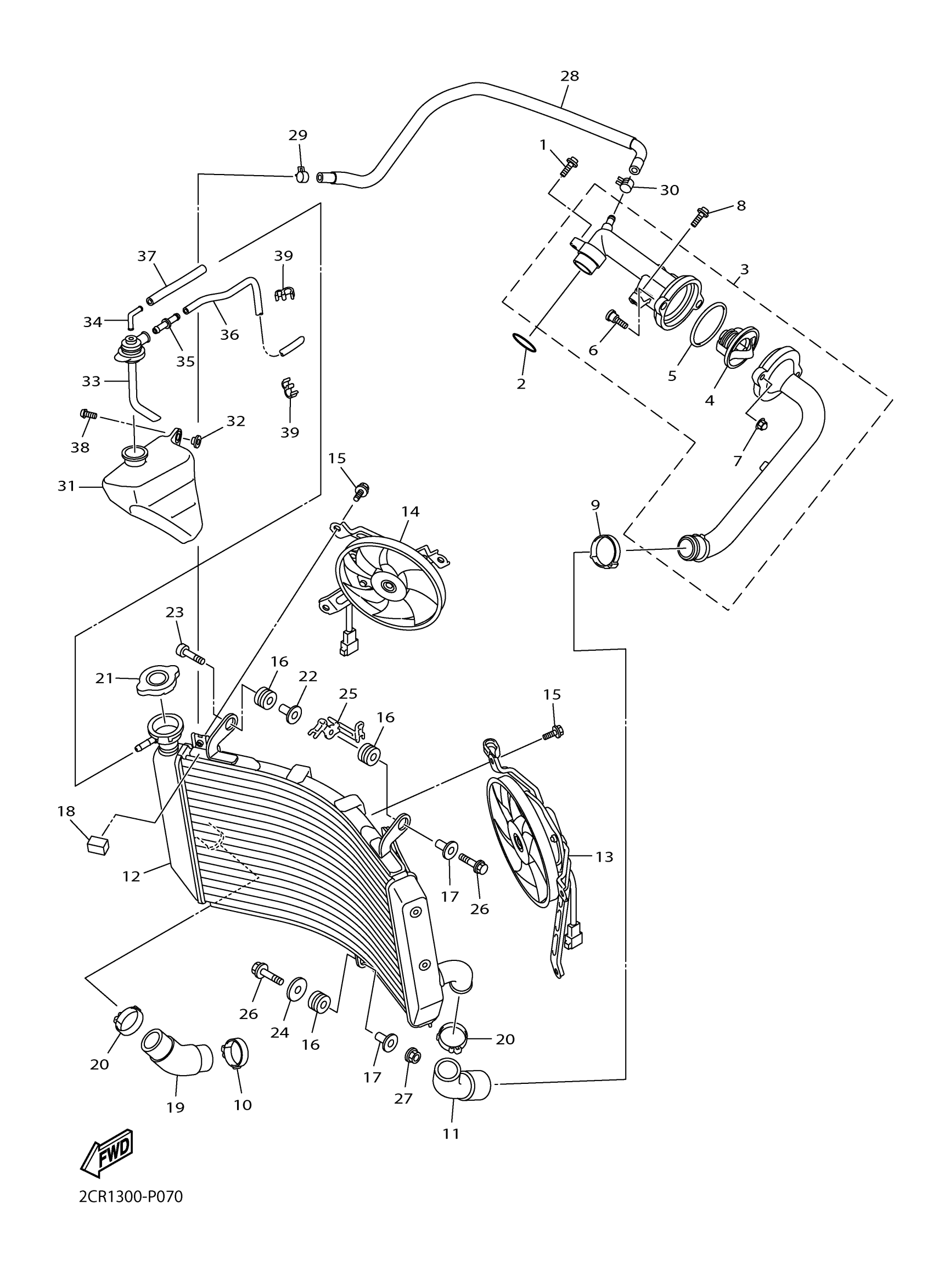

Yamaha YZFR1FR (YZFR1) 2CR31 2015 RADIATOR HOSE Diagram

#

Description
Price

1

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

2

O-RING

93210-26006-00

$8.49

3

THERMOSTAT ASSY

2CR-12410-12-00

$235.99

4

THERMOSTAT ASSY

4FM-12410-01-00

$41.99

5

O-RING (70E)

93210-54534-00

Unavailable

6

BOLT

2CR-12615-00-00

Unavailable

7

NUT, CROWN

90176-06017-00

$5.60

8

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49

9

CLIP

90467-350A0-00

$8.49

10

CLIP

90467-320A0-00

$7.49

11

HOSE 3

2CR-12578-00-00

Unavailable

12

RADIATOR COMP

2CR-12461-00-00

Unavailable

13

BLOWER ASSY

2CR-12405-00-00

$321.99

14

BLOWER ASSY

2CR-12405-10-00

Unavailable

15

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

16

GROMMET (29L)

90480-15363-00

Unavailable

17

COLLAR

90387-0614M-00

Unavailable

18

DAMPER

3P6-21649-00-00

Unavailable

19

HOSE 7

2CR-12551-00-00

Unavailable

20

CLIP

90467-320A0-00

$7.49

21

CAP, RADIATOR

5SL-12462-01-00

Unavailable

22

COLLAR

90387-0614M-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

24

WASHER, PLATE(36Y)

90201-063J2-00

Unavailable

25

GUIDE, CABLE

2CR-26279-00-00

Unavailable

26

BOLT, FLANGE

95817-06030-00

Unavailable

27

NUT,SELF-LOCKING

95607-06200-00

Unavailable

28

HOSE 8

2CR-12552-00-00

Unavailable

29

CLIP(3BM)

90467-10135-00

Unavailable

30

CLIP (7K7)

90467-11044-00

Unavailable

31

TANK, RECOVERY

2CR-21871-00-00

Unavailable

32

COLLAR (8G8)

90387-06681-00

Unavailable

33

CAP

2C0-21875-00-00

Unavailable

34

ELBOW

26H-21828-00-00

Unavailable

35

JOINT

4XY-14568-00-00

Unavailable

36

PIPE 1

2CR-21816-00-00

Unavailable

37

HOSE (L50)

90445-09040-00

Unavailable

38

BOLT, FLANGE

95817-06014-00

Unavailable

39

CLAMP(6R8)

90464-10M38-00

Unavailable
