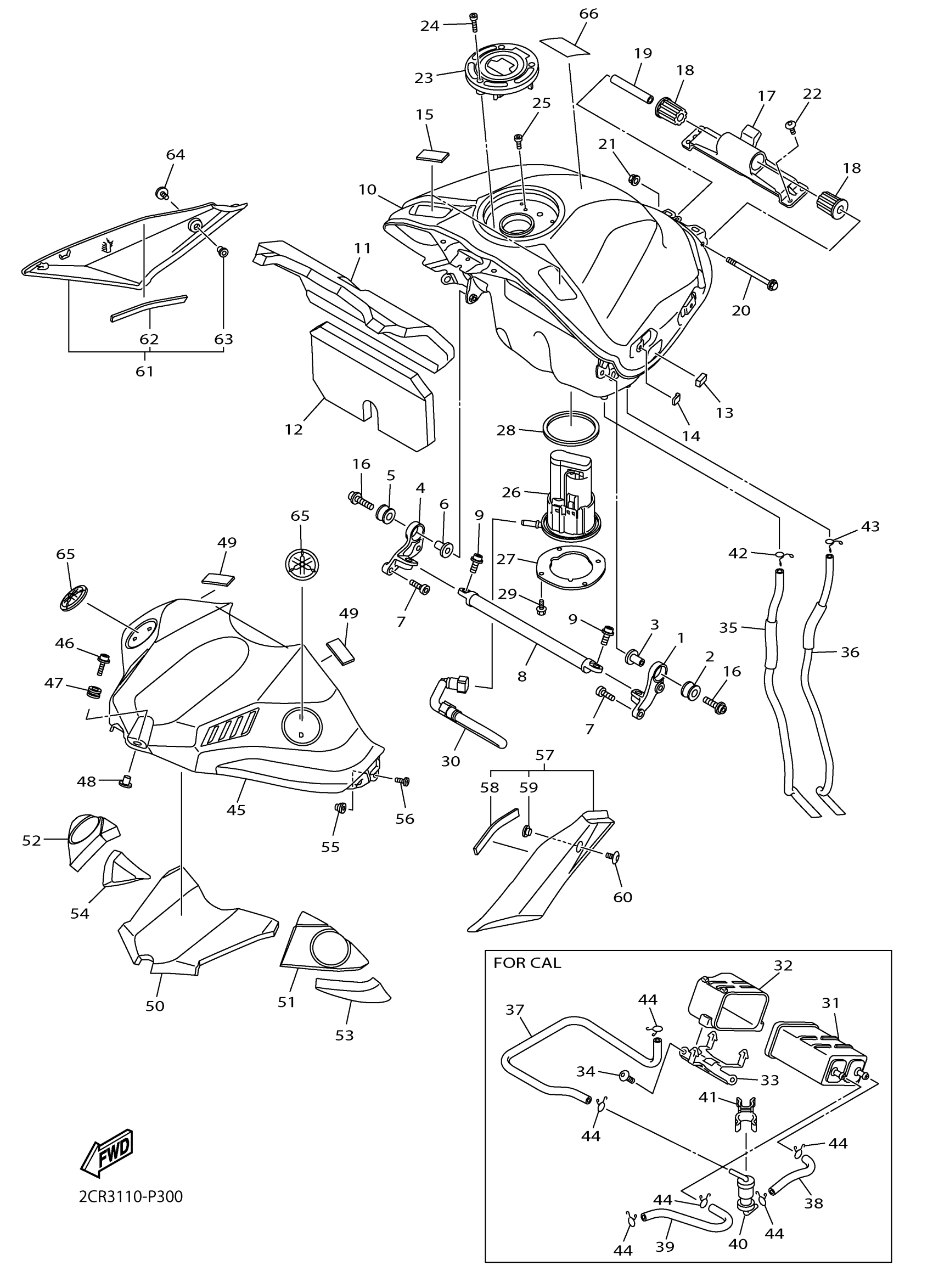

Yamaha YZFR1FR (YZFR1) 2CR31 2015 FUEL TANK Diagram
#
1
BRACKET, FUEL TANK
2CR-24191-00-00
Unavailable
4
BRACKET, FUEL TANK
2CR-24192-00-00
Unavailable
8
CROSS BAR
2CR-2142V-00-00
Unavailable
16
BOLT, HEXAGON SOCKET HEAD
90110-06346-00
Unavailable
17
BRACKET, TANK FITT
2CR-2413Y-00-00
Unavailable
18
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
19
COLLAR
90387-06055-00
Unavailable
20
BOLT, FLANGE
95812-06090-00
Unavailable
21
NUT, FLANGE
95702-06500-00
Unavailable
22
BOLT
90111-06038-00
Unavailable
23
CAP ASSY
2CR-24602-01-00
Unavailable
24
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
25
BOLT
91312-05010-00
Unavailable
26
FUEL PUMP COMP.
2CR-13907-01-00
Unavailable
27
BRACKET, FUEL PUMP
2CR-24491-00-00
Unavailable
28
O-RING
1RC-24486-00-00
Unavailable
29
BOLT, WITH WASHER
90119-05015-00
Unavailable
30
PIPE, FUEL 1
2CR-13971-01-00
Unavailable
35
PIPE 2
2CR-24312-00-00
Unavailable
36
PIPE 3
2CR-24313-00-00
Unavailable
42
CLIP(1JH)
90467-11106-00
Unavailable
43
CLIP
90467-090A2-00
Unavailable
45
COVER, TOP
2CR-2171A-00-P2
Unavailable
46
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
47
GROMMET
90480-12023-00
Unavailable
48
COLLAR
90387-06203-00
Unavailable
50
DAMPER, LOCATING 1
2CR-24181-02-00
Unavailable
51
DAMPER, PLATE 3
2CR-2414K-00-00
Unavailable
52
DAMPER, PLATE 4
2CR-2414N-00-00
Unavailable
53
DAMPER, PLATE 5
2CR-2414P-00-00
Unavailable
54
DAMPER, PLATE 6
2CR-2414R-00-00
Unavailable
55
NUT(1KT)
90179-05523-00
Unavailable
56
SCREW, BIND
98902-05014-00
Unavailable
57
TANK SIDE COVER AS
2CR-24106-00-00
Unavailable
58
DAMPER, PLATE
90520-03016-00
Unavailable
59
COLLAR
90387-05035-00
Unavailable
60
BOLT,HEX. SOCKET BUTTON
90111-05019-00
Unavailable
61
TANK SIDE COVER AS
2CR-24108-00-00
Unavailable
62
DAMPER, PLATE
90520-03016-00
Unavailable
63
COLLAR
90387-05035-00
Unavailable
64
BOLT,HEX. SOCKET BUTTON
90111-05019-00
Unavailable
65
EMBLEM
1RC-2413B-02-00
Unavailable
66
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
