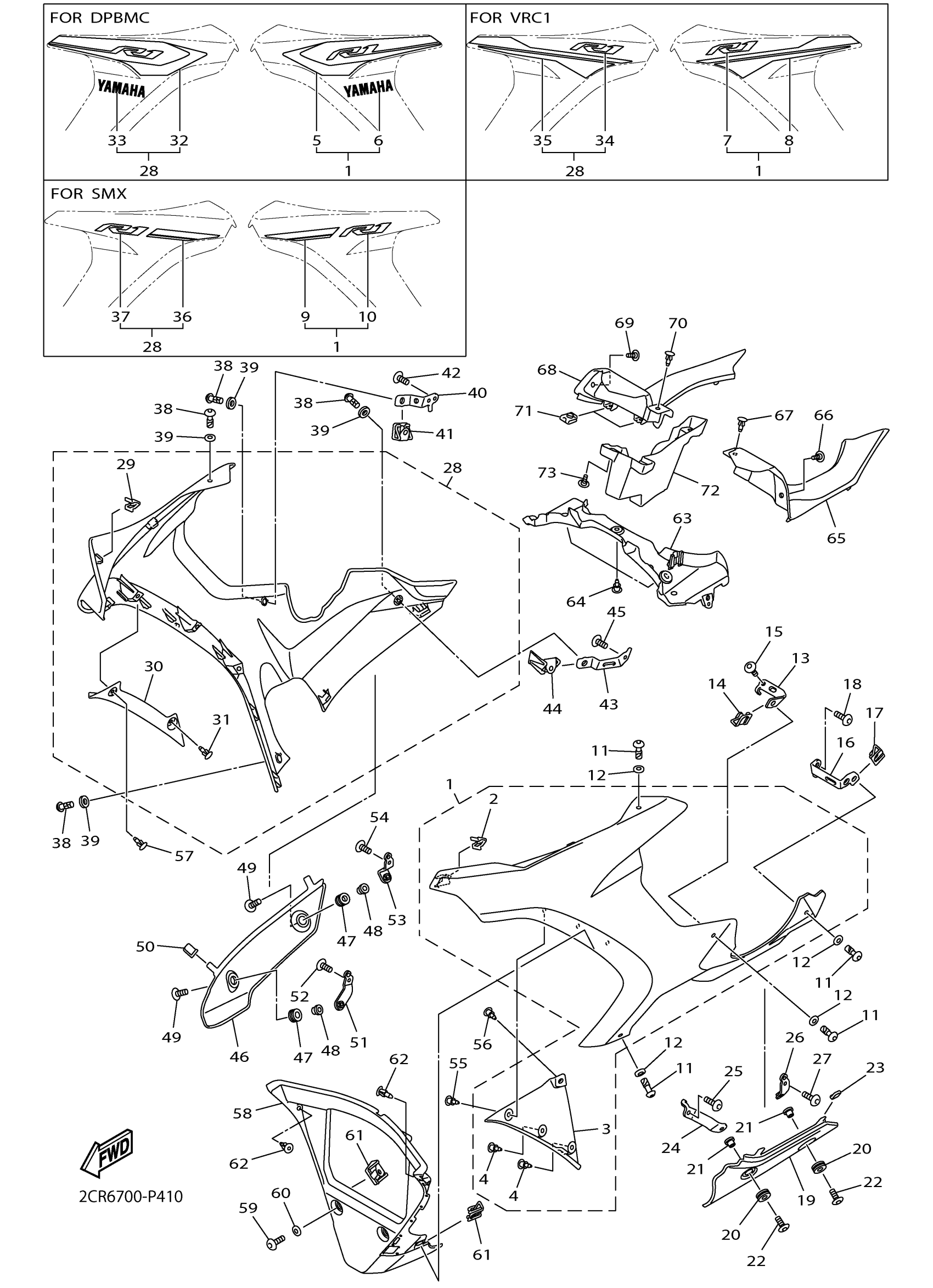

Yamaha YZFR1FR (YZFR1) 2CR31 2015 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
2CR-Y283U-20-P2
Unavailable
9
GRAPHIC 1
2CR-28391-20-00
Unavailable
19
PROTECTOR 1
2CR-2834V-00-00
Unavailable
20
GROMMET(2JG)
90480-14477-00
Unavailable
21
COLLAR
90387-06307-00
Unavailable
22
BOLT
90111-06038-00
Unavailable
23
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
24
BRKT., 17
2CR-2833R-00-00
Unavailable
26
BRKT.,18
2CR-2833T-00-00
Unavailable
28
PANEL ASSEMBLY 2
2CR-Y283V-20-P2
Unavailable
30
PANEL, INNER 2
2CR-2836L-00-00
Unavailable
36
GRAPHIC 2
2CR-28392-20-00
Unavailable
40
BRACKET 15
2CR-2833M-00-00
Unavailable
43
BRACKET 16
2CR-2833N-00-00
Unavailable
46
PROTECTOR 2
2CR-2834W-00-00
Unavailable
47
GROMMET(2JG)
90480-14477-00
Unavailable
48
COLLAR
90387-06307-00
Unavailable
49
BOLT
90111-06038-00
Unavailable
50
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
51
BRKT.,19
2CR-2833U-00-00
Unavailable
53
BRKT.,20
2CR-2833V-00-00
Unavailable
55
RIVET
90269-06001-00
Unavailable
57
RIVET
90269-06001-00
Unavailable
58
PANEL, INNER 3
2CR-2836M-00-P2
Unavailable
59
SCREW(4DN)
90149-06302-00
Unavailable
60
COLLAR
90387-06309-00
Unavailable
63
STAY, HEADLIGHT
2CR-23174-00-00
Unavailable
65
PANEL, CONSOLE 1
2CR-2837L-00-00
Unavailable
66
BOLT
90111-05011-00
Unavailable
68
PANEL, CONSOLE 2
2CR-2837M-00-00
Unavailable
69
BOLT
90111-05011-00
Unavailable
71
NUT, SPRING
90183-050A6-00
Unavailable
72
BOX 1
2CR-2838K-00-00
Unavailable
73
BOLT
90111-05011-00
Unavailable
