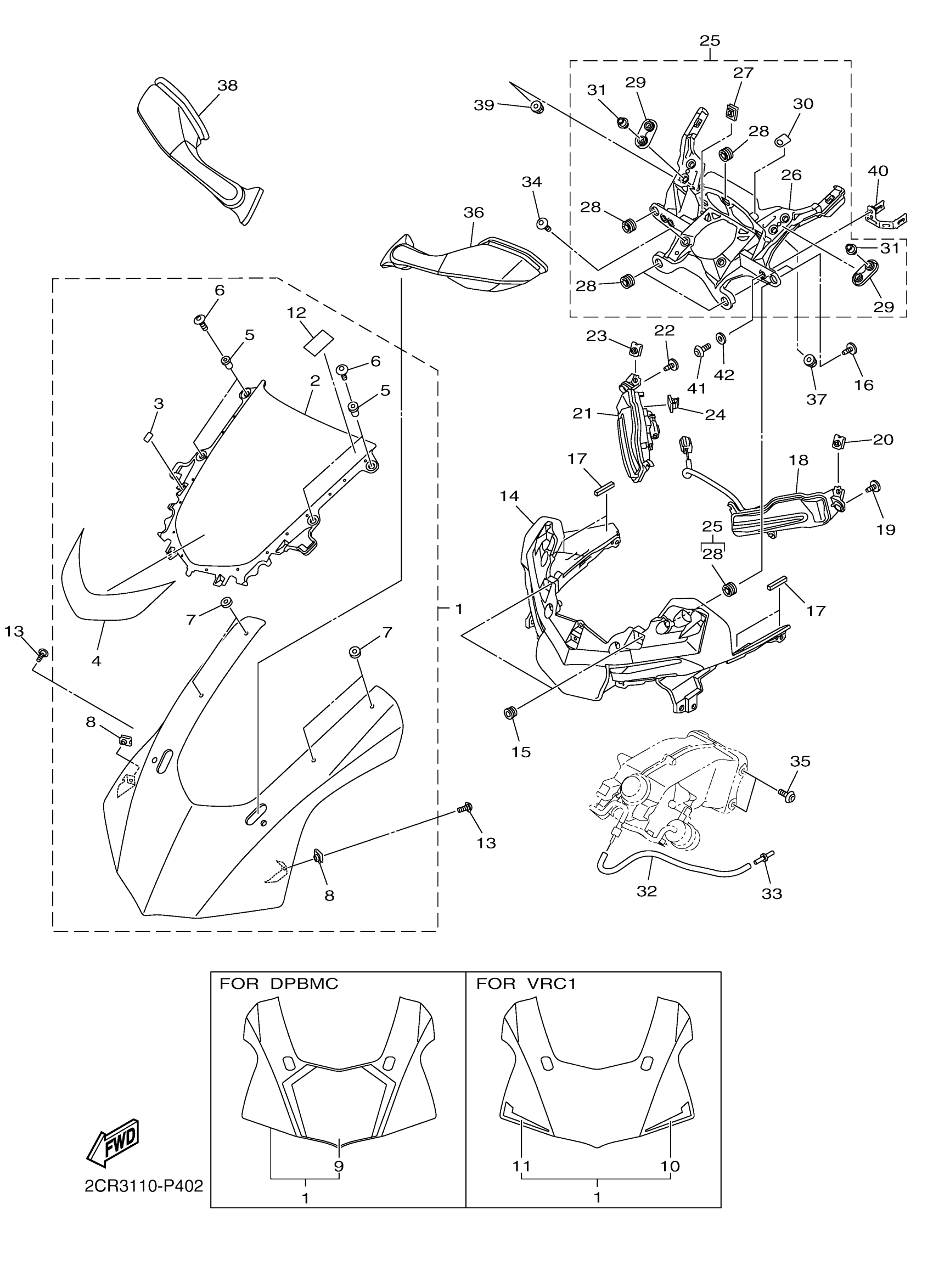

Yamaha YZFR1FR (YZFR1) 2CR31 2015 COWLING 1 Diagram

#

Description
Price

1

BODY, FRONT UPPER 1

2CR-Y283G-30-P2

$588.99

2

WINDSHIELD

2CR-28381-10-00

Unavailable

3

PROTECTOR 1

1S4-2476U-00-00

$2.29

4

GRAPHIC, 18

2CR-2832P-00-00

Unavailable

5

NUT(1KT)

90179-05523-00

$8.49

6

BOLT

2CR-28333-00-00

$4.47

7

. WASHER, PLATE

90202-05088-00

Unavailable

8

NUT, SPRING

90183-050A6-00

$8.49

12

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

$7.99

13

BOLT,HEX. SOCKET BUTTON

90111-05045-00

$8.49

14

BODY, FRONT UPPER

2CR-2835H-00-00

$64.99

15

GROMMET

90480-10003-00

$8.49

16

SCREW, TAPPING

90164-05001-00

$8.49

17

DAMPER 4

2C0-28247-00-00

$4.47

18

PILOT LIGHT ASSY 1

2CR-84301-00-00

$290.99

19

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

20

NUT, SPRING

90183-050A6-00

$8.49

21

PILOT LIGHT ASSY 2

2CR-84302-00-00

Unavailable

22

SCREW, TRUSS TAP.

97707-50014-00

Unavailable

23

NUT, SPRING

90183-050A6-00

$8.49

24

CLAMP(3YL)

90464-25160-00

Unavailable

25

LEG SHIELD STAY SET

2CR-28320-00-00

Unavailable

26

STAY 1

2CR-28356-00-00

Unavailable

27

NUT, SPRING

90183-060A1-00

Unavailable

28

DAMPER

4XV-83513-00-00

Unavailable

29

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

30

SEAL 1

2CR-22873-00-00

Unavailable

31

COLLAR ,4

2CR-284AK-00-00

Unavailable

32

HOSE (L320)

90445-086J3-00

Unavailable

33

JOINT

5PS-14568-00-00

Unavailable

34

BOLT

90111-06038-00

Unavailable

35

BOLT

90111-06038-00

Unavailable

36

REAR VIEW MIRROR ASSY (LEFT)

2CR-26280-11-00

Unavailable

37

NUT, CROWN(1FN)

90176-06055-00

Unavailable

38

REAR VIEW MIRROR ASSY (RIGHT)

2CR-26290-11-00

Unavailable

39

NUT, CROWN(1FN)

90176-06055-00

Unavailable

40

BRACKET 6

2CR-2836J-01-00

Unavailable

41

BOLT, BUTTON HEAD

92012-06014-00

Unavailable

42

COLLAR

90387-06184-00

Unavailable
