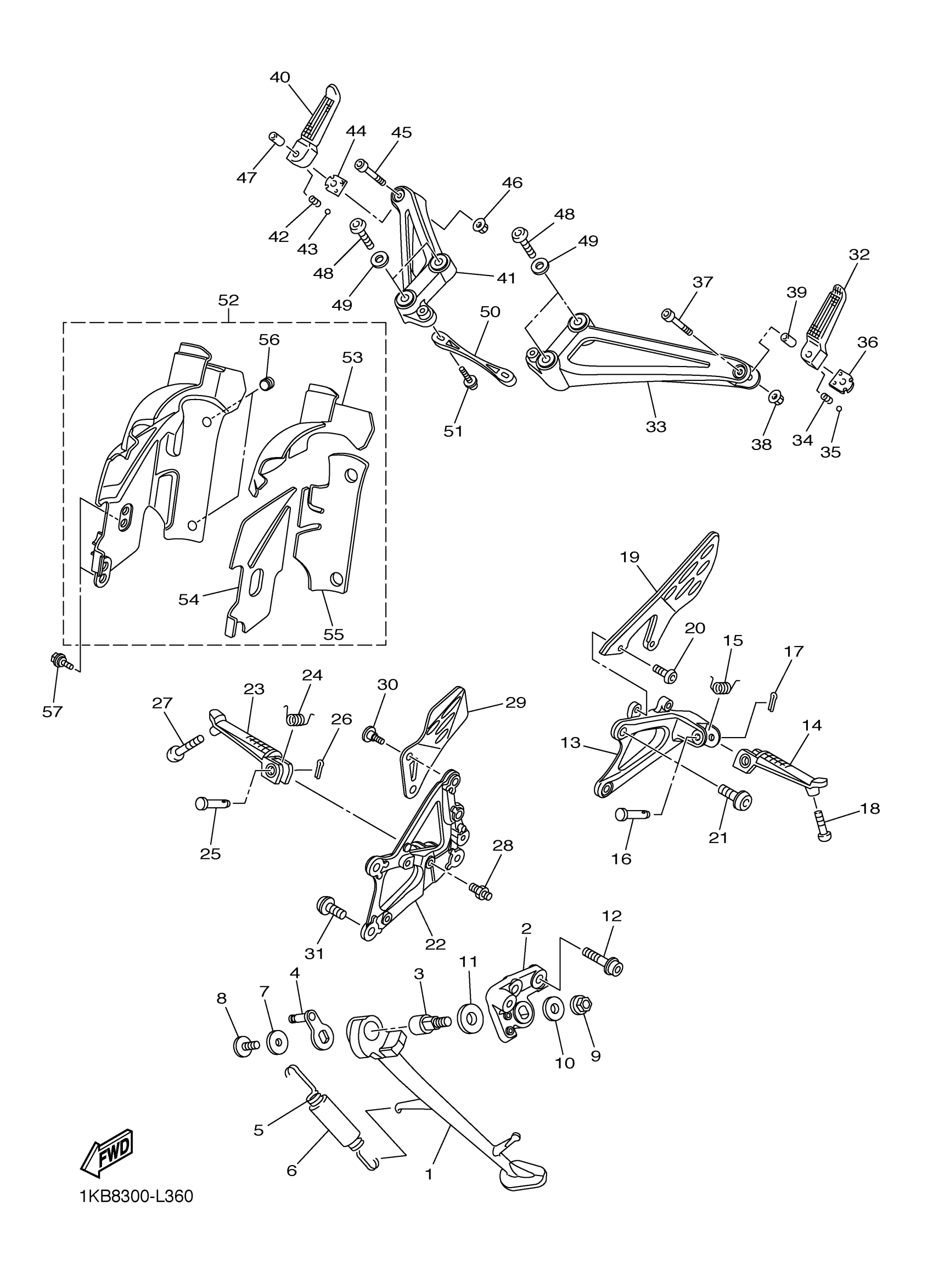

Yamaha YZFR1ER (YZFR1) 2SG71 2014 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

14B-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

14B-27321-00-00

Unavailable

3

GUIDE, SIDE STAND

14B-27351-00-00

Unavailable

4

HOOK, SIDE STAND

14B-27352-00-00

Unavailable

5

SPRING, TENSION

90506-18008-00

$15.99

6

HOSE (L60)

90445-19002-00

$7.49

7

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

8

BOLT,HEX. SOCKET BUTTON

90111-08073-00

Unavailable

9

NUT, S/L FLANGE

95602-10200-00

$4.82

10

WASHER, PLATE

90201-10035-00

$4.19

11

WASHER, PLATE (22F)

90201-146F9-00

$7.49

12

BOLT, HEXAGON SOCKET HEAD

90110-10026-00

$11.49

13

BRACKET 2

14B-27442-10-00

Unavailable

14

FOOTREST

1KB-27451-00-00

$79.99

15

SPRING, TORSION

90508-18134-00

$8.49

16

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

17

PIN, COTTER

91490-25020-00

Unavailable

18

BOLT

90109-08177-00

Unavailable

19

PLATE 1

14B-27445-10-00

Unavailable

20

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

21

BOLT

90109-085G6-00

Unavailable

22

BRACKET 3

14B-27443-10-00

Unavailable

23

FOOTREST

1KB-27461-00-00

Unavailable

24

SPRING, TORSION

90508-18135-00

Unavailable

25

PIN, CLEVIS (2A6)

91701-08038-00

Unavailable

26

PIN, COTTER

91490-25020-00

Unavailable

27

BOLT

90109-08177-00

Unavailable

28

PIN, PEDAL CRANK

4C8-27813-09-00

Unavailable

29

PLATE 2

14B-27446-10-00

Unavailable

30

BOLT(4BP)

90109-066F0-00

Unavailable

31

BOLT

90109-085G6-00

Unavailable

32

FOOTREST, REAR 1

5JJ-27431-10-00

Unavailable

33

BRACKET 4

14B-2741L-10-00

Unavailable

34

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

35

BALL

93501-04011-00

Unavailable

36

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

37

BOLT(J17)

91312-06035-00

Unavailable

38

NUT, U FLANGE

95604-06200-00

Unavailable

39

COLLAR (8H9)

90387-06697-00

Unavailable

40

FOOTREST, REAR 2

5JJ-27441-10-00

Unavailable

41

BRACKET 5

14B-2742L-10-00

Unavailable

42

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

43

BALL

93501-04011-00

Unavailable

44

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

45

BOLT(J17)

91312-06035-00

Unavailable

46

NUT, U FLANGE

95604-06200-00

Unavailable

47

COLLAR (8H9)

90387-06697-00

Unavailable

48

BOLT (3XF1)

90110-08220-00

Unavailable

49

WASHER, FOOTREST

13S-27417-00-00

Unavailable

50

REINFORCEMENT 1

14B-27469-00-00

Unavailable

51

BOLT

90109-06031-00

Unavailable

52

PROTECTOR ASSY

14B-27490-00-00

Unavailable

53

SEAT 3

14B-2749A-00-00

Unavailable

54

SEAT 4

14B-2749B-00-00

Unavailable

55

SEAT 6

14B-2749D-00-00

Unavailable

56

DAMPER, MUFFLER

2D1-14737-01-00

Unavailable

57

BOLT

90109-06264-00

Unavailable
