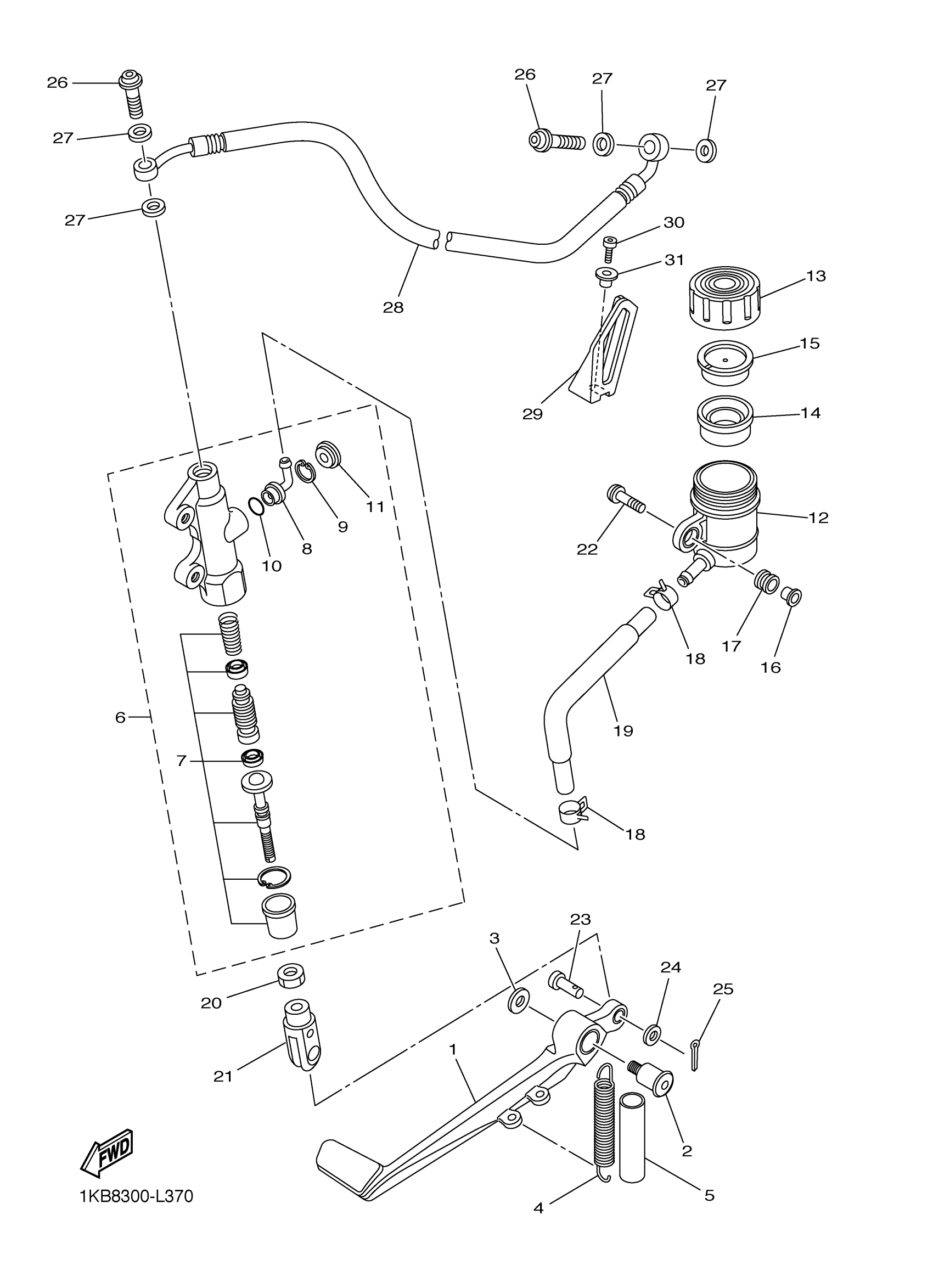

Yamaha YZFR1ER (YZFR1) 2SG71 2014 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

14B-27211-00-00

Unavailable

2

BOLT

4C8-27434-10-00

Unavailable

3

WASHER 6154275100

90201-08103-00

Unavailable

4

SPRING, TENSION

90506-18022-00

Unavailable

5

HOSE

90446-15386-00

$7.49

6

RR. MASTER CYLINDER ASSY.

14B-2583V-00-00

Unavailable

7

.. CYLINDER KIT, MASTER

14B-W0042-00-00

Unavailable

8

JOINT

4ML-2582A-50-00

$14.49

9

CIRCLIP

2VN-25866-00-00

$6.99

10

O-RING (22U)

93210-15566-00

$7.49

11

COVER, DUST

3FV-2589A-00-00

$20.99

12

TANK, RESERVOIR

14B-25894-00-00

$63.99

13

CAP, RESERVOIR

2C0-25852-00-00

$7.99

14

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

15

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

16

COLLAR

90387-05028-00

Unavailable

17

GROMMET

2C0-26326-00-00

Unavailable

18

CLIP(3FV)

90467-12085-00

Unavailable

19

HOSE, RESERVOIR

14B-25895-00-00

Unavailable

20

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

21

JOINT

4XV-27222-01-00

Unavailable

22

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

23

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

24

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

25

PIN, COTTER

91490-16020-00

Unavailable

26

BOLT, UNION

90401-10172-00

Unavailable

27

GASKET

90430-10005-00

Unavailable

28

HOSE, BRAKE

1KB-25874-00-00

Unavailable

29

HOLDER, BRAKE HOSE 5

1KB-2588F-00-00

Unavailable

30

BOLT, SOCKET

91314-06016-00

Unavailable

31

COLLAR

90387-06066-00

Unavailable
