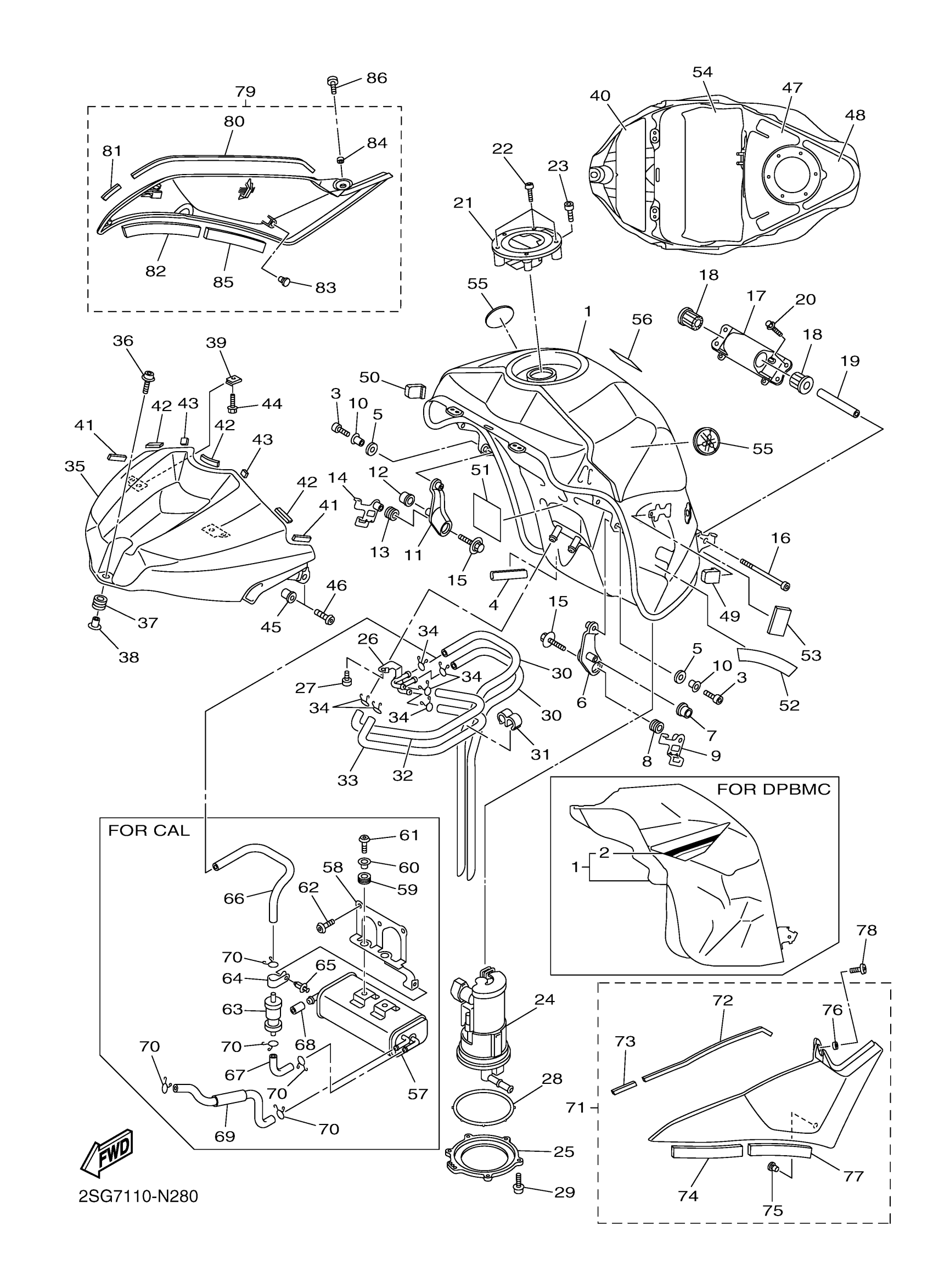

Yamaha YZFR1ER (YZFR1) 2SG71 2014 FUEL TANK Diagram
#
1
FUEL TANK COMP.
14B-24110-01-P4
Unavailable
4
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
6
BRACKET, FUEL TANK 1
14B-24191-10-00
Unavailable
8
GROMMET(3XV)
90480-10542-00
Unavailable
11
BRACKET, FUEL TANK 2
14B-24192-10-00
Unavailable
13
GROMMET(3XV)
90480-10542-00
Unavailable
17
BRACKET, TANK FITTING
14B-2413Y-10-00
Unavailable
18
DAMPER, LOCATING 3
5SL-24183-00-00
Unavailable
19
COLLAR
90387-06055-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
21
CAP ASSY
39P-24602-00-00
Unavailable
22
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
23
BOLT
91312-05010-00
Unavailable
24
FUEL PUMP COMP.
14B-13907-23-00
Unavailable
25
BRACKET, FUEL PUMP
13S-24491-00-00
Unavailable
26
CLAMP 1
14B-24135-00-00
Unavailable
27
BOLT
91312-05008-00
Unavailable
28
O-RING
19B-24486-01-00
Unavailable
29
BOLT, HEXAGON SOCKET HEAD
90110-05028-00
Unavailable
30
PIPE 2
14B-24312-00-00
Unavailable
31
CLAMP(6M7)
90464-09M31-00
Unavailable
32
PIPE 3
14B-24313-10-00
Unavailable
33
PIPE 4
14B-24314-00-00
Unavailable
34
CLIP
90467-090A2-00
Unavailable
35
COVER, TOP
14B-2171A-00-P0
Unavailable
36
BOLT, HEXAGON SOCKET HEAD
90110-06233-00
Unavailable
37
GROMMET
90480-12023-00
Unavailable
38
COLLAR
90387-06203-00
Unavailable
39
NUT, SPRING(3YX)
90183-05074-00
Unavailable
40
DAMPER, PLATE 1
14B-2414H-00-00
Unavailable
41
DAMPER, LOCATING 2
4C8-24182-00-00
Unavailable
42
DAMPER, LOCATING 1
3XV-21778-00-00
Unavailable
43
DAMPER, LOCATING 1
14B-24181-00-00
Unavailable
44
BOLT, WITH WASHER
90119-05015-00
Unavailable
45
NUT(1KT)
90179-05523-00
Unavailable
46
SCREW, BIND
98902-05014-00
Unavailable
47
DAMPER, PLATE 4
14B-2414N-20-00
Unavailable
48
DAMPER, PLATE 5
14B-2414P-20-00
Unavailable
49
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
50
DAMPER, SIDE COVER
5PW-2411J-01-00
Unavailable
51
DAMPER
5VU-21747-00-00
Unavailable
52
DAMPER, PLATE 3
14B-2414K-10-00
Unavailable
53
SEAL
14B-2414G-00-00
Unavailable
54
DAMPER, PLATE
90520-08002-00
Unavailable
55
EMBLEM
5SL-2413B-00-00
Unavailable
56
LABEL, CAUTION
4C8-2118K-00-00
Unavailable
57
CANISTER ASSY
14B-24170-00-00
Unavailable
58
BRACKET, CANISTOR
14B-2419F-00-00
Unavailable
59
GROMMET (462)
90480-13018-00
Unavailable
60
COLLAR(42G)
90387-062L2-00
Unavailable
61
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
62
BOLT,HEX. SOCKET BUTTON
90111-06140-00
Unavailable
63
ROLL OVER VALVE ASSY
5PX-24180-00-00
Unavailable
64
CLAMP
90464-15014-00
Unavailable
65
RIVET
90269-05001-00
Unavailable
66
PIPE 5
14B-24315-00-00
Unavailable
67
PIPE 6
14B-24316-00-00
Unavailable
68
HOSE (L70)
90445-112E0-00
Unavailable
69
PIPE
14B-1443J-00-00
Unavailable
70
CLIP
90467-090A2-00
Unavailable
71
TANK SIDE COVER ASSY 1
14B-24106-10-00
Unavailable
72
DAMPER, PLATE 1
2C0-2414H-00-00
Unavailable
73
DAMPER, PLATE 2
14B-2414J-00-00
Unavailable
74
DAMPER, PLATE 2
2C0-2414J-00-00
Unavailable
75
PLUG(1NL)
90338-07180-00
Unavailable
76
SPACER(7YL)
90560-05N33-00
Unavailable
77
DAMPER, PLATE
90520-10005-00
Unavailable
78
SCREW, BIND
98902-05008-00
Unavailable
79
TANK SIDE COVER ASSY 2
14B-24108-10-00
Unavailable
80
DAMPER, PLATE 1
2C0-2414H-00-00
Unavailable
81
DAMPER, PLATE 2
14B-2414J-00-00
Unavailable
82
DAMPER, PLATE 2
2C0-2414J-00-00
Unavailable
83
PLUG(1NL)
90338-07180-00
Unavailable
84
SPACER(7YL)
90560-05N33-00
Unavailable
85
DAMPER, PLATE
90520-10005-00
Unavailable
86
SCREW, BIND
98902-05008-00
Unavailable
