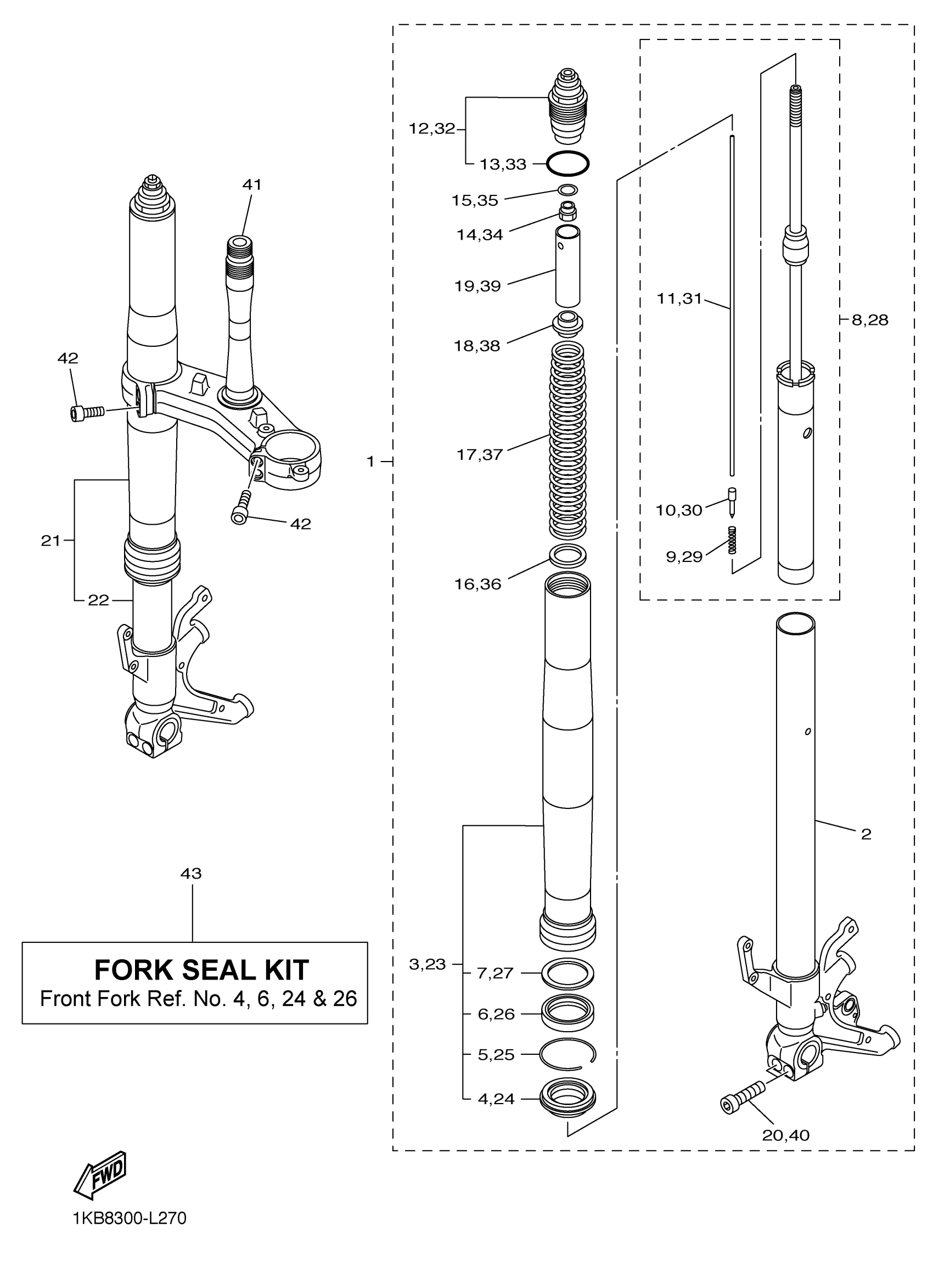

Yamaha YZFR1ER (YZFR1) 2SG71 2014 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

1KB-23102-00-00

$853.99

2

INNER TUBE COMP.1

1KB-23110-01-00

Unavailable

3

OUTER TUBE COMP. (L.H)

14B-23106-00-00

Unavailable

4

SEAL, DUST

4TX-23144-01-00

$23.99

5

CLIP, OIL SEAL

4TX-23156-00-00

$9.99

6

OIL SEAL

5VX-23145-00-00

Unavailable

7

GUIDE, COVER UPPER

4TX-23115-00-00

Unavailable

8

CYL. COMP.,2

1KB-2315K-00-00

Unavailable

9

SPRING, VALVE

14B-2319M-00-00

$6.99

10

VALVE

14B-23109-00-00

$9.99

11

... PLUNGER

14B-2318Y-00-00

Unavailable

12

BOLT, CAP

14B-23111-00-00

$281.99

13

O-RING

93210-41N50-00

$8.49

14

NUT, SPECIAL

13S-23393-00-00

Unavailable

15

PLATE, VALVE 2

13S-2332N-00-00

$7.99

16

WASHER PLATE 371115580000

90201-25291-00

Unavailable

17

.. SPRING, FRONT FORK

14B-23141-00-00

Unavailable

18

SEAT, SPRING UPPER

13S-23142-00-00

Unavailable

19

SPACER

14B-23118-00-00

Unavailable

20

BOLT, SOCKET

91314-08035-00

Unavailable

21

FRONT FORK ASSY (R.H)

1KB-23103-00-00

Unavailable

22

INNER TUBE COMP.2

1KB-23120-01-00

Unavailable

23

OUTER TUBE COMP. (L.H)

14B-23106-00-00

Unavailable

24

SEAL, DUST

4TX-23144-01-00

$23.99

25

CLIP, OIL SEAL

4TX-23156-00-00

$9.99

26

OIL SEAL

5VX-23145-00-00

Unavailable

27

GUIDE, COVER UPPER

4TX-23115-00-00

Unavailable

28

CYL. COMP.,3

1KB-2315L-00-00

Unavailable

29

SPRING, VALVE

14B-2319M-00-00

$6.99

30

VALVE

14B-23109-00-00

$9.99

31

... PLUNGER

14B-2318Y-00-00

Unavailable

32

BOLT, CAP 2

14B-2311J-00-00

Unavailable

33

O-RING

93210-41N50-00

$8.49

34

NUT, SPECIAL

13S-23393-00-00

Unavailable

35

PLATE, VALVE 2

13S-2332N-00-00

$7.99

36

WASHER PLATE 371115580000

90201-25291-00

Unavailable

37

.. SPRING, FRONT FORK

14B-23141-00-00

Unavailable

38

SEAT, SPRING UPPER

13S-23142-00-00

Unavailable

39

SPACER

14B-23118-00-00

Unavailable

40

BOLT, SOCKET

91314-08035-00

Unavailable

41

UNDER BRACKET COMP.

14B-23340-00-00

Unavailable

42

BOLT,SOCKET

91314-08030-00

Unavailable

43

FORK SEAL KIT (TWO FORKS)

5VX-W003B-00-00

Unavailable
