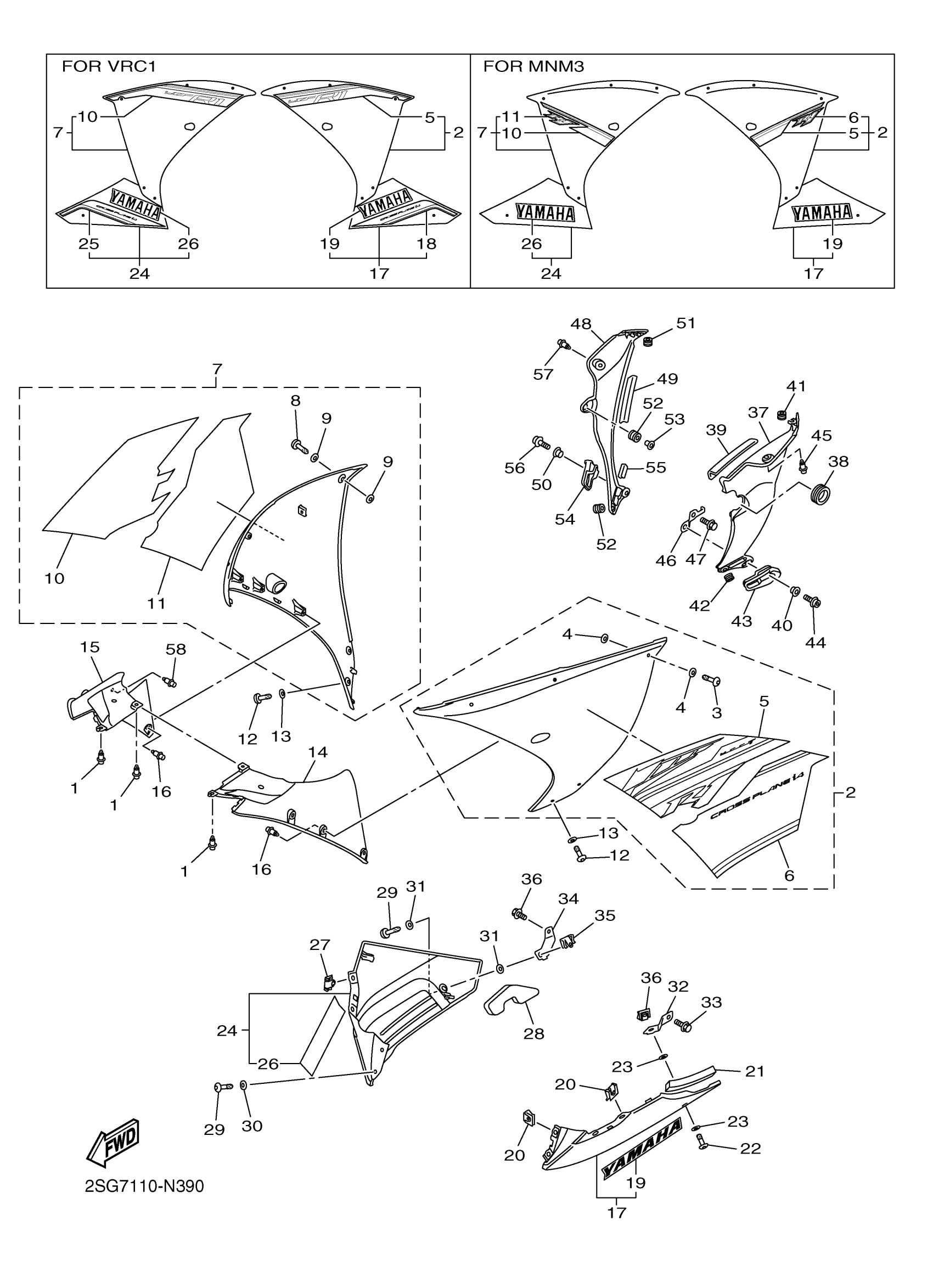

Yamaha YZFR1ER (YZFR1) 2SG71 2014 COWLING 2 Diagram
#
2
PANEL ASSY 1
14B-W283U-2E-P0
Unavailable
5
GRAPHIC 1
1KB-28391-B0-00
Unavailable
6
EMBLEM 3D
1KB-2839B-01-00
Unavailable
7
PANEL ASSY 2
14B-W283V-2E-P0
Unavailable
10
GRAPHIC 2
1KB-28392-B0-00
Unavailable
11
EMBLEM 3D
1KB-2839B-01-00
Unavailable
17
UNDER COVER COMP. 1
14B-W2838-J0-P1
Unavailable
19
EMBLEM, YAMAHA
99247-00240-00
Unavailable
20
PLATE, SPRING
5PW-2177L-01-00
Unavailable
21
DAMPER, PLATE
90520-30004-00
Unavailable
24
UNDER COVER COMP. 2
14B-W2839-J0-P1
Unavailable
26
EMBLEM, YAMAHA
99247-00240-00
Unavailable
27
PLATE, SPRING
5PW-2177L-01-00
Unavailable
28
DAMPER
14B-28371-10-00
Unavailable
32
BRACKET 1
14B-2836A-00-00
Unavailable
33
BOLT, FLANGE
95817-06016-00
Unavailable
34
BRACKET 2
14B-2836E-00-00
Unavailable
35
BOLT, FLANGE
95817-06016-00
Unavailable
36
PLATE, SPRING
5PW-2177L-01-00
Unavailable
37
PANEL, INNER 3
14B-2836M-10-P0
Unavailable
38
DAMPER, LOCATING 1
14B-2836T-00-00
Unavailable
39
DAMPER, PLATE
90520-05011-00
Unavailable
40
COLLAR
90387-08079-00
Unavailable
41
GROMMET
90480-08006-00
Unavailable
42
GROMMET(4FM)
90480-12596-00
Unavailable
43
STOPPER, RUBBER 1
14B-283C1-00-00
Unavailable
44
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
45
RIVET(4PH)
90269-07077-00
Unavailable
46
STAY 1
14B-28321-00-00
Unavailable
47
BOLT, FLANGE
95817-06012-00
Unavailable
48
PANEL, INNER 4
14B-2836N-10-P0
Unavailable
49
SEAL 1
3NU-21732-00-00
Unavailable
50
COLLAR
90387-08079-00
Unavailable
51
GROMMET
90480-08006-00
Unavailable
52
GROMMET(4FM)
90480-12596-00
Unavailable
53
COLLAR
90387-06159-00
Unavailable
54
STOPPER, RUBBER 2
14B-283C2-00-00
Unavailable
55
SEAL 5
4B5-2847F-00-00
Unavailable
56
BOLT, HEXAGON SOCKET HEAD
90110-06163-00
Unavailable
57
RIVET(4PH)
90269-07077-00
Unavailable
