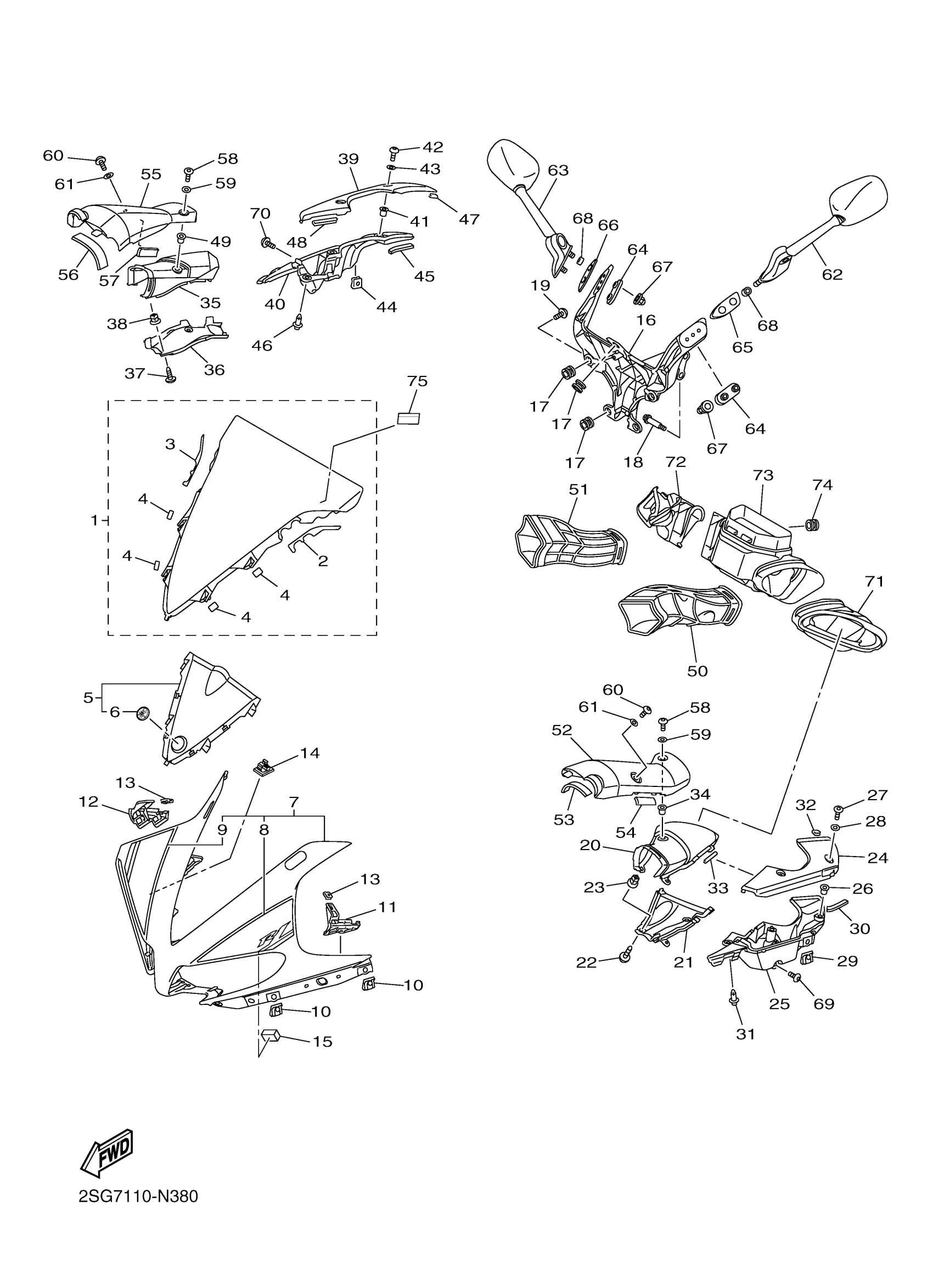

Yamaha YZFR1ER (YZFR1) 2SG71 2014 COWLING 1 Diagram

#

Description
Price

1

WINDSCREEN ASSY

14B-28380-40-00

$153.99

2

SEAL 1

14B-28428-10-00

Unavailable

3

SEAL 2

14B-28429-10-00

Unavailable

4

SEAL 2

4C8-21735-00-00

$6.99

5

PANEL ASSY

1KB-2830P-01-00

$62.99

6

TUNING FORK MARK

4KN-2836B-10-00

$18.49

7

BODY, FRONT UPPER 1

1KB-2835G-00-P0

$465.99

8

GRAPHIC, 12

2SG-2832K-00-00

Unavailable

9

GRAPHIC, 13

2SG-2832L-00-00

Unavailable

10

PLATE, SPRING

5PW-2177L-01-00

$6.99

11

STAY, SIDE 1

1KB-2831U-01-00

$7.99

12

STAY, SIDE 1

1KB-2832U-01-00

$8.99

13

NUT, SPRING

90183-050A6-00

$8.49

14

CLAMP

90464-16020-00

Unavailable

15

DAMPER, PLATE

90520-15010-00

$2.22

16

STAY 1

14B-28356-10-00

Unavailable

17

DAMPER

4XV-83513-00-00

Unavailable

18

BOLT, FLANGE

90105-08052-00

Unavailable

19

SCREW, ROUND TAPPING

90160-05006-00

Unavailable

20

DUCT 1

14B-2838N-00-P5

Unavailable

21

DUCT 3

14B-2838T-00-00

Unavailable

22

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

23

GROMMET

90480-08005-00

Unavailable

24

LID 1

14B-2839K-00-P5

Unavailable

25

BOX 3

14B-2838V-00-00

Unavailable

26

NUT(1KT)

90179-05523-00

Unavailable

27

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

28

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

29

PLATE, SPRING

5PW-2177L-01-00

$6.99

30

SEAL 4

J44-78248-00-00

Unavailable

31

RIVET(4PH)

90269-07077-00

Unavailable

32

DAMPER, PLATE

90520-01001-00

Unavailable

33

DAMPER, PLATE

90520-03005-00

Unavailable

34

NUT(1KT)

90179-05523-00

Unavailable

35

DUCT 2

14B-2838R-00-P5

Unavailable

36

DUCT 4

14B-2838U-00-00

Unavailable

37

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

38

GROMMET

90480-08005-00

Unavailable

39

LID 2

14B-2839L-00-P5

Unavailable

40

BOX 4

14B-2838W-00-00

Unavailable

41

NUT(1KT)

90179-05523-00

Unavailable

42

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

43

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

44

PLATE, SPRING

5PW-2177L-01-00

$6.99

45

SEAL 4

J44-78248-00-00

Unavailable

46

RIVET(4PH)

90269-07077-00

Unavailable

47

DAMPER, PLATE

90520-01001-00

Unavailable

48

DAMPER, PLATE

90520-03005-00

Unavailable

49

NUT(1KT)

90179-05523-00

Unavailable

50

DUCT 5

14B-2838J-01-00

Unavailable

51

DUCT 6

14B-2838P-01-00

Unavailable

52

PANEL, CONSOLE 1

14B-2837L-00-P5

Unavailable

53

DAMPER, 3

4C8-2112D-00-00

Unavailable

54

SEAL 1

2S3-2111D-00-00

Unavailable

55

PANEL, CONSOLE 2

14B-2837M-00-P5

Unavailable

56

DAMPER, 3

4C8-2112D-00-00

Unavailable

57

SEAL 1

2S3-2111D-00-00

Unavailable

58

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

59

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

60

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

61

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

62

REAR VIEW MIRROR ASSY (LEFT)

14B-26280-00-00

Unavailable

63

REAR VIEW MIRROR ASSY (RIGHT)

14B-26290-00-00

Unavailable

64

PLATE, MIRROR FITTING 1

4C8-26298-00-00

Unavailable

65

BASE, MIRROR (LEFT)

14B-2628N-00-00

Unavailable

66

BASE, MIRROR (RIGHT)

14B-2628R-00-00

Unavailable

67

NUT, CROWN(1FN)

90176-06055-00

Unavailable

68

COLLAR(J45)

90387-064T3-00

Unavailable

69

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

70

BOLT,HEX. SOCKET BUTTON

90111-05034-00

Unavailable

71

BOX, SIDE 1

14B-2846C-00-00

Unavailable

72

BOX, SIDE 2

14B-2846D-01-00

Unavailable

73

BOX, FRONT

14B-2845D-10-00

Unavailable

74

GROMMET(4FU)

90480-13567-00

Unavailable

75

LABEL, NOTICE WINDSHIELD 1

4B5-2815K-00-00

Unavailable
